Vacon nxp/c User Manual

CONTROL KEYPAD vacon • 77
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
9

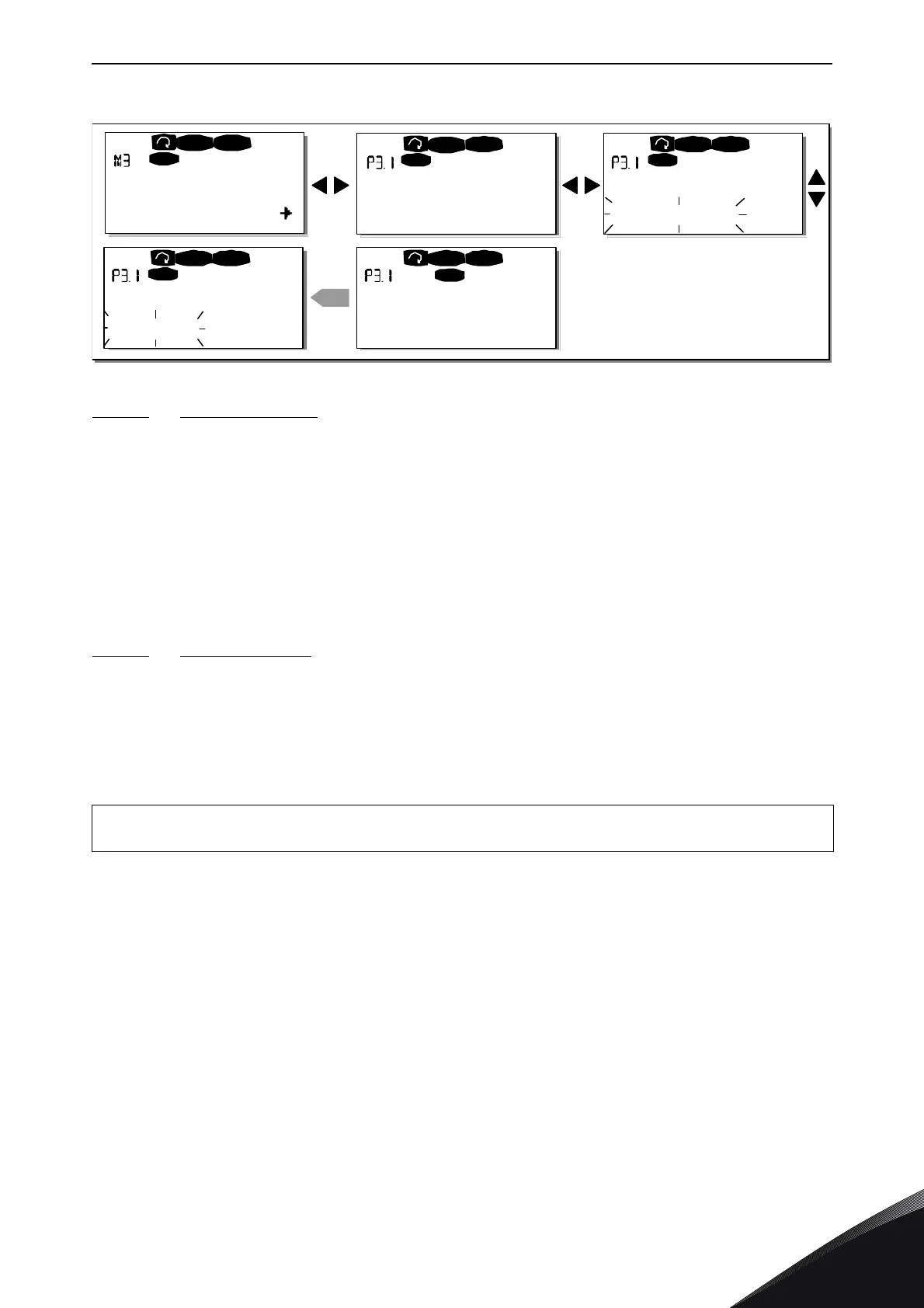

Figure 47. Selection of control place
9.3.3.2
Keypad reference
The keypad reference submenu (P3.2) displays and allows the operator to edit the frequency
reference. The changes will take place immediately. This reference value will not, however,
influence the rotation speed of the motor unless the keypad has been selected as source of
reference.
NOTE! The maximum difference in RUN mode between the output frequency and the keypad
reference is 6 Hz.
See Figure 46 for how to edit the reference value (pressing the
Enter button is not, however,
necessary).
9.3.3.3 Keypad direction
The keypad direction submenu displays and allows the operator to change the rotating direction of
the motor. This setting will not, however, influence the rotation direction of the motor unless the
keypad has been selected as the active control place.
See Figure 47 for how to change the rotation direction.
NOTE! Additional information on controlling the motor with the keypad is given in Chapters 9.2.1
and 10.2.
P1

P4
READY
I/Oterm
REA D Y
I/ Ote rm
READY
I/ Ote rm
READ Y
I/ Ote rm
enter
REA D Y
Keypad
STOP
STOP
STOP
STOPSTOP
Keypad control
Control Place
I/O Remote
Control Place
I/O Remote
Control Place
Keypad
Control Place
Keypad
11530_uk
