Vacon OPTA2 User Manual

Descriptions of VACON® option boards vacon • 51
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3

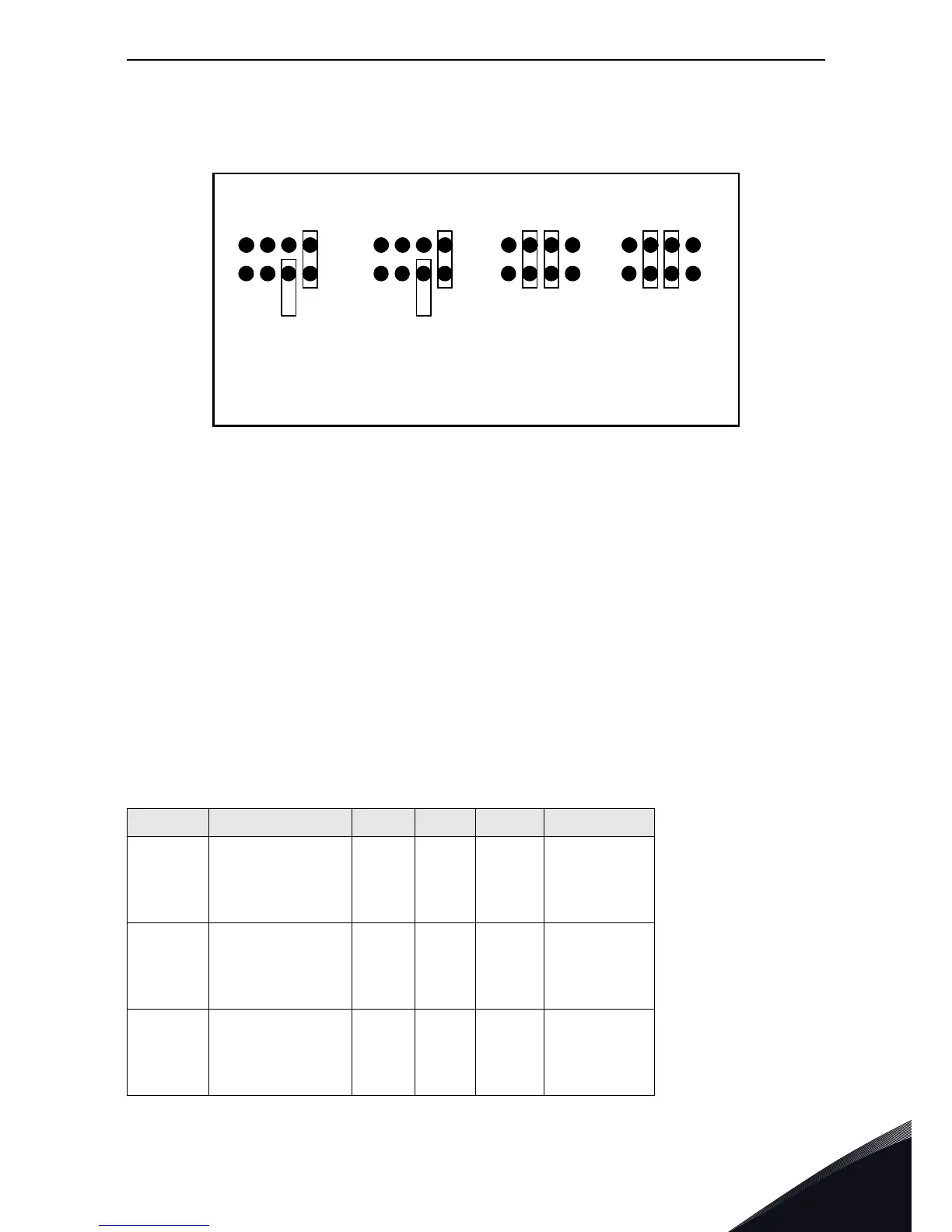

Jumper selections
OPTAN board parameters
J1 (AI1), J2 (AI2) Analog Input Mode 0 ... 10 D (default)
J1 (AI1), J2 (AI2) Analog Input Mode –10 ... +10V CD
J1 (AI1), J2 (AI2) Analog Input Mode 0 ... 20mA AB
J3 (AO1), J4 (AO2) Analog Output 0 ... 10V BC (default)
J3 (AO1), J4 (AO2) Analog Output –10 ... +10V CD
J3 (AO1), J4 (AO2) Analog Output 0 ... 20mA AB
Table 21. OPTAN board-related parameters
Number Parameter Min Max Default Note
7.1.1.1 AI1 mode 1 5 3
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
7.1.1.2 AI2 mode 1 5 3
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
7.1.1.3 AO1 mode 1 5 3
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
J1 J2 J3 J4
ABCD ABCD ABCD ABCD
7272.emf
