8000026412_01 Air/flue pipe installation manual 33

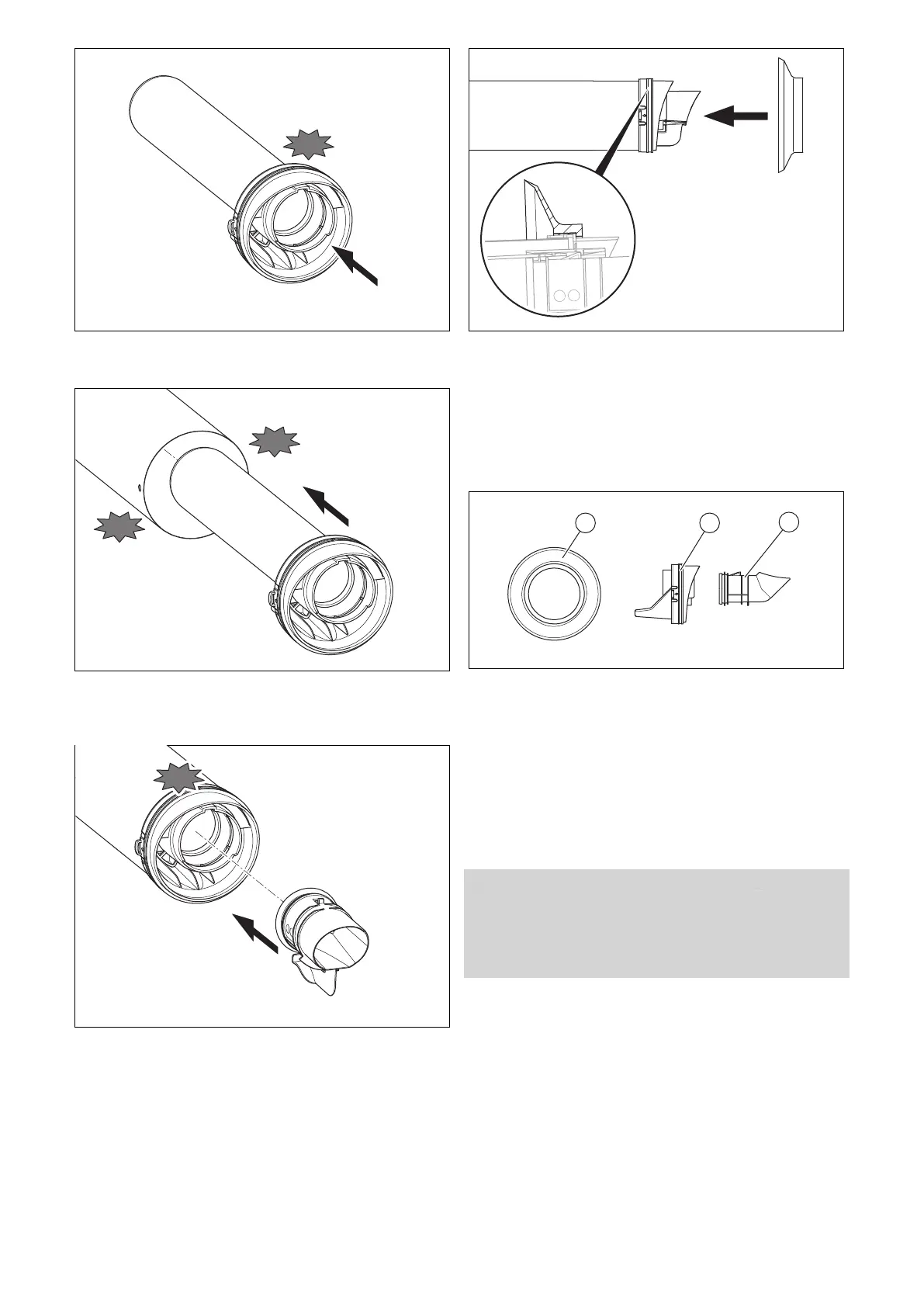

4. Slide the new terminal piece onto the flue pipe until you
hear the terminal piece click into place.
5. Slide the flue pipe with the new terminal piece into
the air pipe until you hear the terminal piece click into
place.
6. Slide the end pipe onto the terminal piece until you
hear the end pipe click into place.
7. Install the collar on the wall duct.
8. Install the horizontal wall duct (→ Section 5.10) or
(→ Section 5.11) or (→ Section 5.13).
9. Connect the product. (→ Section 5.12)
5.14.2 Deflector set – 0010039343 / ...45
5.14.2.1 Scope of delivery
1 Collar (for 0010039343
only)
2 Terminal piece (for
0010039343 only)
3 Deflector
– Deflector set, DN 60 PP, black (article number
0010039343)
– Deflector set, DN 60, PP, white (article number
0010039345)
5.14.2.2 Installing the deflector set
Condition: Replacing the deflector set (change of colour)
▶ In the event of a change of colour, replace the terminal
piece, including the collar (→ Section 5.14.1.2).
▶ Install the deflector, instead of the end pipe, on the ter-
minal piece.
