Installation and maintenance instructions ecoTEC plus 0020116700_01 19
4Installation
4.6 Wall-mounting the boiler
a
Danger!
Risk of death if the load-bearing capacity
of the fixing elements used is insuffi-
cient!
If the fixing elements or wall do not have
sufficient load-bearing capacity, the boiler
can come loose and fall down. This may
also cause leaks in the gas line, which is
potentially fatal.
> When fitting the boiler, ensure that the
fixing elements and the wall have a suffi-
cient load-bearing capacity.
> Check the quality of the wall.
1
3
2
4.5 Wall-mounting the boiler
> Mount the hanging bracket (1) on the wall using the wall
plugs and screws (2) provided with the unit.
> Hang the boiler (3) on the hanging bracket from above
using the hanging bracket.
4.7 Removing/fitting the front casing
2
1

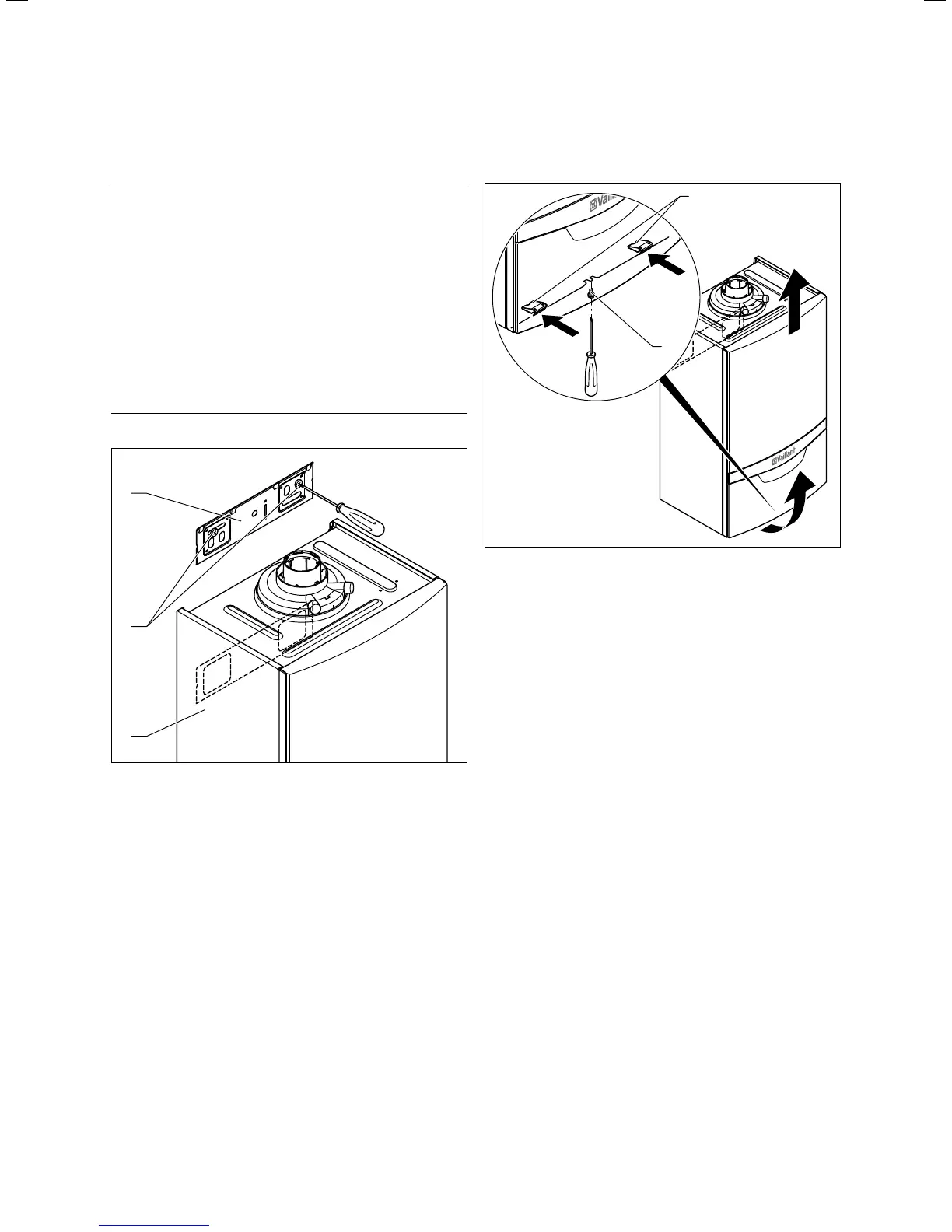

4.6 Removing the front casing
Removing the front casing
> Loosen the screws (1) on the bottom of the boiler using a
screwdriver.
> Push in both retaining clips (2) on the bottom of the
boiler so that the front casing is released.
> Pull the front casing forwards using the bottom edge.
> Lift the front casing upwards from the bracket.
Fitting the front casing
> Place the front casing on the upper brackets.
> Push the front casing onto the boiler so that until both
retaining clips (2) snap into place at the front casing.
> Fasten the front casing by screwing in the bolt (1) on the
underside of the boiler.
