4.8 Removing/fitting the side section
You can also remove a side section for installation or main-
tenance purposes.
b
Caution.
Risk of damage caused by mechanical
tension.
Removing both side sections may cause
mechanical distortion in the boiler, which
can cause damage to the piping and poten-
tially result in leaks.
> Always only remove one side section,
never both side sections at the same
time.
1.
3.
4.
2.
4.7 Removing/fitting the side section
b
Caution
Risk of damage to the side section.
Unscrewed side sections that are merely
suspended from the back wall can fall
down.
> Hold onto the side section when you are
unscrewing it, and always remove it from
the boiler.

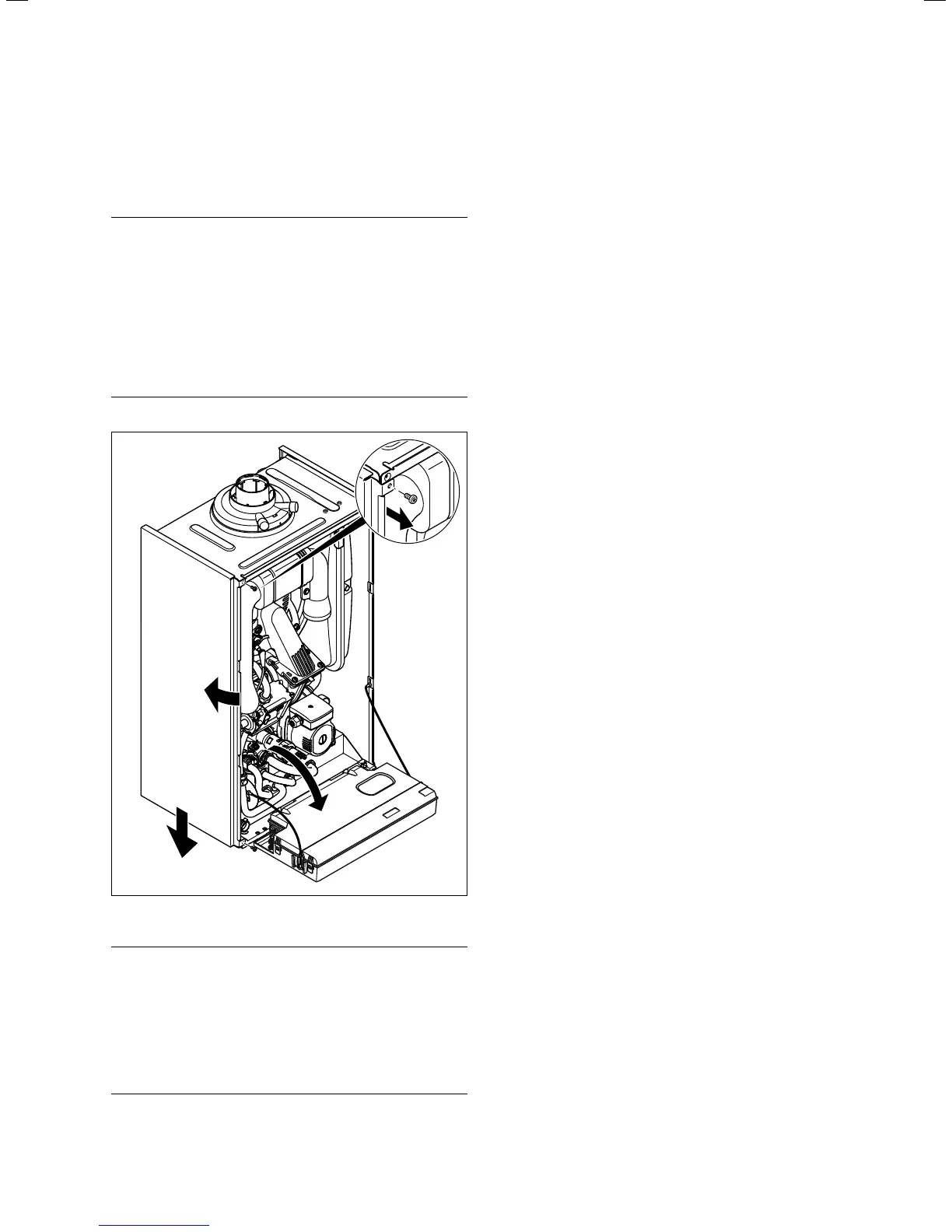

> Unhook the restrictor strap (1.) of the electronics box at
the required side.
> Unscrew the two screws (2.) from the top and bottom of
the side section.
> Hold onto the side section (3.) when doing this.
> Swivel the side section outwards and remove it from
below by pulling it downwards (4.).
