Vaillant ecoTEC plus SERIES Installation And Maintenance Instructions

Operation
38 Installation and maintenance instructions ecoTEC plus 0020116700_01
9
Target flow temp.
Appliance config.
DHW temperature
Comfort mode
Back Select
Comfort operation
Comfort on
Cancel Ok
Appliance config.
Testprogramme
Diagnosis menu
Installer level
Back Select
Appliance config.
Start inst. assistant
Diagnosis menu
Installer level
Back Select
Auxiliary relay
Appliance config.
DHW temperature
Comfort mode
Back Select
Auxiliary relay
Appliance config.
Accessory relay 1
Comfort mode
Back Select
Auxiliary relay
Appliance config.
Accessory relay 2
Accessory relay 1
Back Select
Heating partial load
Appliance config.
Accessory relay 2
Accessory relay 1
Back Select
Heating partial load
Appliance config.
Accessory relay 2
Contact data
Back Select
Heating partial load
Appliance config.
Factory setting
Contact data
Back Select
D.026
Zusatzrelais
externe Pumpe
Cancel Ok
D.026
Auxiliary relay
Circulation pump
Back
D.027
Zubehörrelais 1
externe Pumpe
Cancel Ok
D.027
Accessory relay 1
Circulation pump
Back
D.028
Zubehörrelais 2
externe Pumpe
Cancel Ok
D.028
Accessory relay 2
Circulation pump
Back
D.000
Heating partial load
0
Cancel Ok
D.001
Pumpennachlauf
Heizung
0
Back
D.000
Heating partial load
auto
Back
Contact data
Phone number
Back
To start the
Competent Installer
press OK
Cancel Ok
D.096
Reset to
factory settings?
Cancel Ok

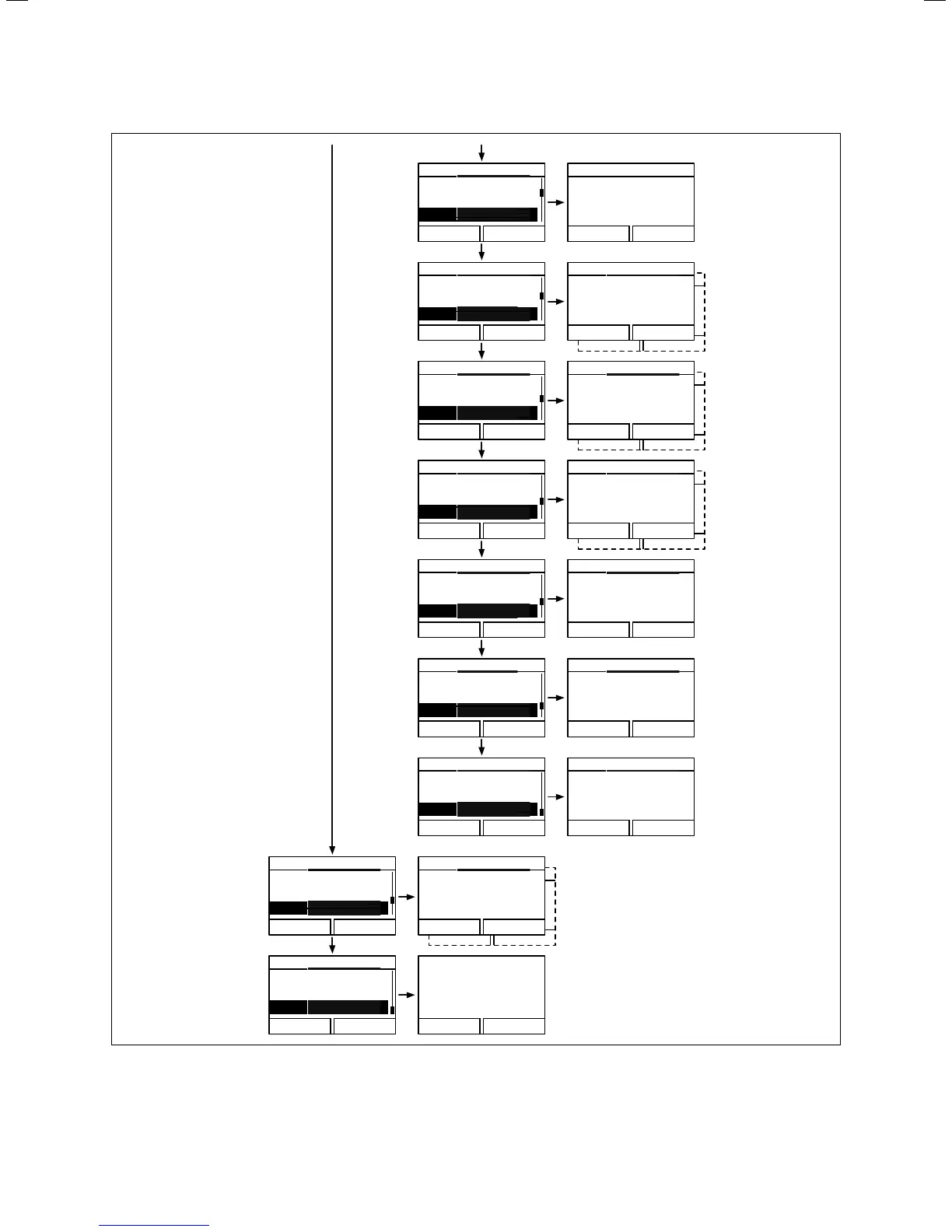

9.2 Overview of the menu structure for installer level part 2
