Basic Features and Options
- Utilizes the Vaisala MPS1 multiparameter sensor with Vaisala’s
BAROCAP® and DRYCAP® technologies.
- Measurement ranges of measured parameters:
- Dewpoint -60 ... +30 °C (-76 ... +86 °F) T
d
- Pressure, absolute 1 ... 10 bar (14.5 ... 145 psi)
- Temperature -40 ... +80 °C (-40 ... +176 °F)
- Two analog output channels, selectable from 0 … 20 mA / 4 ... 20 mA
and 0 … 5 V / 0 … 10 V.
- Digital output: non-isolated RS-485.
- Easy verification of dewpoint measurement with the Vaisala
DRYCAP® Hand-Held Dewpoint Meter DM70.
- Optional accessories:
- USB service cable for configuration and calibration.
- Loop-powered display.
- Various sampling cells with different installation options.
1109-029

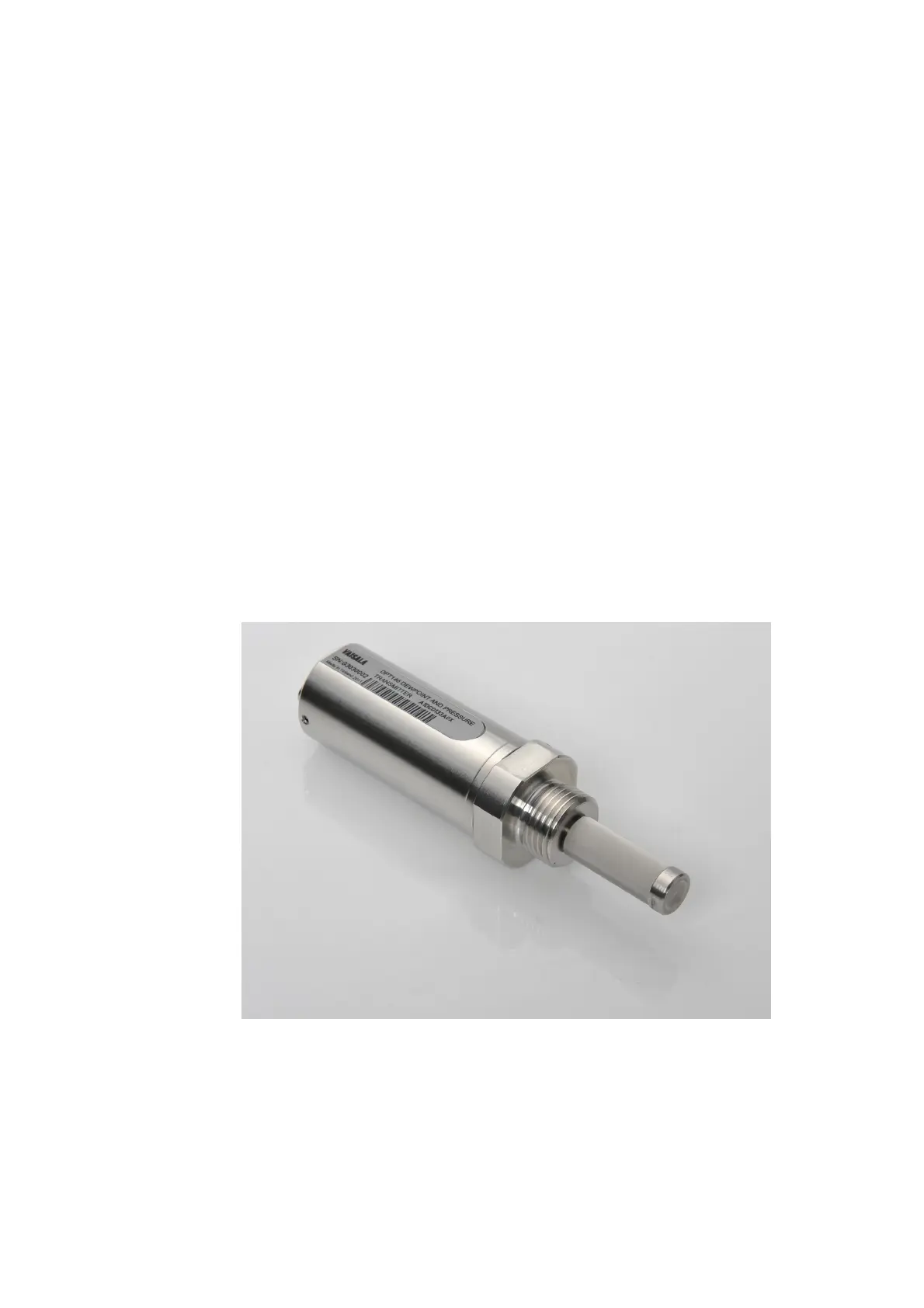

Figure 1 DPT146 with ISO G1/2” Thread
