Wiring
CAUTION
The power supply lines are internally connected. You can use either one
of them, but do not connect more than one supply voltage in permanent
installations. Temporary simultaneous use with the USB service cable or
DM70 handheld dewpoint meter (which also provide power) is OK.

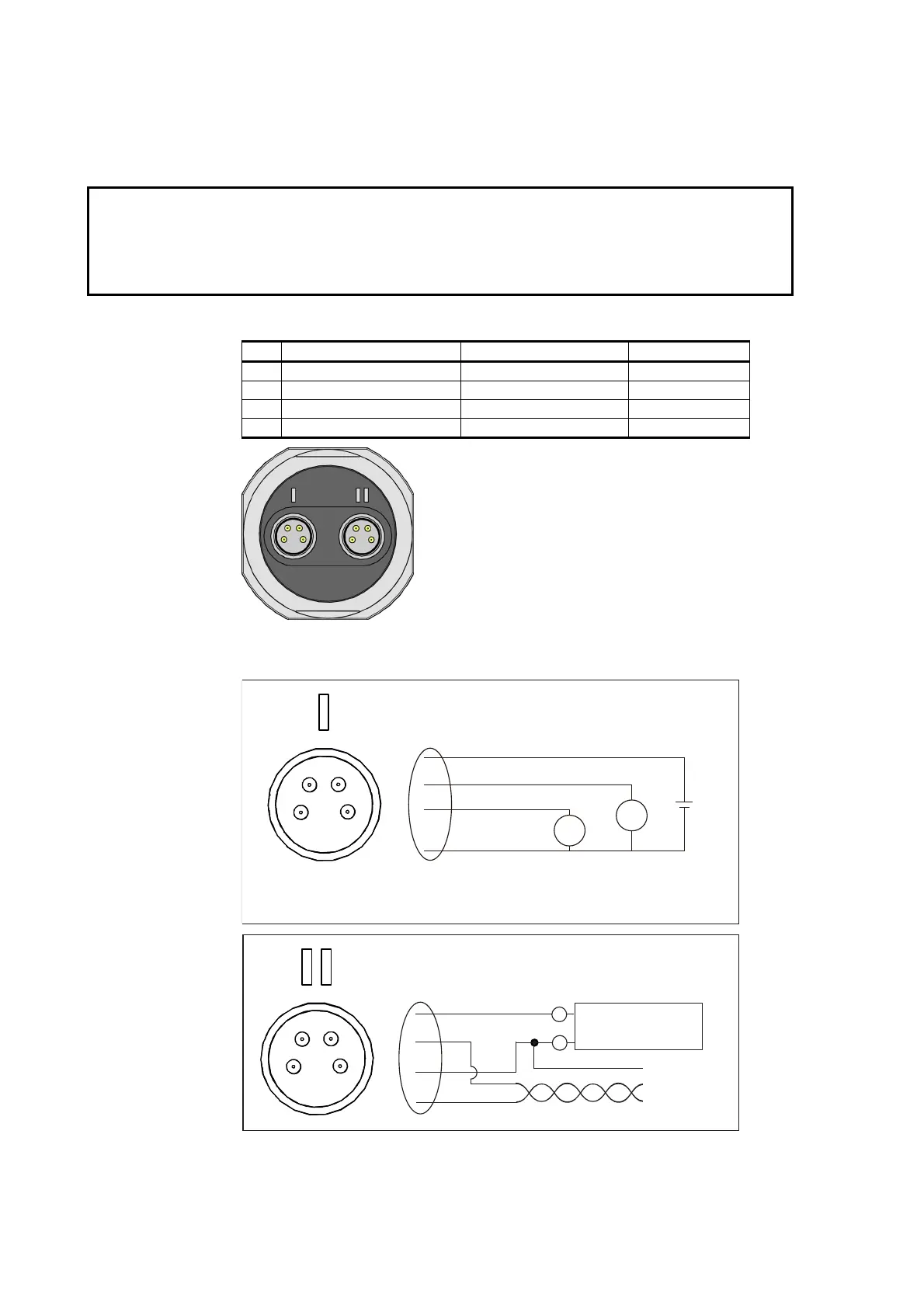

Table 4 Connector Pinouts
Pin Connector I Connector II Wire color
1 VDC supply+ VDC supply+ Brown
2 Ch1+ RS-485 D0- White
3 GND GND Blue
4 Ch2+ RS-485 D1+ Black
1109-034
Figure 11 Connectors I and II
＋
−
1 = VDC+
Vs
3=GND
4=CH2+
2=CH1+
V/mA
V/mA
15 ... 28 VDC (V out)
21 ... 28 VDC (mA out)
Vs =
2
4
13
15 ... 28 VDC
RS-485 +
RS-485 -
GND
+
-
1
2
3
4
2
4
13
1109-035, 1109-036
Figure 12 Connector Pinout
