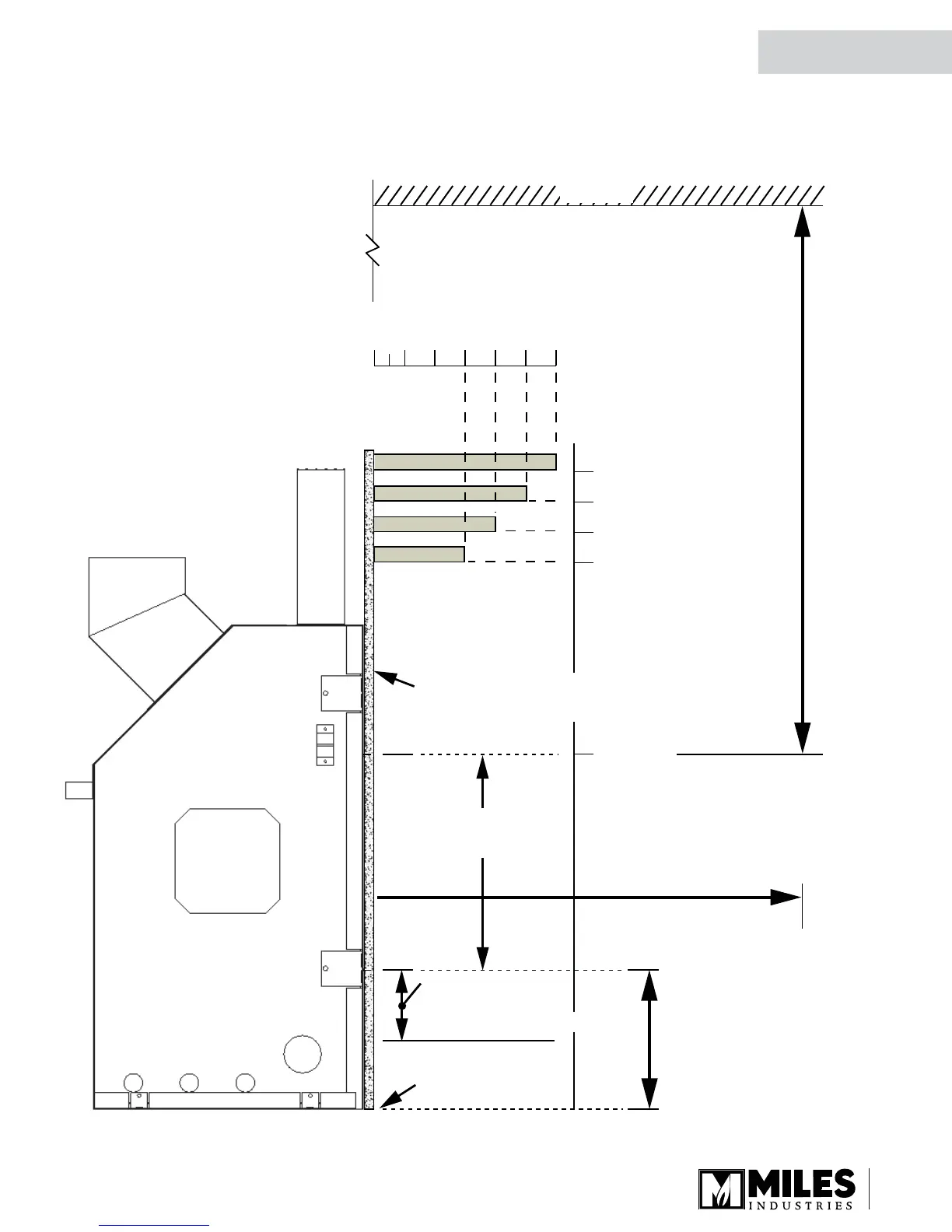

Valor L2 SERIES - Mantel and Hearth Clearances; COMBUSTIBLE MANTEL-LEFT SIDE VIEW

23
Bottom of Unit
0 2” 4” 6” 8” 10” 12”
Face of 1/2” thick
non-combustible
cement board
Do not put
furniture or objects
within 36” (914 mm)
of front of appliance
Mantel Projection
(from Face of Cement Board)
Mantel
Height
(from
Bottom
of Unit)
Fireplace
Opening
Ceiling
24” Min. to Ceiling
44”
42”
40”
38”
23-7/8”
9-3/8”
4” minimum to
combustible or
non-combustible hearth
Mantel & Hearth Clearances
Combustible Mantel—Left Side View
QUALIFIED
INSTALLER
