42
Top panel
support
bracket

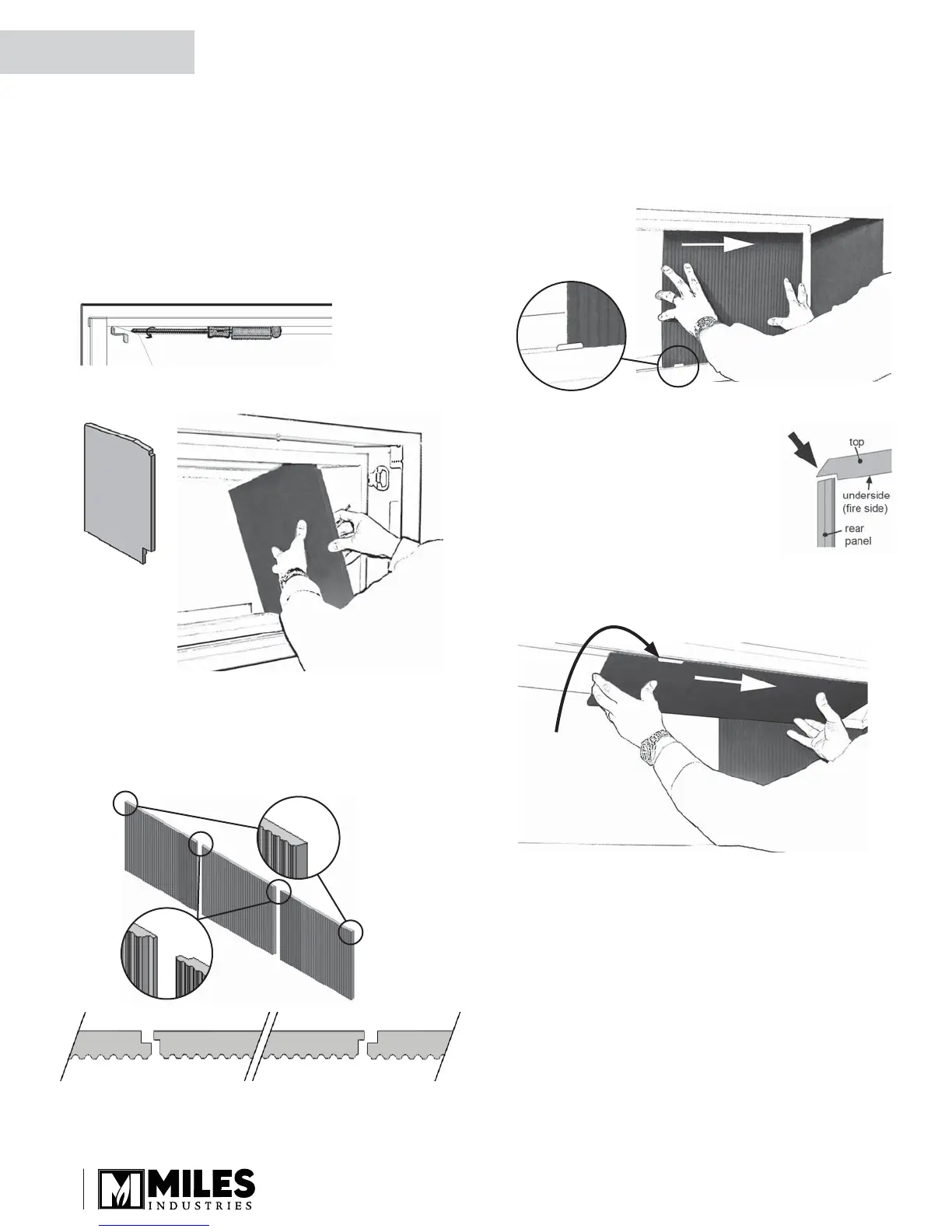

Install Liners
The liners install in the manner outlined below with the
exception of the 1725RGL Refl ective Glass Liners—
see instructions supplied with the liners.
Unpack the liner panels carefully.
1. Inside the fi rebox, on the top of each side, release
the screw of the side panel anchors (one per side)
just enough to allow them to rotate.
2. Place the right end panel against the right wall of
the fi rebox.
3. The rear panel is supplied in three sections which
are fi tted into each other. Two of the sections are
identical. Their step edges go towards the middle to
fi t into the middle section.
Place the panel’s right section on the ledge above
the ports of the rear of the fi rebox. The section sits
on the ledge behind the tabs, with its plain edge on
right side; slide it behind the right side panel.
4. The top panel is supplied in two
identical sections. The top of the
panel is beveled and the ‘fi re side’ is
straight at the front and notched at
the back. When installed, the panel
rests on the top of the rear and side
panels. In the front, it rests on the
top panel support bracket located
inside the front edge of the fi rebox.
Position and slide top panel into corner.
5. Carefully position, lift and slide second section of the
top panel on top of the fi rst.
Rear panel sections—top view
Installation
QUALIFIED
INSTALLER
To Next Page
