Valve Assembly
Manifold Pressure
Adjustment behind
Plastic Cap
Control Valve
Receiver
Window
Flexible
connector
supplied
with unit
Appliance front
outer casing
Manifold
Test
Pressure
Valve Inlet
Pressure
Pressure Testing
Pressure test the supply line for leaks.
The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply pip-
ing system at test pressures equal to or less than 1/2
psig (3.5 kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damages and void the warranty. Consult your dealer in
case of damages.
Pressure Test Points
The minimum supply pressure is given in the section
Specifi cations of this manual—page 20.
All piping and connections must be tested for leaks af-
ter installation or servicing. All leaks must be corrected
immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-off valve.
• Test for leaks by applying a liquid detergent or soap so-
lution to all joints. Bubbles forming indicate a gas leak.
Never use an open fl ame to check for leaks.
Correct any leak detected immediately.

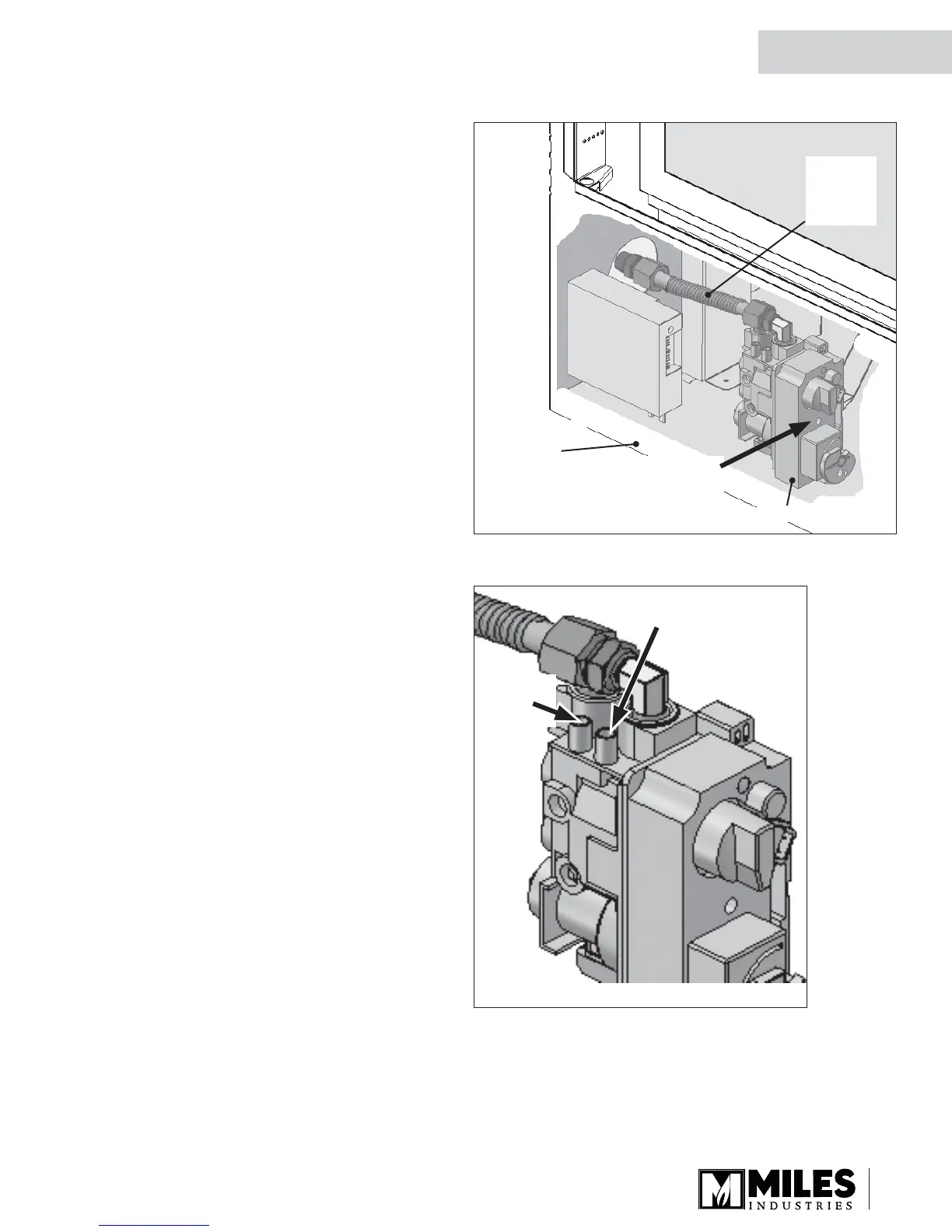

The pressure test tapping locations are shown in the
fi gure at right. An internal regulator within the valve con-
trols the burner manifold pressure. The correct pressure
range is shown in the table in section Specifi cations of
this manual on page 20. The pressure check should be
made with the burner alight and at its highest setting.
See Lighting Instructions section for full operating details
on page 17.
