Window frame
Bottom railing
Section Views
Refi t Window

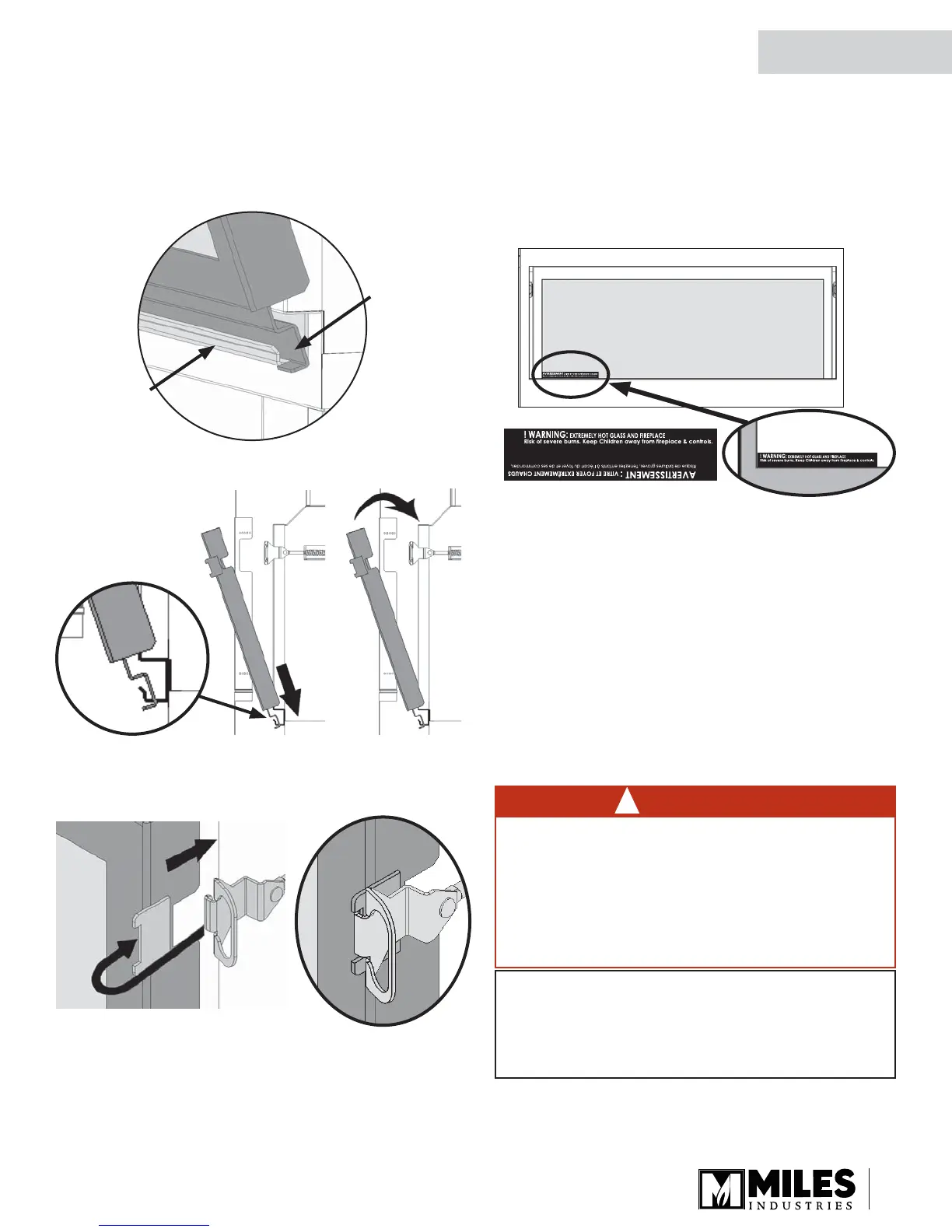

1. To refi t the window, place it in its bottom railing.
Ensure there is no glass or vermiculite
particles in the bottom railing.
2. Push the top of
the window frame
against the
fi rebox.
3. While you hold it, pull the side levers back into the
window brackets on each side.
Installation
DANGER
To ensure a safe operation, verify that the levers
are hooked properly to the window tabs; then,
pull out the top of the window and release it to
insure the springs return it.
Also, double-check that the bottom of the
window frame is correctly installed in its the
bottom railing.
!
Failure to install window correctly can damage
components, cause overheating resulting in
dangerous conditions. Damage caused by
incorrect window installation is not covered
by the Valor warranty.
4. Apply light hand pressure against the window frame
sides to bed-in the window seal.
5. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
Hot Glass Warning Plate
QUALIFIED
INSTALLER
