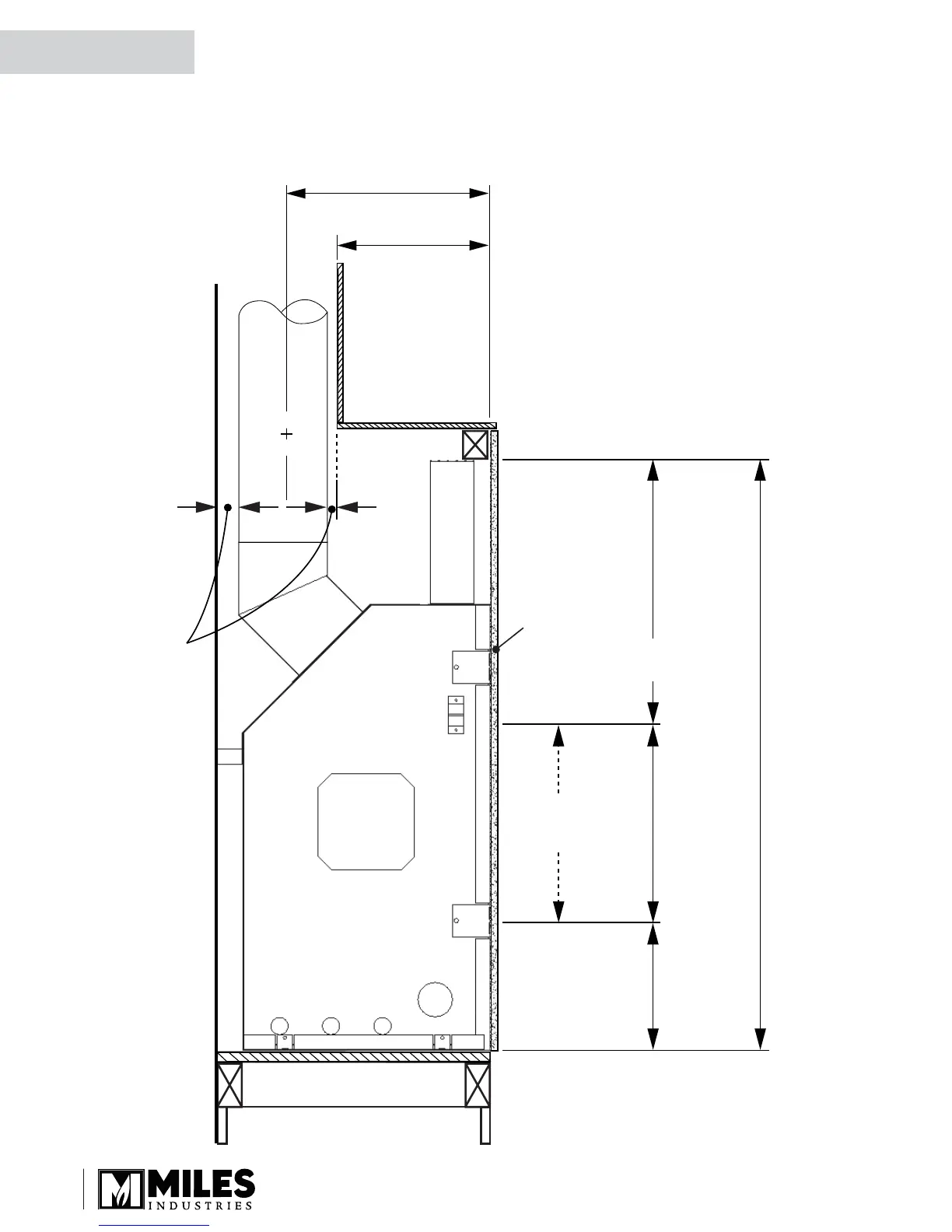

Valor L2 SERIES - Framing with Partial Shelf; PARTIAL SHELF, TOP OUTLET

26
43” (1093 mm) to underside of combustible cavity
Min. 1”
(25.4 mm)
clearance to
combustibles
around
vertical
vent pipe
Approx. 10-3/4”
(274 mm)
from back
surface of
wall finish to
front surface
of appliance
case w/no
vent offset
15-3/16”
(386 mm)
14-1/2”
(369 mm)
9-3/8”
(238 mm)
19-1/4”
(489 mm)
Fireplace
Opening
PARTIAL SHELF, top outlet
1/2” thick
non-combustible
Cement Board
Framing with Partial Shelf—Top Outlet
Framing Requirements
