Value-Top VT-1104WL - LCD (Line Crossing Detection)

USER MANUAL

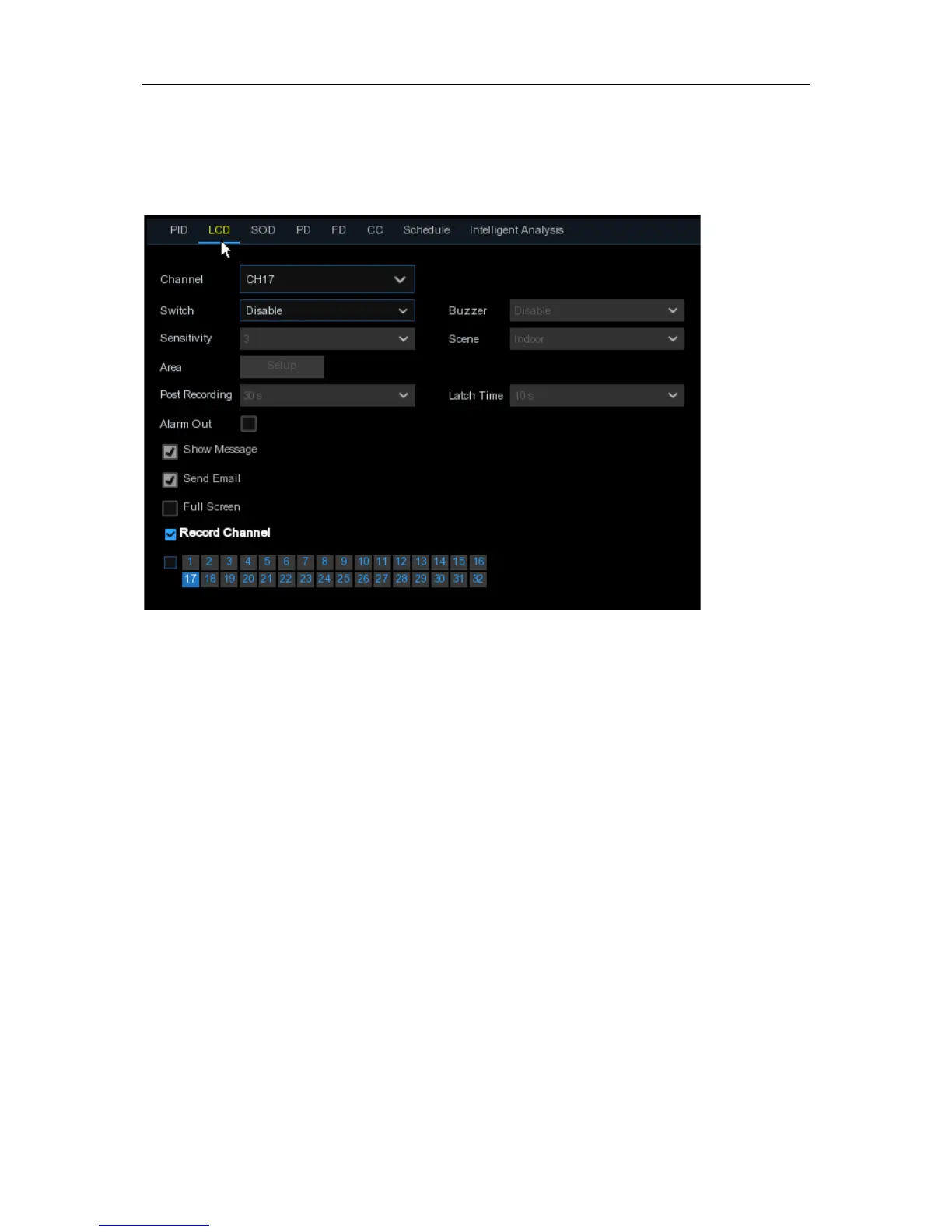

5.1.8.2 LCD (Line Crossing Detection)
Line Crossing Detection function detects people, vehicle or other objects which cross
a pre-defined virtual line, and some certain actions can be taken when the alarm is
triggered.
Channel
: Select the channel you want to configure
Switch
: Enable or disable the LCD function
Buzzer
: Disable or to active the buzzer to emit an alarm tone in 10, 20, 40 or 60 seconds when the
detection is triggered
Sensitive
: The sensitivity level is from 1 to 4. Higher sensitivity will be easier to trigger the
detection.
Scene
: Scene setting includes Indoor and Outdoor. Please choose the scene to match with the
place your camera installed.
Post Recording
: You can set how long after an event occurs that the DVR will continue to record.
Latch Time
: To configure the external alarm time when the detection is triggered.
Alarm Out
: If your DVR support to connect to external alarm device, you can set to emit an alarm
tone.
Show Message:
A letter “S” will be displayed on the screen when the LCD function is triggered.
Send Email:
If an alarm is triggered, an Email will be sent to your preset email account.
Full Screen:
When the detection is triggered, the channel will be enlarged into full screen.
Record Channel:
to select the channel(s) you want to record when a detection is triggered.
