USER MANUAL

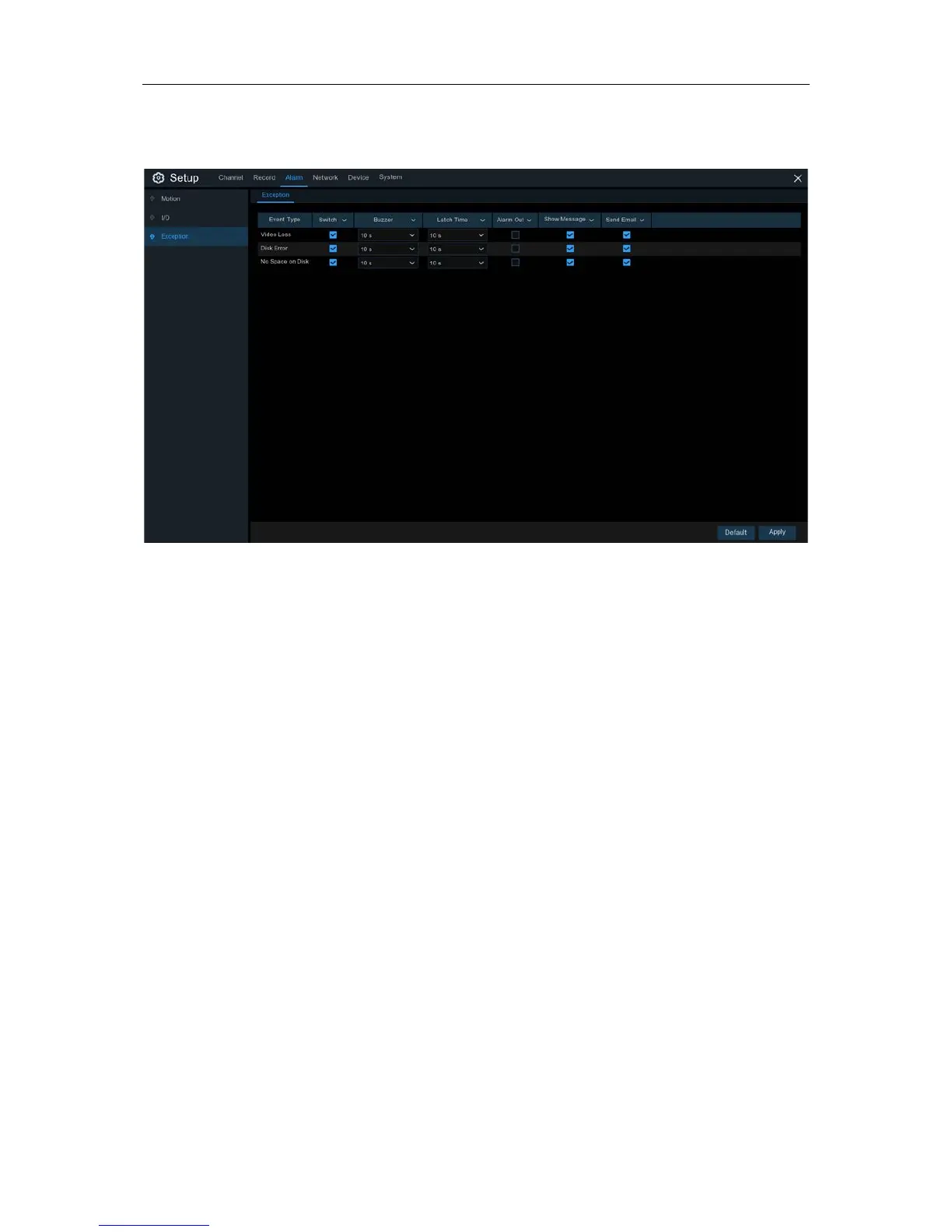

5.3.5 Exception
This menu allows you to set the type of events that you want the DVR to inform you.
Event Type
: Select the event type from below options:
-
No Space on Disk
: When an HDD is full.
-
Disk Error
: If the HDD is not detected properly.
-
Video Loss
: If a camera is not connected properly.
Switch
: Check the box to enable the monitoring of the event.
Buzzer
: Set the buzzer duration when the event occurs (Off/10s/20s/40s/60s). To disable buzzer,
select
OFF.
Latch Time
:
This is an optional function. Determine
how long the external alarm device to sound
(10s, 20s, 40s, 60s) if your DVR support to connect external alarm device.
Alarm Out
: This is an optional function. Click to enable the external alarm device to sound. This is
an optional function.
Show Message
: Check the box to display a message on the screen when No Space on Disk, Disk
Error, or Video Loss event happens.
Send Email
: Let the DVR to send you an auto-email when an event occurs.
50
