Technical description
2 Protection functions
2.14 Inverse time operation
VM59.EN001
VAMP 24h support phone +358 (0)20 753 3264
101
The operation time in this example will be 3.9 seconds. The
same result can be read from Figure 2.14.1-16.

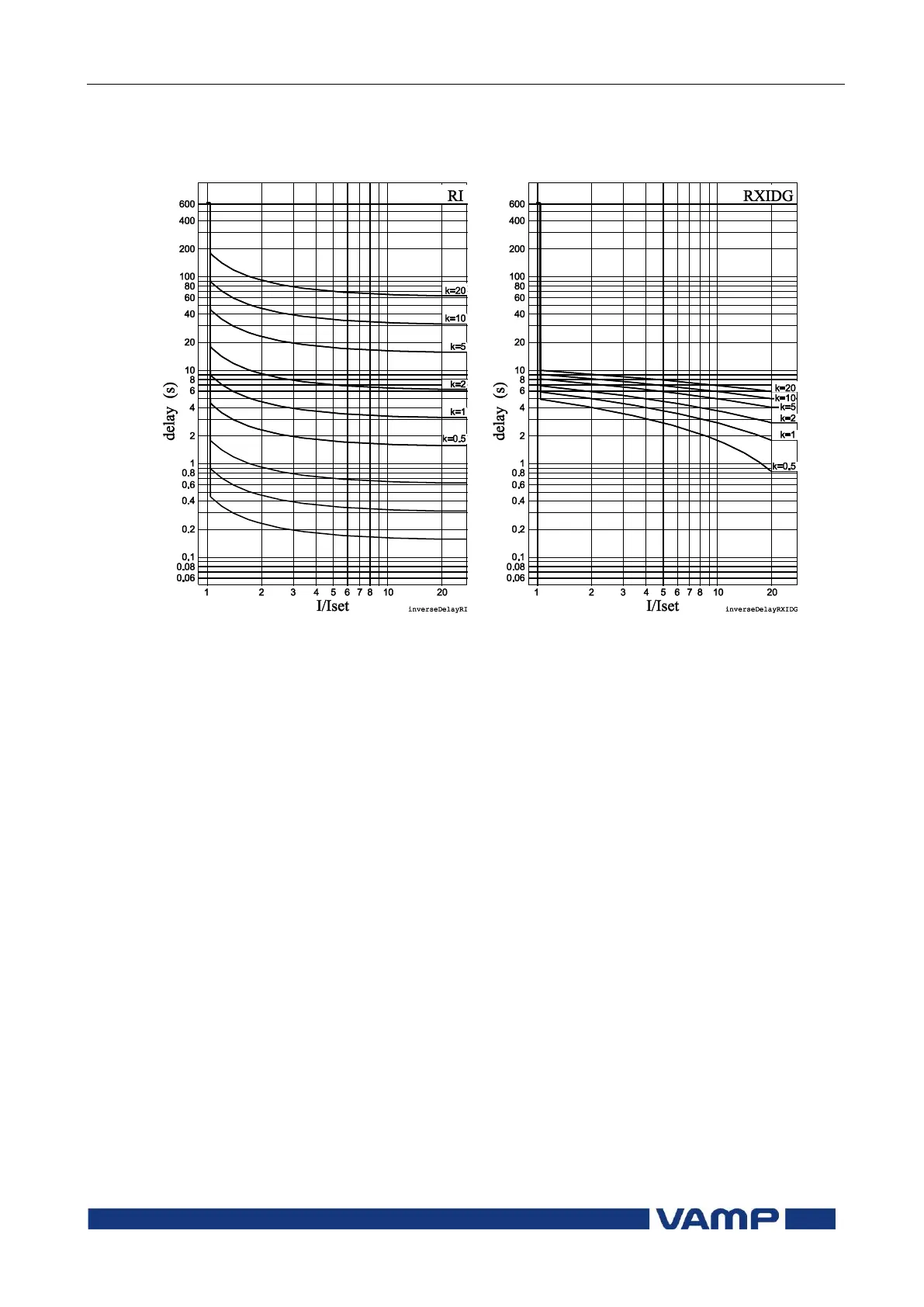

Figure 2.14.1-15 Inverse delay of type RI.
Figure 2.14.1-16 Inverse delay of type RXIDG.
