VARI❋LITE® - VL2402™ WASH LUMINAIRE USER’S MANUAL
94 17-Sept-01 02.9671.0001 C
Note: In some cases it is easier to slide bulkhead partially out of head assembly to
access color filters. To do this, use #2 Phillips screwdriver to turn captive screw one-
quarter turn and slide bulkhead upward. Disconnect motor connections as necessary.
3. Rotate wheel until required color filter is accessible at finger access cutout.
See Figure A-3.

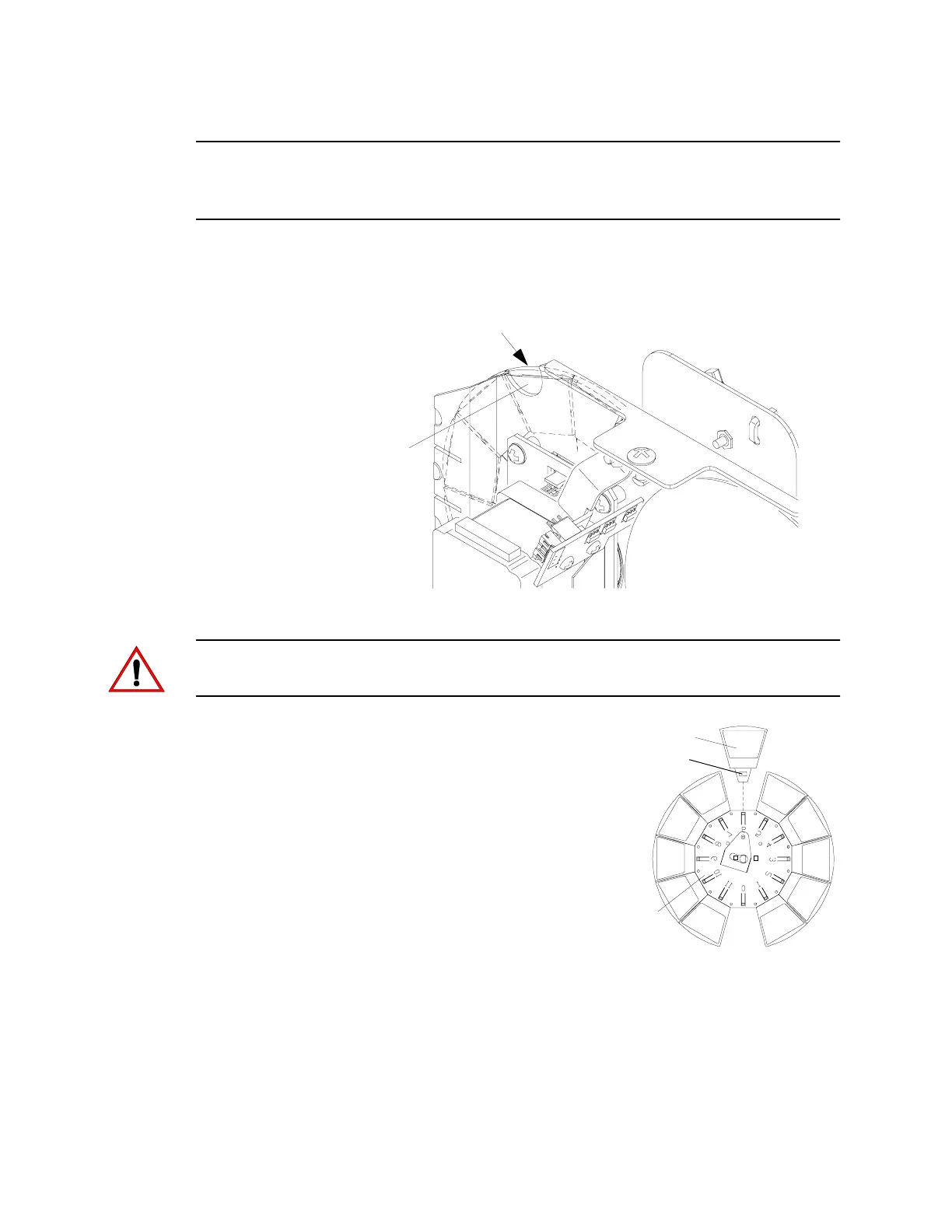

Figure A-3: Filter Replacement
CAUTION: Do not touch color filters with bare fingers. Wear cotton gloves or other
covering while replacing. Clean with glass cleaner and soft cloth if touched.
4. Using fingers, pull color filter out of
wheel.
5. Noting proper orientation of carrier
slot, insert new color filter into
position and push fully into place.
See Figure A-4.
6. Re-install bulkhead (if applicable)
and re-install removable cover.
Figure A-4: Filter Installation
Finger Access
Cutout
Color Wheel
Color
Filter Wheel
Color Filter
Carrier Slot
