Color Wheel
The color wheel is capable of rapid and timed
changes, as well as half and full frame positions.
The color wheel has 12 positions, one being open.It
offers partial frame control and various spin rates in
either direction.

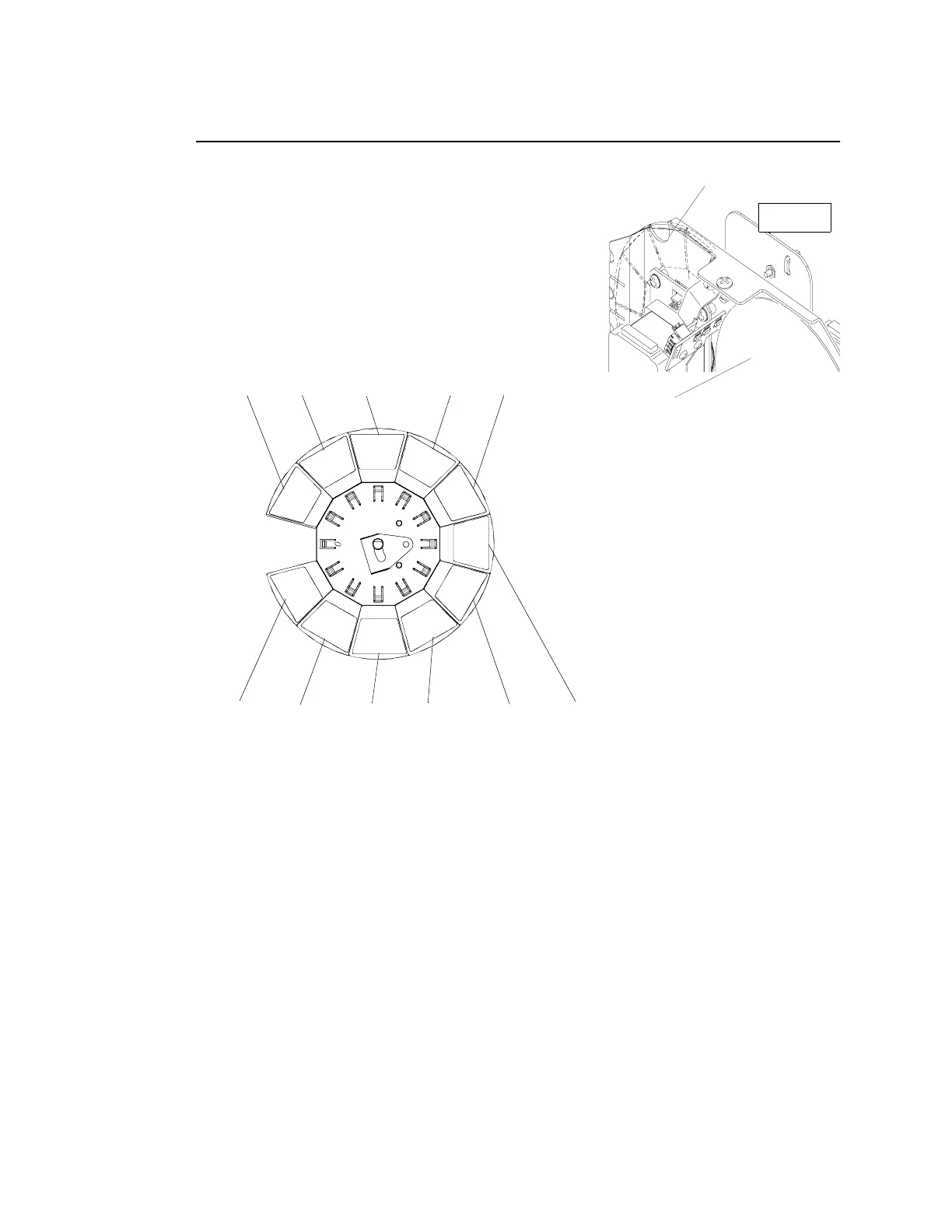

The following illustration shows the standard color
configuration.
Color Wheel
(Behind plate)
Color
Bulkhead
Color Mixing Mechanism
Light Red Light Blue Pink
GreenMagentaLavenderAmberOrangeUV
Blue Yellow
2
3
4
5
6
7
8
9
10
11
12
1
