Installation Procedures
Installing Lamp
In the event the lamp was packed separately during shipment, it will be necessary to
install in the luminaire before use.
WARNING: Ensure that power is removed from luminaire when installing lamp.
CAUTION: Wear cotton gloves or other covering while installing lamp. Touching
lamp glass with bare fingers will leave oil and may cause the lamp to explode or
reduce lamp life. If touched, use alcohol and cotton cloth to thoroughly clean glass
portion of lamp.

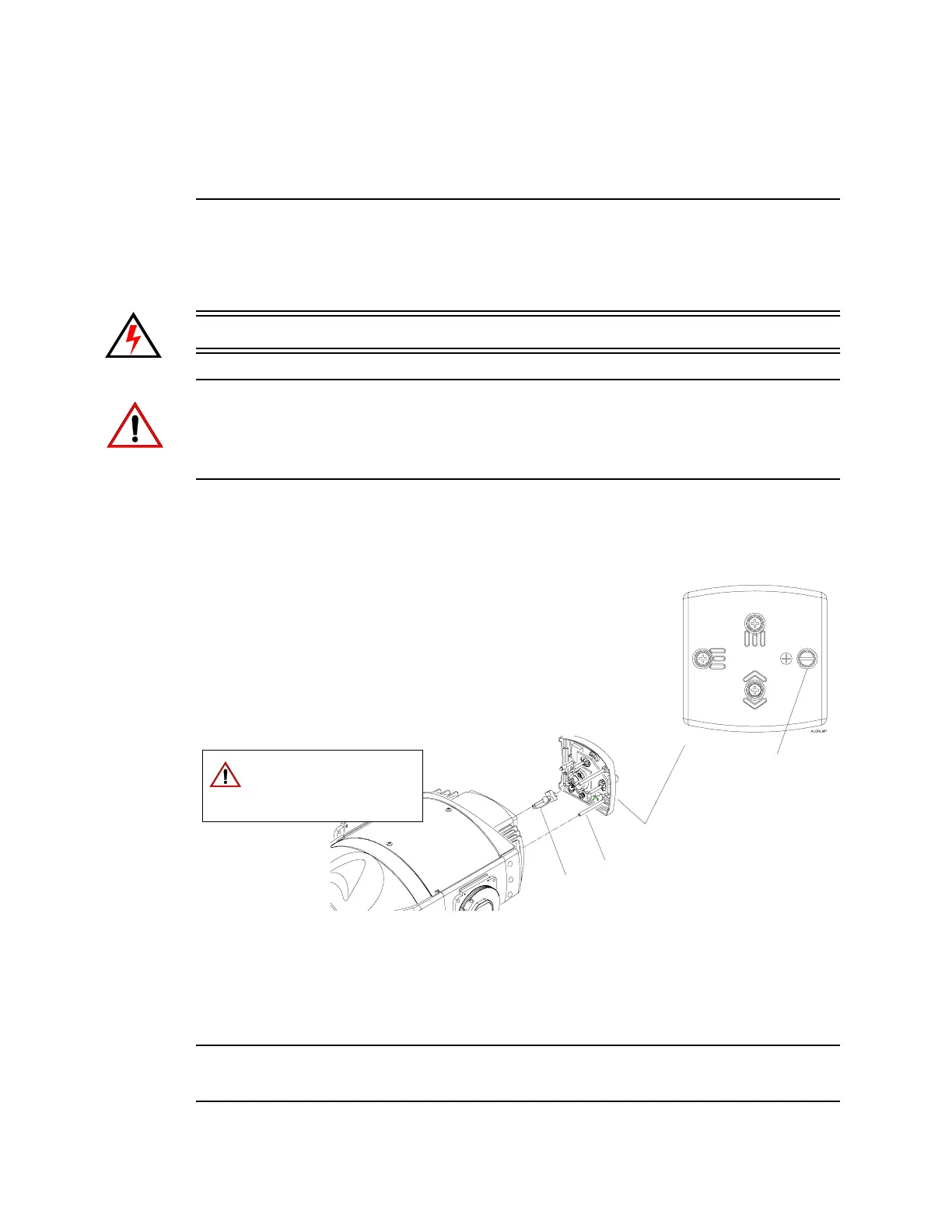

To install lamp:
1. Ensure power is removed from luminaire.
2. Remove lamp from shipping box.
3. At backcap, using slotted screwdriver
(or fingers) turn captive knob until
loose.
4. Slide backcap away from head assembly
(it will remain attached by tether and
lamp wires).
5. Install lamp by pressing into socket. Ensure lamp is fully seated in socket
and parallel to guide rods. (Lamp can be damaged when inserted through
reflector if not parallel to guide rods.)
6. Align guide rods in guide holes and slide backcap into head assembly. Re-
tighten captive knob.
Note: After installing a new lamp, it is necessary to adjust the beam for optimum per-
formance. This procedure is covered in “Powering Up” on page 21.
Captive Knob
Backcap Assembly
Guide Rod
Lamp
CAUTION:
Ensure lamp is seated
straight in socket before
re-installing backcap.
