Vari Lite VL2402 - Male Termination Connector; Loopback Connector

INSTALLATION : POWER AND DATA CABLING REQUIREMENTS
2
02.9671.0001 C 17-Sept-01 15
Male Termination Connector
When transferring software versions from luminaire to
luminaire, a male XLR termination connector is required at
the “master” luminaire. To construct your own connector, you
will need the following components:
• 5-pin, male XLR connector.
• Two 1/4W 5% 120 ohm resistors.
Note: A male termination connector is available as an accessory from Vari-Lite. See
“Accessories” on page 101.
Loopback Connector
When transferring software versions from luminaire to
luminaire, a loopback connector is required at the final
luminaire in the data link. To construct your own connector,
you will need the following components:
• 5-pin, male XLR connector.
• Two small segments of 22AWG wire.
Note: A loopback connector is available as an accessory from Vari-Lite. See “Acces-
sories” on page 101.

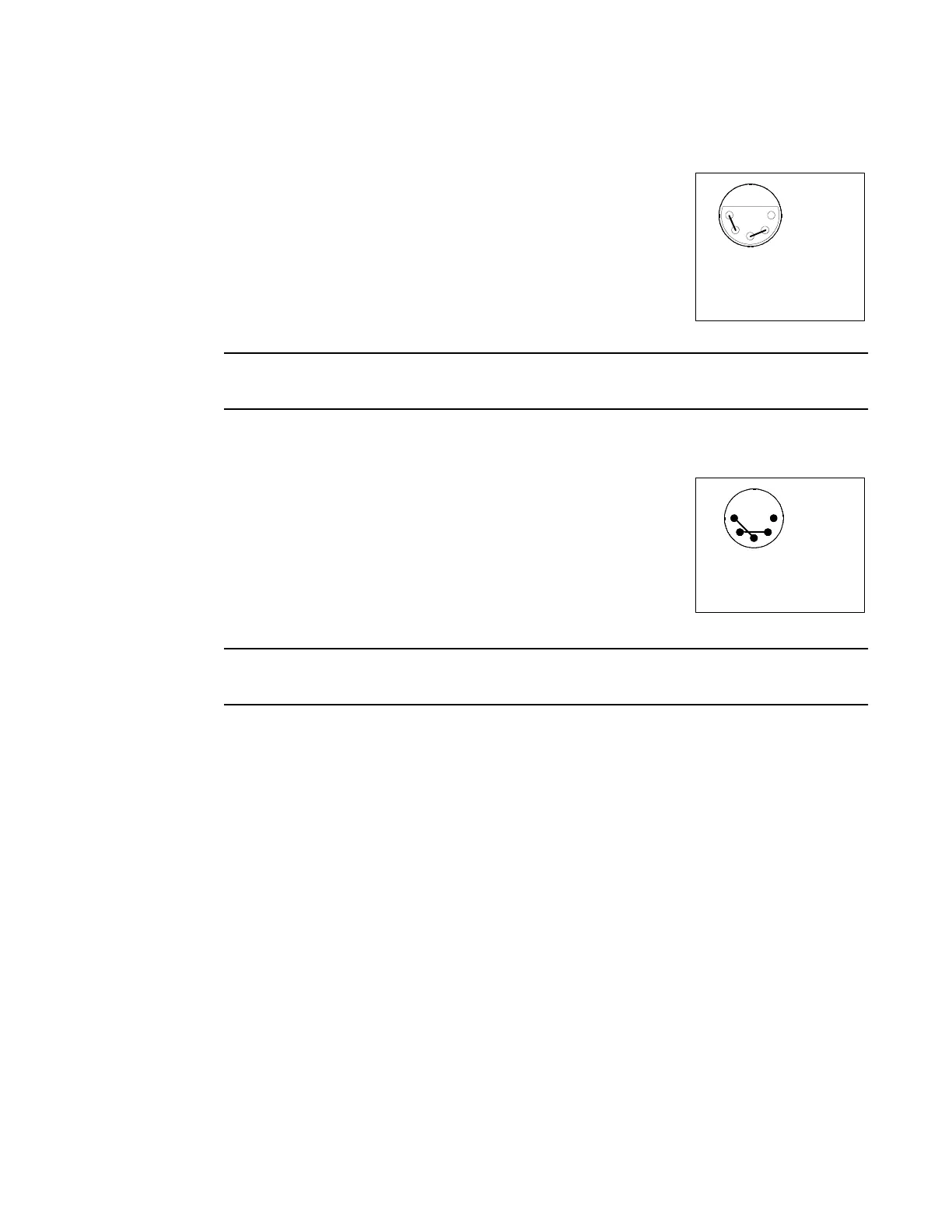

Solder resistor
across pins 2 & 3,
BACK
VIEW
and 4 & 5
1
2
3
4
5
Solder wires across
BACK
VIEW
pins 2 & 4 and 3 & 5
1
2
3
4
5
