VARI❋LITE® - VL2402™ WASH LUMINAIRE USER’S MANUAL
46 17-Sept-01 02.9671.0001 C
Transferring Software From Luminaire to Luminaire
It is possible to transfer specific software versions between luminaires. As in the case
of installing new software versions, multiple luminaires can be programmed at the
same time if they are data linked together (refer to “Connecting Data and Power” on
page 20), however a maximum of 32 luminaires can be updated at once.
The transfer process can be used to download an earlier or later version of the VL2000
Luminaire Software to other connected luminaires of the same type.
Hardware Requirements
Data cables used in this process must have two twisted pairs and a shield. It is also
recommended that cables meet all other USITT DMX specification requirements.
Refer to “Data Cables” on page 13.
A loopback connector is required at the first luminaire and a male termination
connector is required at the last luminaire. Refer to page 15 for more information
regarding the construction of these connectors.
Transfer Procedure
This procedure is used to transfer software versions between Series 2000 luminaires of
the same type.
1. At first luminaire in link, install loopback connector into DATA THRU XLR
connector.
2. At last luminaire, install male termination connector into DATA IN XLR
connector.
3. At master luminaire Menu Display, press [Menu].
4. Press [Up] / [Down] arrows until FIXT (Fixture) appears.
5. Press [Up] / [Down] arrows until Dnld (Download) appears. Press [Enter].
6. OK? will be displayed. Press [Enter] to accept.
7. Download will proceed. (Download will take 4-5 seconds.) One of the
following will occur:

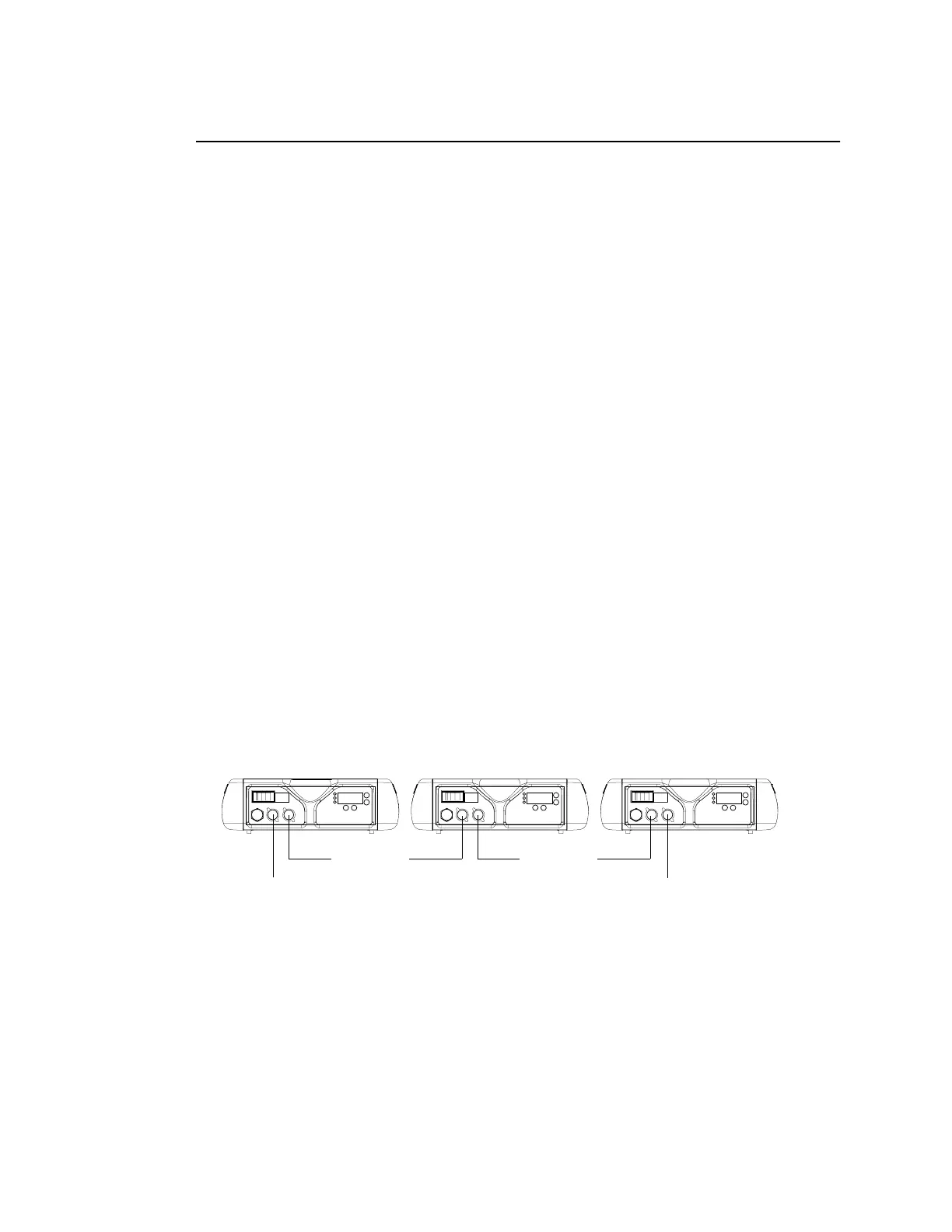

Data Thru Data Thru
First luminaire containing
software version to download
Luminaire 1
requiring update
Luminaire 2
requiring update
Male Termination Connector
Loopback Connector
To Next Page
