VAT 612 Series - Pressure Control System Principles

DESIGN AND FUNCTION Series
612
14/116 Edition 2018-08-20 605262EE
3.2.1.3 Adaptive controller (standard)
A controller adapting itself to changes in pressure, gas flow and pumping speed without any manual
adjustments. This allows for a completely automatic operation of the system.

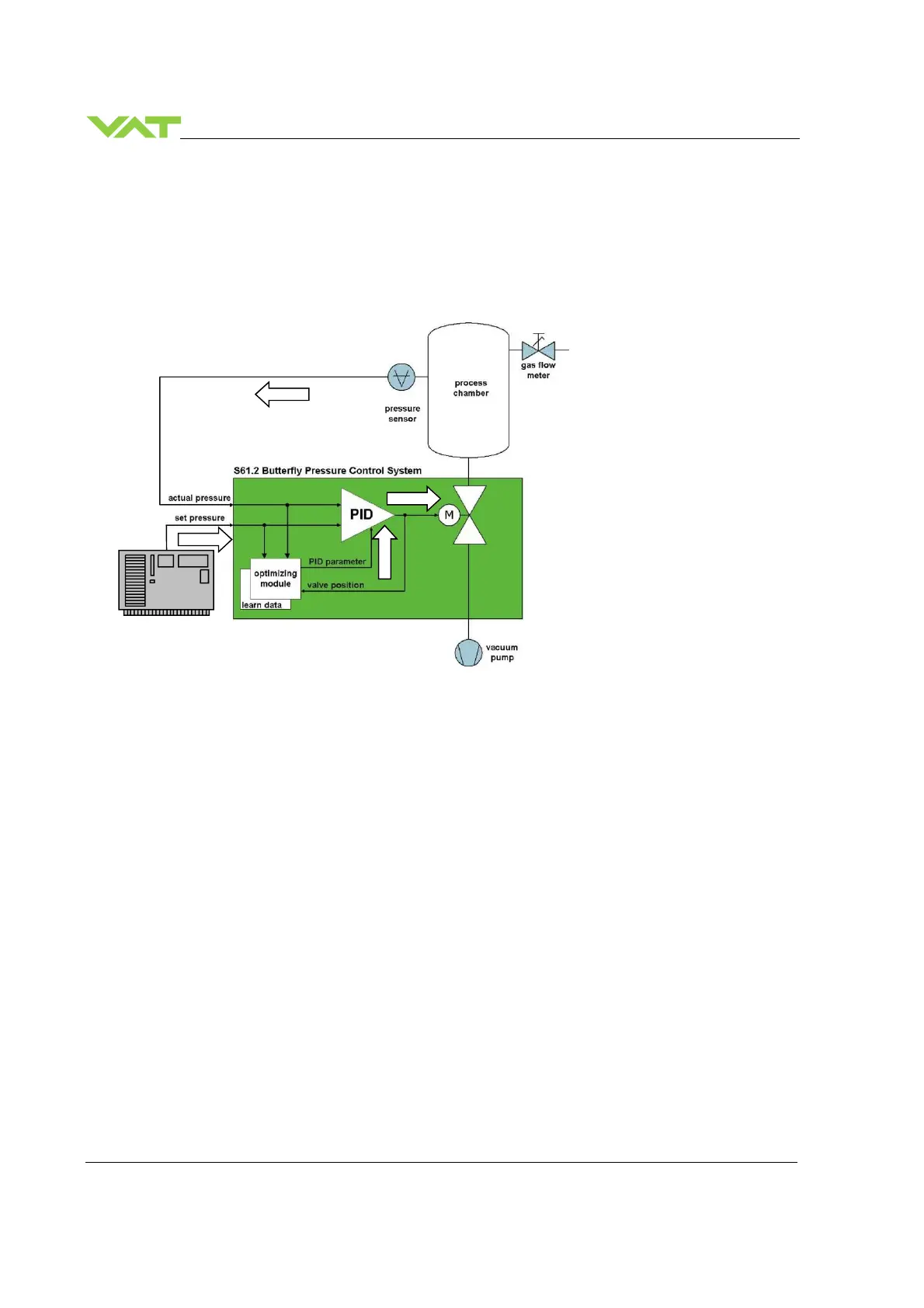

3.2.2 Principle of a pressure control system
1. Host computer sends
pressure set point
2. Controller reads actual
pressure from sensor
3. Optimizing module sends
new PID parameters
4. Actuator sets new valve
position
Host computer
(Example)
1.
4.
3.
2.
