Series 612  OPERATION

605262EE  Edition 2018-08-20  83/

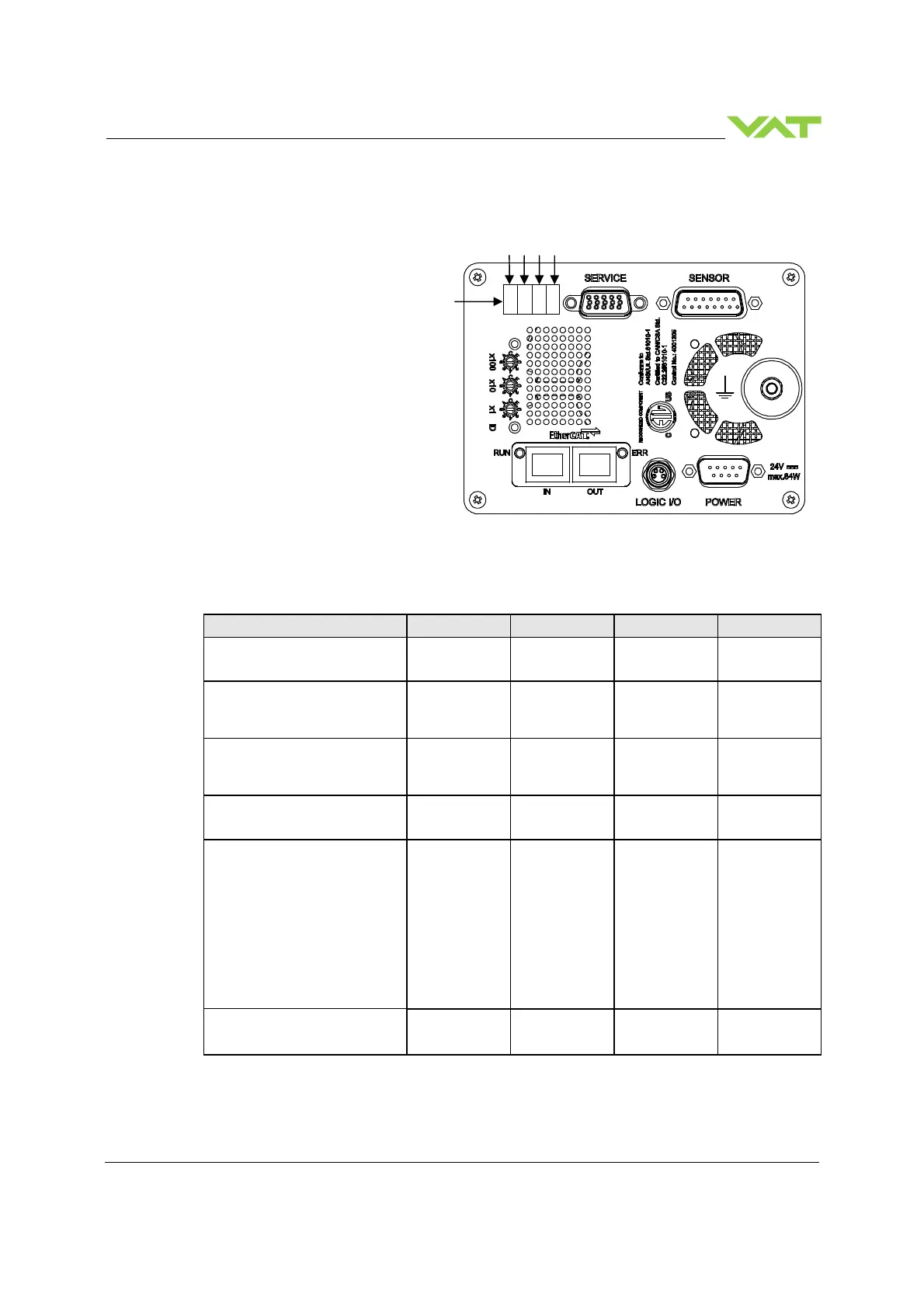

5.6  Display information






There is a 4 digit display
located on the panel. It
displays configuration, status
and position information. For
details refer to following
tables.




5.6.1  Power up
Description  Digit 1  Digit 2  Digit 3  Digit 4
● Power On:
All dots are illuminated
#  #  #  #
● 1
st
 information for about 3s:
Firmware generation
[e.g. 1G..]
1  G
● 2
st
 information for about 3s:
Firmware version and firmware
revision [e.g. 00 03]
0  0  0  3
● 3
nd
 information for about 3s:
Valve type [e.g. .612]
  6  1  2
● 4
nd
 information for about 3s:
Controller configuration
In case D999 is displayed,
motor interlock is active. Refer
to «Safety mode» for details.

J
= EtherCAT

interface
0
= basic
1
= with SPS
1)

2
= with PFO
2)

3
= with SPS
1)

and PFO
2)

1
= 1 sensor
version

2
 = 2 sensor
version
SYNC indicates that powerup
synchronization is running.
S
Y
N  C

1)
 SPS = optional ±15 VDC Sensor Power Supply module,
2)
 PFO = Power Failure Option

1  2  3  4
