9
.
Installing Soft
ware
120
vatech A9
(Model:PHT
-
30CSS
)
Installation Manual
9.5.2

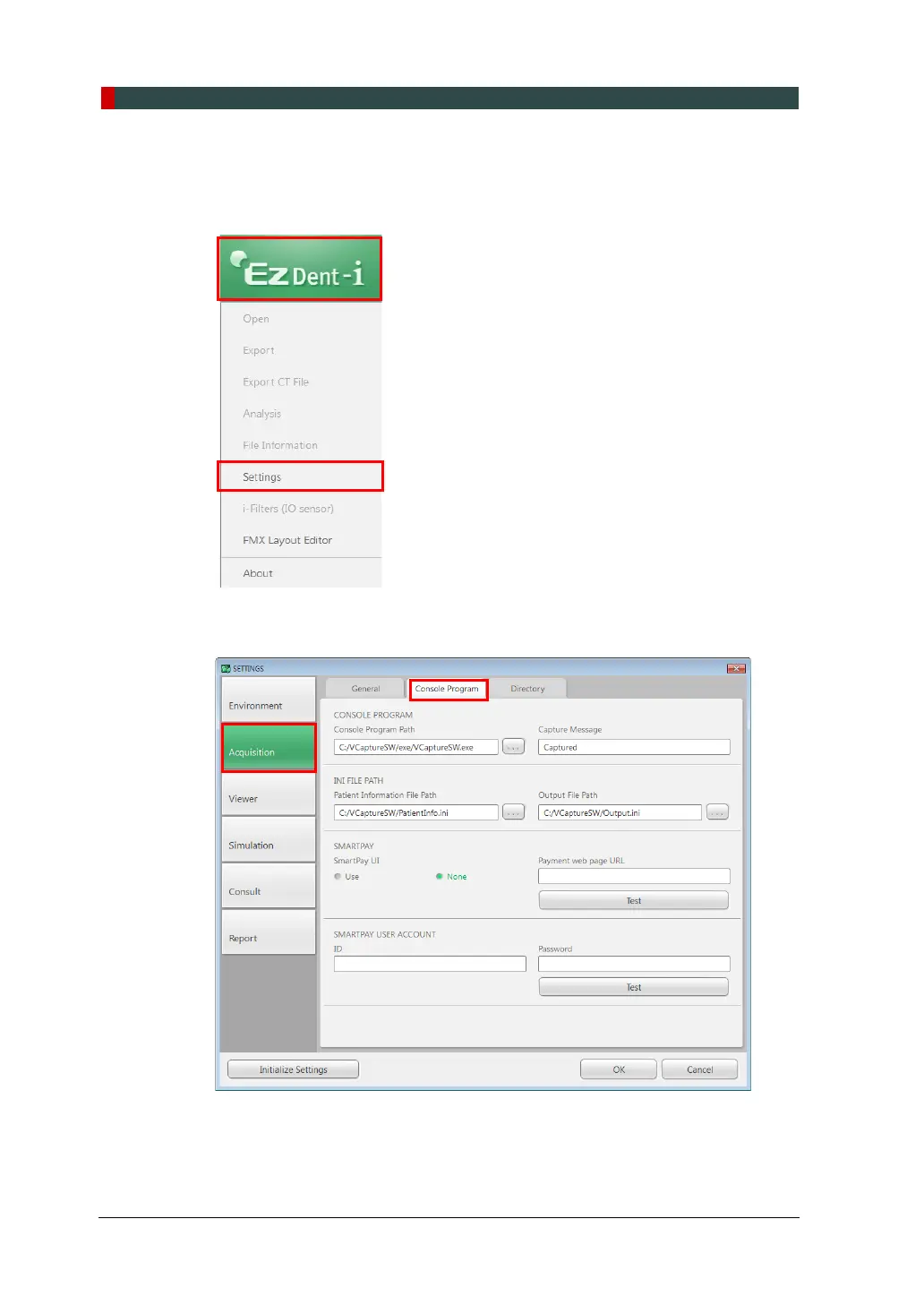

Interfacing
the EzDent
-
i with
Imaging
Program (One
-
time Linking)
1.
On
the main scr
een of
the
Ez
Dent
-i
, click
EzDent-i
→
Setting
.
2.
Click
Acquisition
→
Cons
ole Program
.
1
2
1
2
129
131
