3. Before Installing the System
28 vatech A9 (Model:PHT-30CSS) Installation Manual
vatech A9 (Model: PHT-30CSS) is an advanced 4 in 1 digital X-ray imaging system
that incorporates PANO, CEPH (Optional), CBCT, 3D MODEL Scan imaging
capabilities into a single system.
vatech A9 (Model: PHT-30CSS), a digital radiographic imaging system, acquires and
processes multi FOV diagnostic images for dentists. Designed explicitly for dental
radiography, vatech A9 is a complete digital X-ray system equipped with imaging
viewers, an X-ray generator, and a dedicated SSXI detector.
The digital CBCT system is based on a CMOS digital X-ray detector. The CMOS CT
detector is used to capture 3D radiographic images of the head, neck, oral surgery,
implant, and orthodontic treatment. vatech A9 can also acquire 2D diagnostic image
data in panoramic and cephalometric mode.
3.3 Unpacking Boxes
 All packages and Styrofoam used to ship this equipment
are recyclable.
 Return the package to your VATECH Service
Representative or dispose of it following h the legal
regulations of your country.
3.3.1 Box No. 1 - Main Box
Component Size (mm / inch) Weight (kg/lbs.)
 Column and Rotating
Unit Assembly
 Accessories and Parts
 PC System (Optional)
 Monitor (Optional)

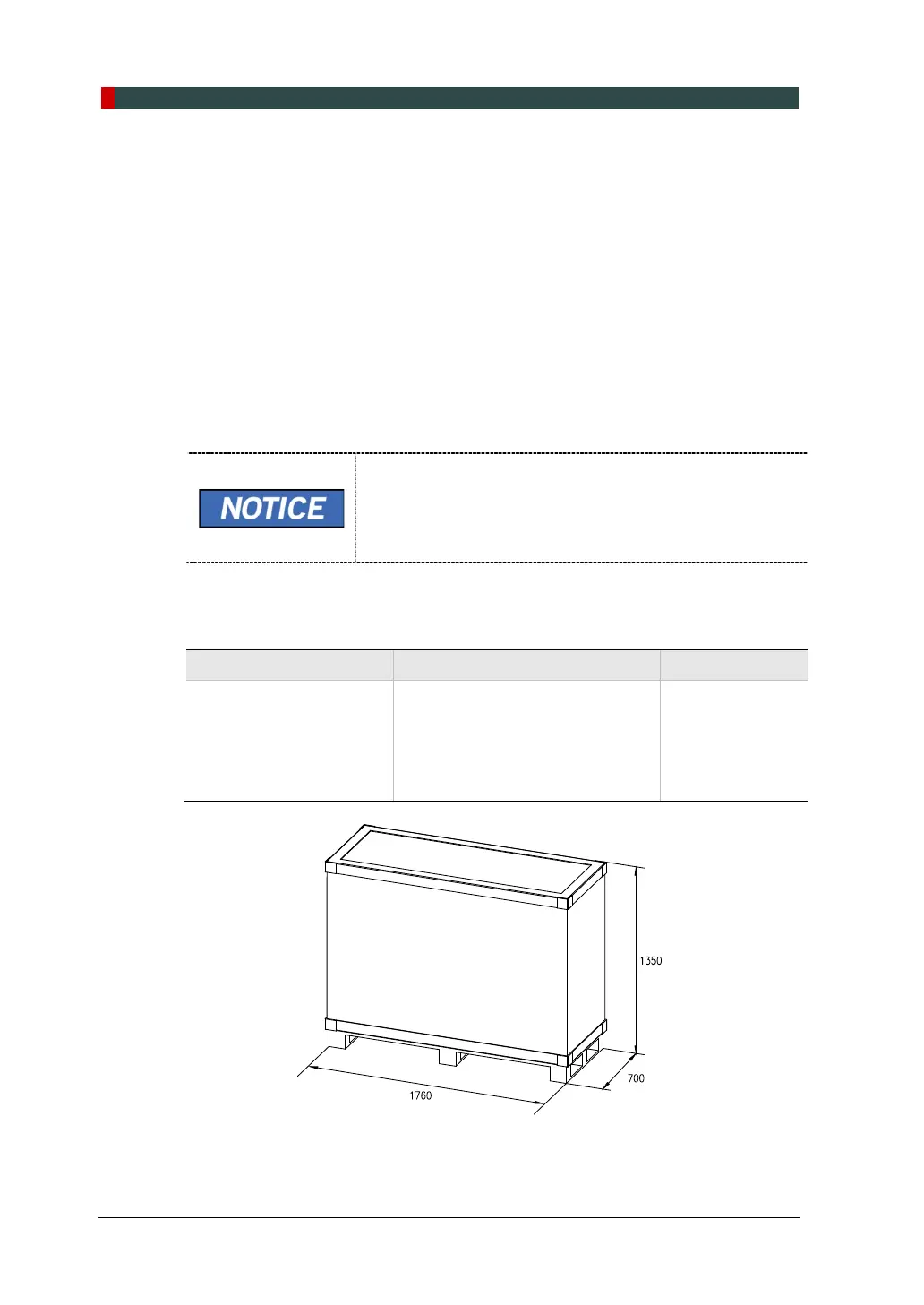

1760 (L) x 700 (W) x 1350 (H)
/ 69.29 (L) x 27.56 (W) x 53.15 (H)
221 / 487
