4. Installing the Equipment: Base Stand (Optional)
vatech A9 (Model: PHT-30CSS) Installation Manual 55
English
4.4 Fixing the Base (Optional)
Concrete Floor
Required Tool
Hammer Drill
L = 200 mm
(7+-.9”)
Ratchet Wrench
Tips: 3 mm - 8 mm
(0.12” - 0.3”)
Hammer N/A
Parts and
Accessory
Anchor Bolt
5/16 x 60 w/ Spring
and Flat Washers -
2 pcs
(Part No. 34)
Spring washer
M8 - 2 pcs
(Part No. 34)

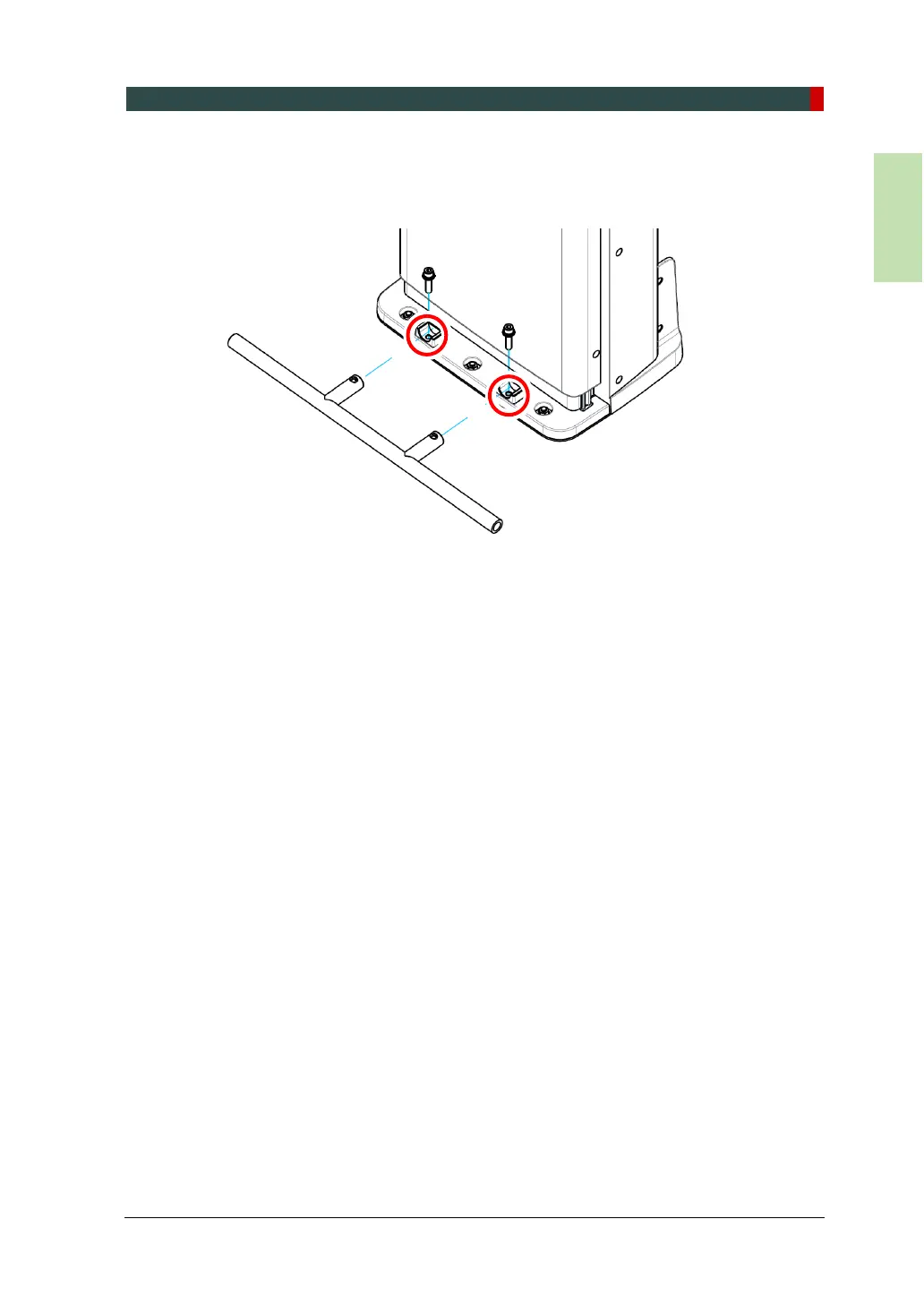

1. Place the Base Unit on the floor where you planned to install the equipment.
And mark two locations to insert anchor bolts. (see below)
