4. Installing the Equipment: Base Stand (Optional)
vatech A9 (Model: PHT-30CSS) Installation Manual 63
4.7 Leveling the Equipment
Required Tool
T-shaped Hex
Wench
8 mm / 0.3”
Spirit Level N/A
Ensure to place the Spirit Level on the indicated
locations in this manual for an accurate reading.
1. Prepare a Spirit Level.

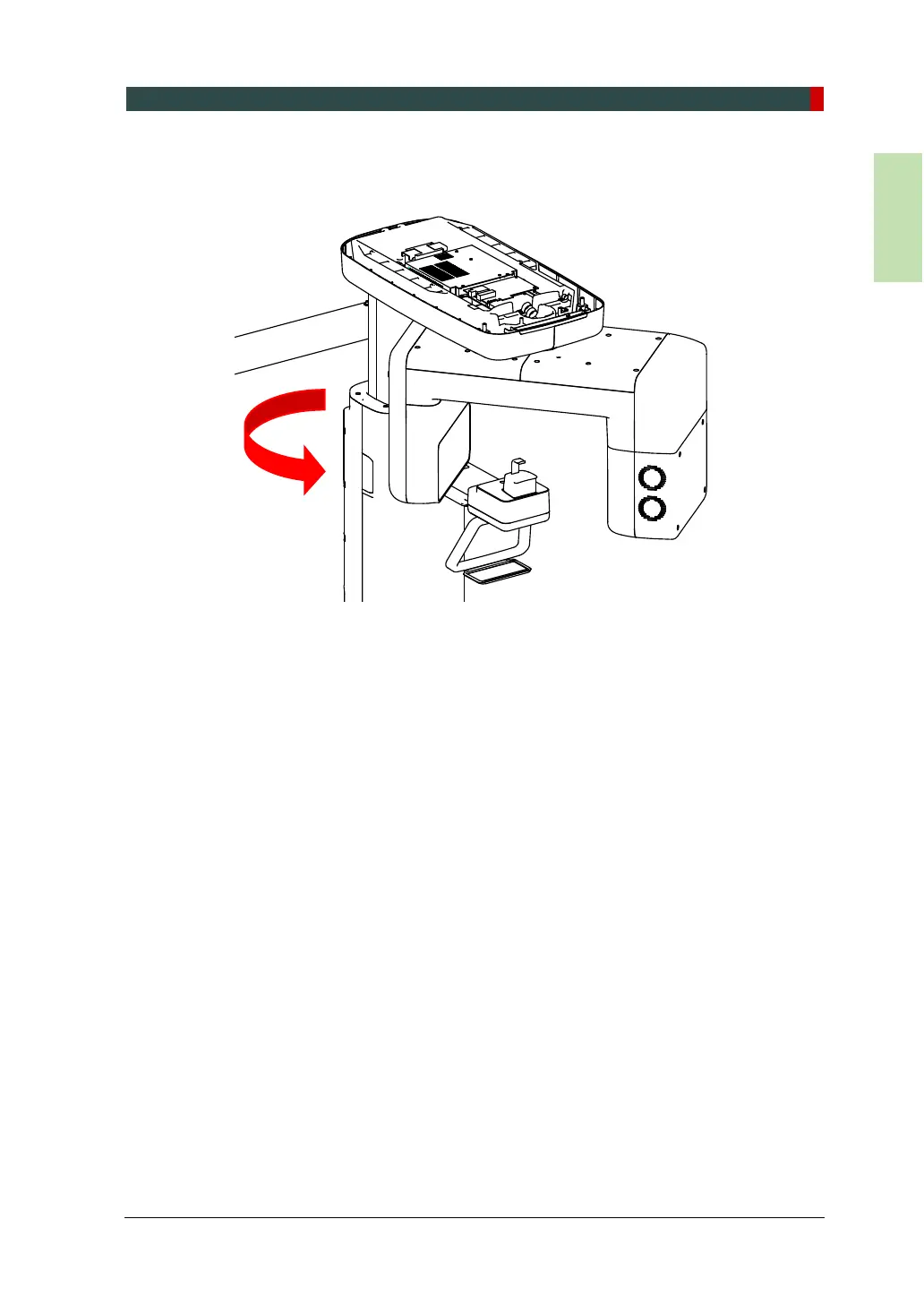

2. Turn the Rotating Unit clockwise so that the X-ray tube head faces the front.
3. Turn all nine screws in marked locations clockwise.
To Next Page
