6. Completing Miscellaneous Works

vatech A9 (Model: PHT-30CSS) Installation Manual 79

English

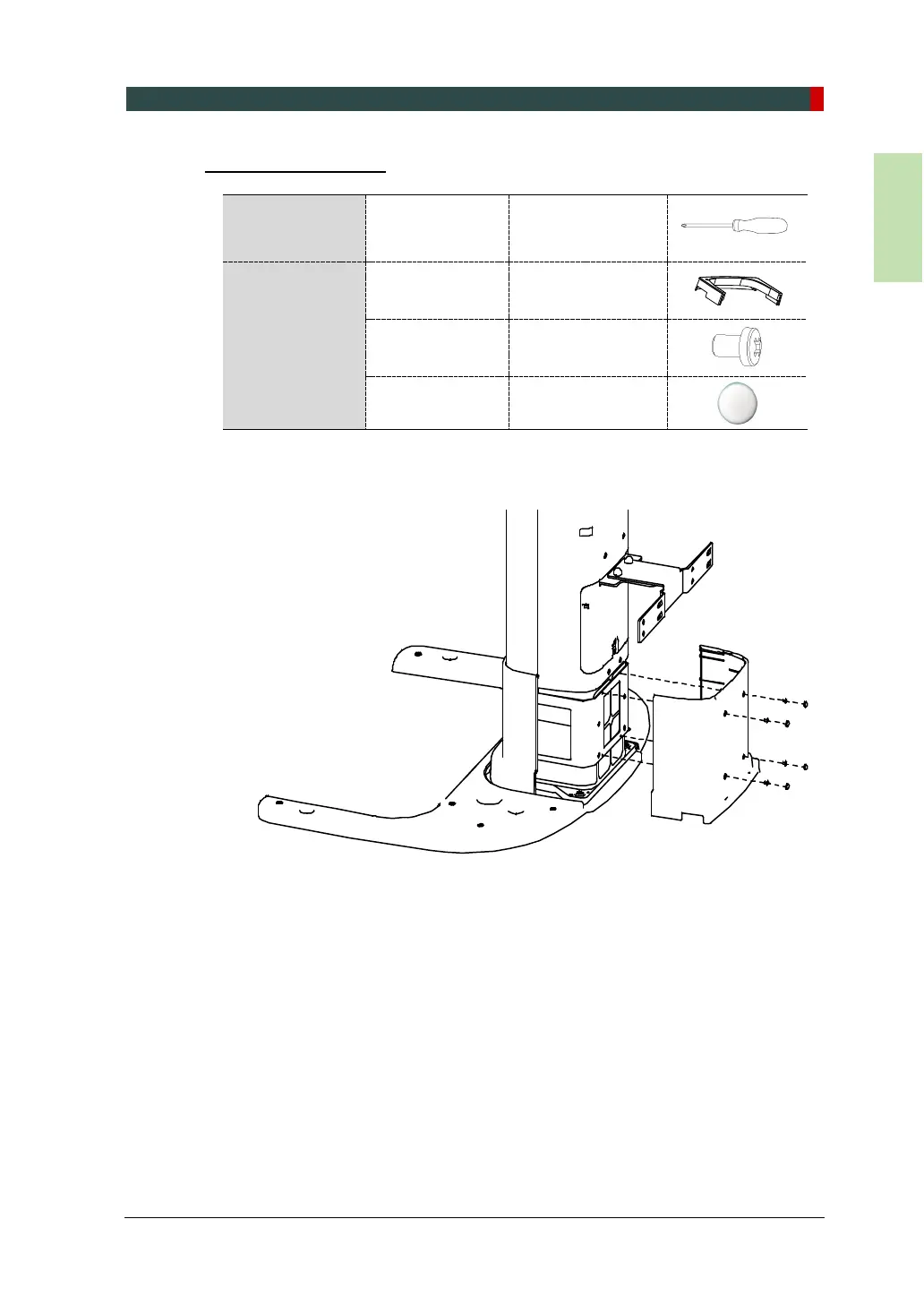

Base Top Cover Rear

Required Tool

Cross Head

Screwdriver w/

Magnetic Tip

L = 200 mm (7.9”)

Parts and

Accessory

Base Top Cover

Rear

Pan Head Screw

M4 x 6 – 4 pcs

(Part No. 27)

Silicon Cap

(White)

4 pcs

(Part No. 16)

1. Assemble the Base Top Cover Rear in the Column Unit's back with two truss bolts

and a screwdriver. (see below)

2. Put a silicon cap (white) into each hole to complete the step.
