Run 9
________________________________________________________________________________________
_______________________________________
9-78

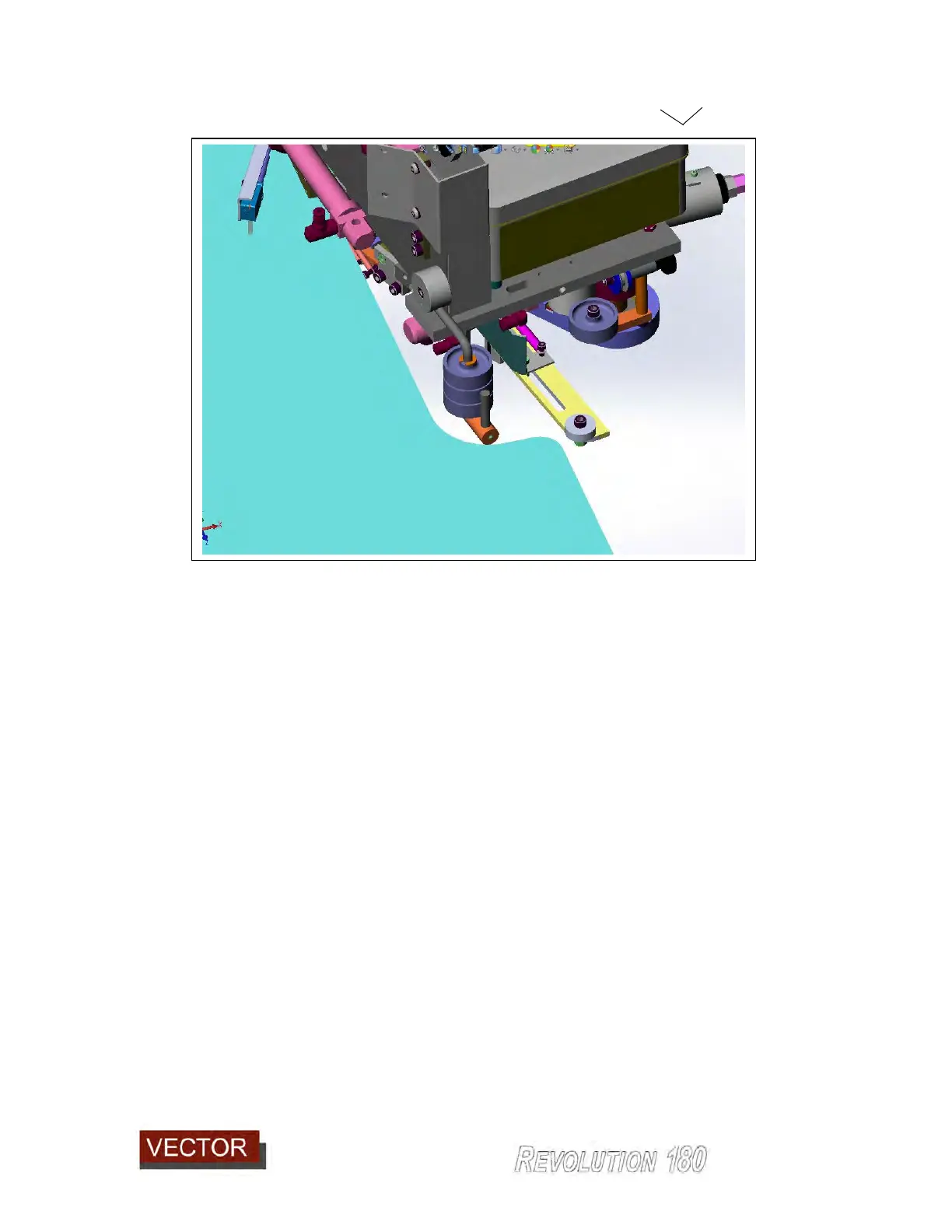

Fig 5
Shows situation where concave corner cannot be detected by bump switch slide
lever being depressed on its end
NOTE: There is an infinite number of possible combinations of Concave followed by
Convex such as one might find in a wireway. Which combination of Enable Concave and
Retract on bump bar is used is dependent on the shape so it if you are having trouble with
a shape, then it is ok to try different combinations.
In the event simple results are not able to be achieved, then it is recommended to use the
Special Sequence function (refer 9.4.3)
