Assembly 5
________________________________________________________________________________________
_______________________________________
5-3

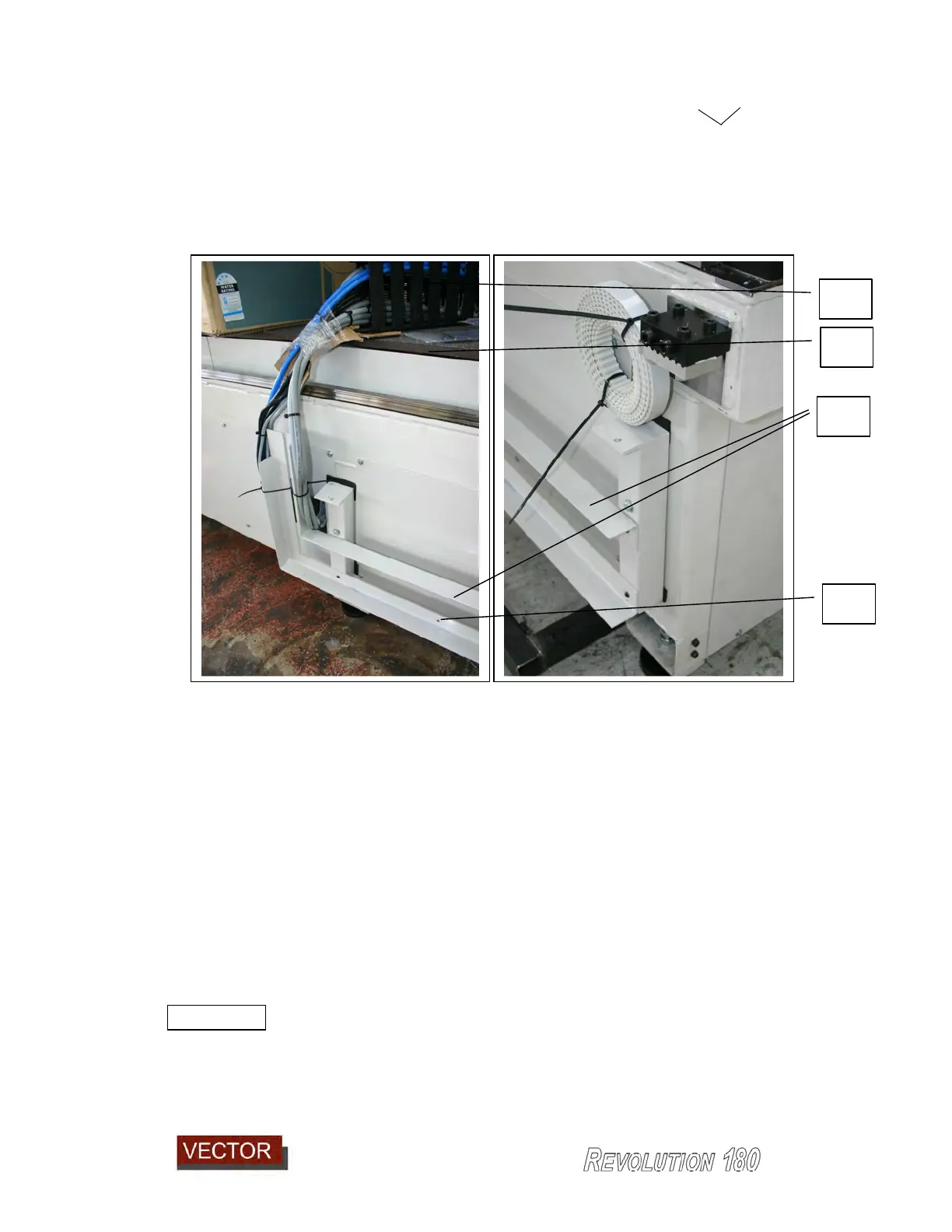

5.2.1.2 X Axis Cable Chain and Support
The X Axis cable chain support (20) should be unbolted from it’s transportation
position on the rear of the machine. A plastic bag contains the bolts used to fix it to
the fixing points on the rear of the machine.
The X axis cable chain (22) must be removed from it’s transportation position on top
of the worksurface (21) and fitted. It is critical when installing this that it is rolled in
the correct direction off the table so as not to wind a twist into the cables. If on
rolling into position, the cables do not sit easily and without tension, then reverse the
process in the same direction back onto the table and then roll over again but in the
opposite direction.
The X cable chain (22) is fixed to the cable chain support (20) via two fixing holes
(26) at the left hand end and via the mounting bracket (25) on the motor mounting
plate.
The Electrical Box D (23) is mounted to the rear of the Y arm (24) with the screws
provided. See image on next page.
Care must be taken to ensure the cables are not twisted and do not get
pinched as these assemblies are fitted.
CAUTION !
20
22
21
26
To Next Page
