Assembly 5
________________________________________________________________________________________
_______________________________________
5-5

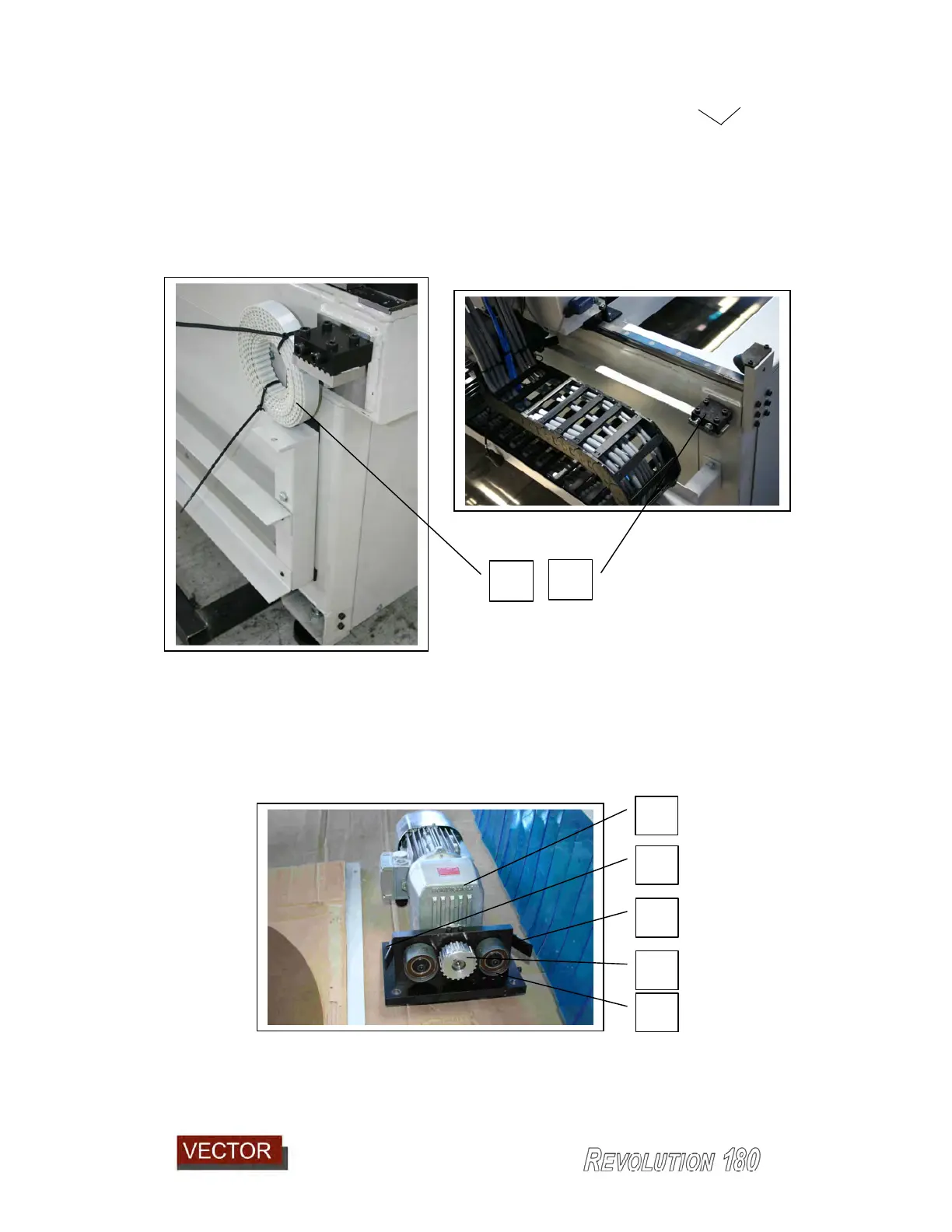

5.2.1.3 Fitting X Axis Drive Belt
The X Axis drive belt (27) can now be fitted. It remains connected to the X –ve belt
clamp (28) at the end of the machine during transportation and should be unrolled
and aligns in a tooth down orientation.
The belt can then be rolled along the length of the machine and fed through the
pulleys of the motor. The belt is fed onto the rollers sideways running under the
idler rollers (14) and up over the toothed pulley (13). The toothed pulley (13) can be
rotated by hand or by pullling on the belt.
27
28
10
11
12
13
14
