Assembly 5
________________________________________________________________________________________
_______________________________________
5-12
The 4mm diameter hose (44) connects to the rear of the actuating cylinder (45) and
the larger diameter 6mm hose (46) connects into the rod end of the cylinder (45).
The Cylinder extends and retracts to drive a ratchet which rotates the tape coiler.

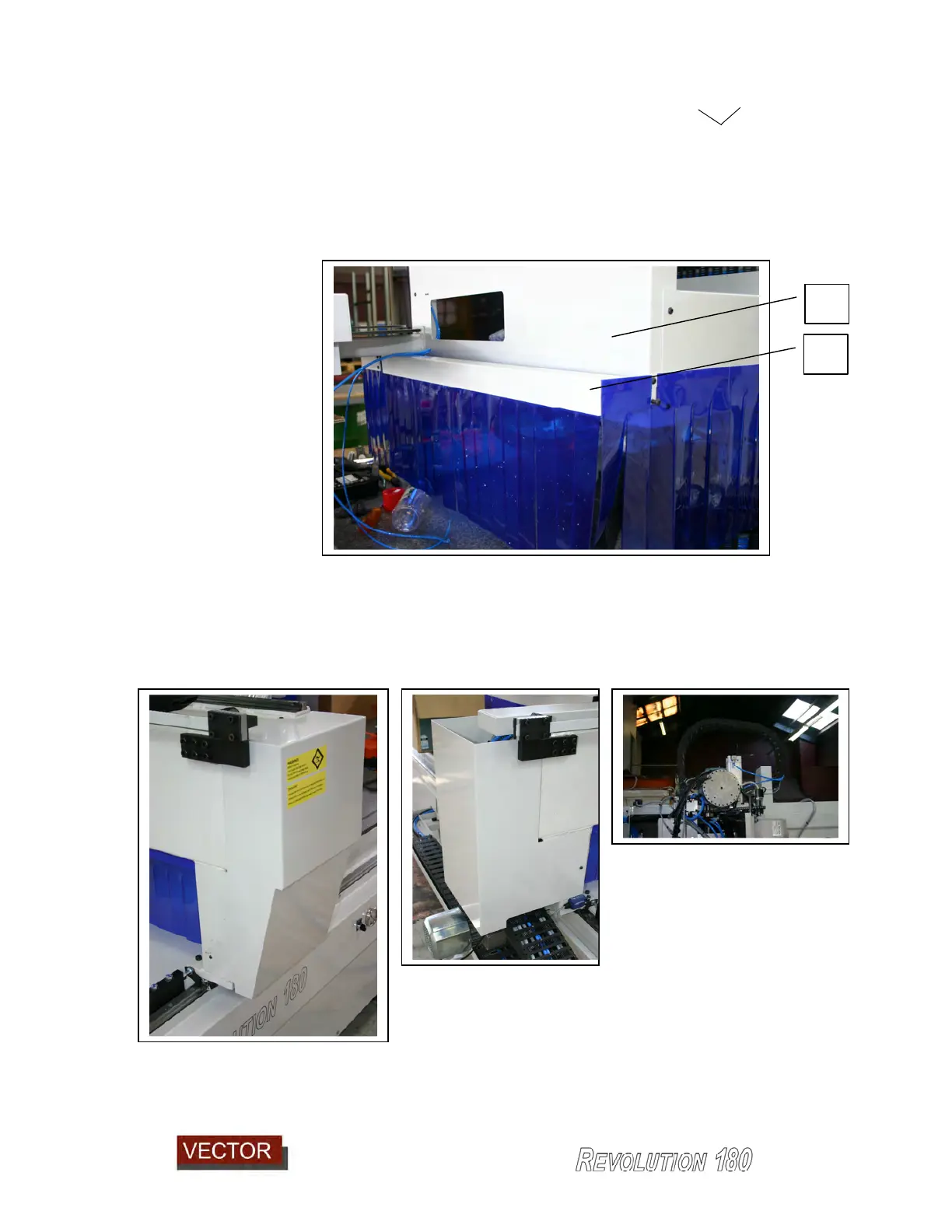

The side curtain (51) is also fitted to the side cover (52).
The remaining covers for the front and rear of the Y-arm can now be fitted and also
the Z axis cable chain must be replaced (it is released and lowered for transportation
to enable it to fit into the container).
Z cable chain
Rear Cover
Front cover
52
51
