PRINTER OPTION
Figure 17 illustrates Printer Option setup in Setup Mode. This option lets you select a printer type and make the
appropriate settings.

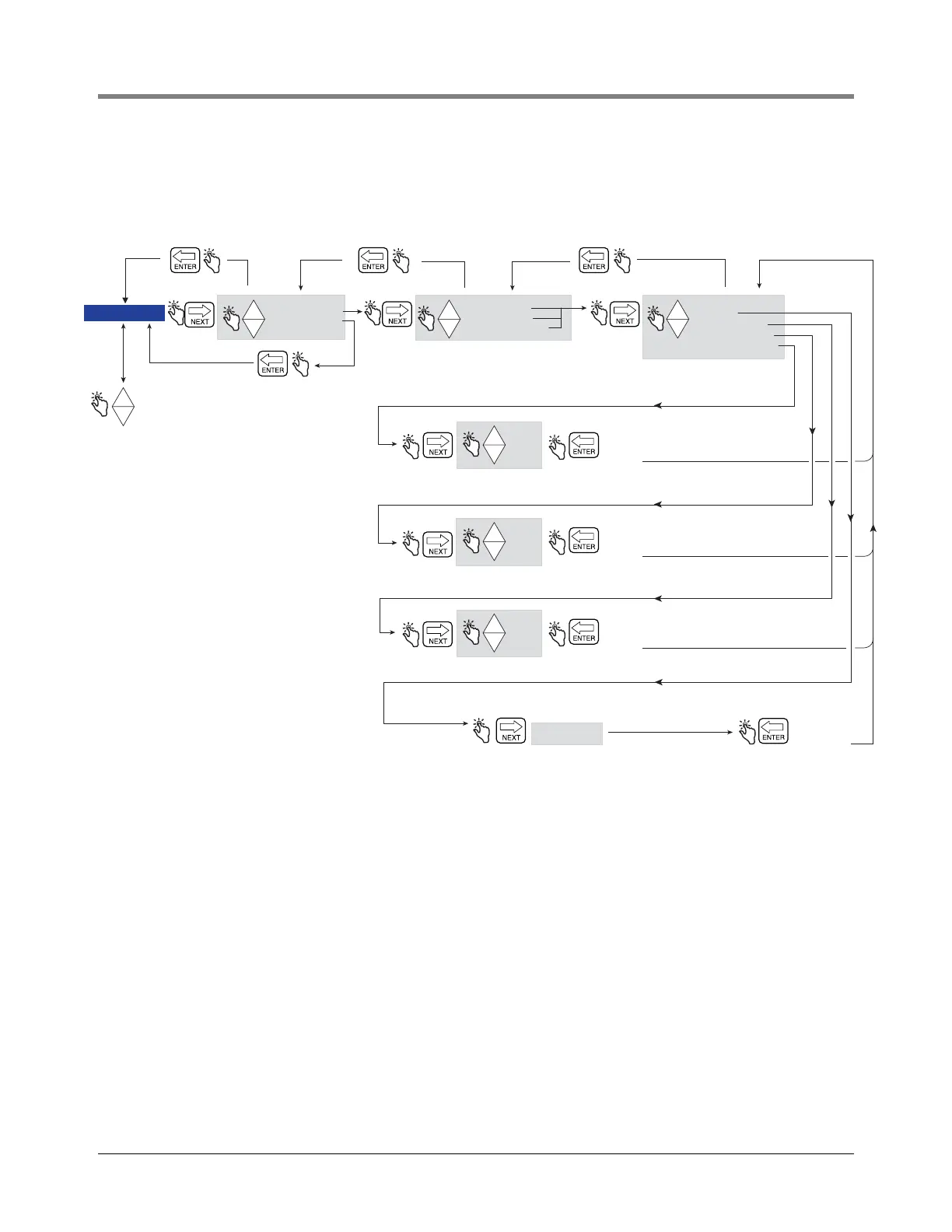

Figure 17. Printer Option Setup
An example of Printer Format 1 (Delivery Ticket Format), selectable in the Printer Option setup above, is shown in
Figure 18.
NOTES:
1. The availability of certain printer labels is dependent on options selected.
2. The thermal printer is a customer supplied printer that is compatible with the HENGSTLER C-56 Printer
Protocol and uses the following settings: 9600 baud, 1-Stop Bit, 8-Data Bits and No Parity.
PRINTER OPTION
-
+
+
-
+
ENABLE PRINTER
DISABLE PRINTER
+
-
+
SLIP PRINTER
ROLL PRINTER
THERMAL PRINTER
YES
NO
+
-
+
ADVANCE
PRINT TEST PAGE
PRINT CALIB PAGE
PRINTER FONT SIZE
SET ADVANCE
Note: The minimum distance from
the top edge of the ticket down to
the first line of printing is 1 inch
and cannot be changed.
To increase the distance from the
top of the ticket to the first line you
change SET ADVANCE.
The minimum advance is 0 inches
which is the default.
Press ENTER
to accept
selection and
return to
Press ENTER
to accept
selection and
return to
Note: Select 5X7 for Slip Printer reduced font size.
Note: Printer Font Size option is
for Slip Printer only.
Each line advance is = to .167 inch. For example,
to have the first line print 2.5 inches from the top
you would need to add an additional 1.5 inches to
the fixed 1 inch space so you would enter 9 as the
advance (9 x .167 = 1.5 + 1 = 2.5"). Press up/down
arrows to select a number and NEXT to move from
one digit of the number to another.
+
-
+
YES
NO
+
-
+
5X7
7X7
+
-
+
Press the up/down
buttons to cycle
through remaining
Setup Mode categories
Press ENTER
to accept
selection and
return to
Press ENTER
to accept
selection and
return to
VIEW RECORDS
RESTORE RECORD
SHIFT
DATE FORMAT
TIME/DATE
SYSTEM ADDRESS
TIME DELAYS
VERSION NUMBER
C AND C
ENTER SECURITY CODE
PRICING
TAX/DISCOUNT
DEFAULTS
RELAY CONTROL
SECURITY
