Veeder-Root EMR4 User Manual

C&C Mode C&C Mode Setup Categories
39

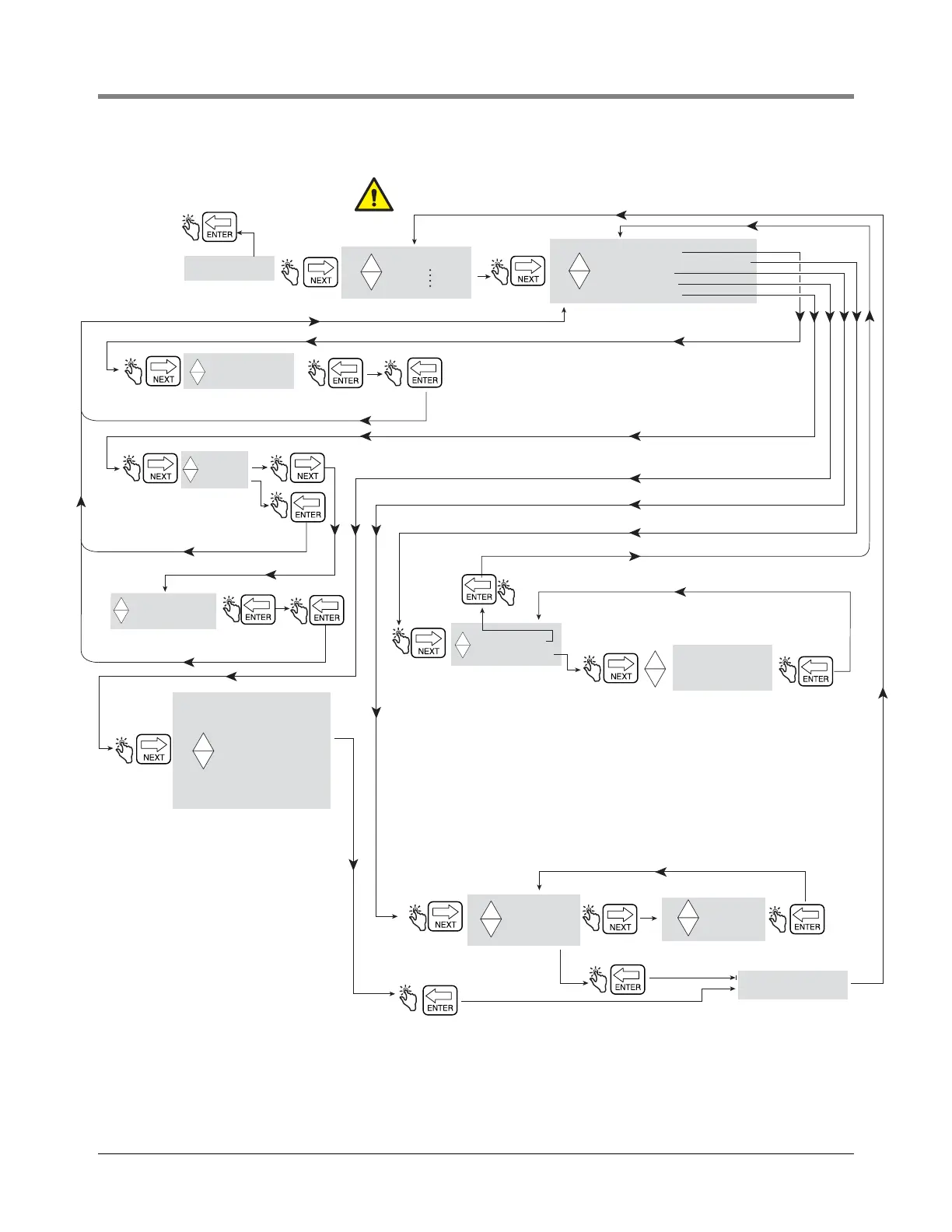

Figure 40. Product Description Setup
PRODUCT DSCRIP
PROD DSCRPT 1
PROD DSCRPT 8
PRODUCT NAME
PRODUCT NAME
TEMPERATURE COMPENSATION*
CAL NUMBER
PRODUCT TYPE
PULSE OUTPUT
GASOLINE
DIESEL
LPG
JET A
AV GAS
FUEL OIL
CRUDE OILS
LUBRICATING OILS
USER DEFINED
NO PRODUCT ENTRY
-
+
-
+
*Note: Coefficient or Density will display depending
on choice made in Delivery Options setup
Default names are assigned as you select product
Type. Here you can assign a custom Product Name.
Noncompensated
TC Compensated
PROD CAL 1
PROD CAL 2
PROD CAL 3
PROD CAL 4
-
+
COEFFICIENT X °F
TEMPERATURE X °F
-
+
-
+
FORMAT 1
FORMAT 2
-
+
Up to 8 Products Can be Assigned
Make your changes to the coefficient in Preset field
(if necessary) and/or to temperature in Register
field (if necessary).
Selection applies to both shift
and delivery tickets
Default Product Types - See Table 2 for coefficients, or Table 4
for densities for these product types.
User Defined - a liquefied gas not available in the tables can
be set up under User Defined. However, you will need to enter
either coefficients (ref. Table 3) or densities (ref. Table 5) for
the product, and their respective temperatures.
No Product Entry - Once you have used one of the 8 Product
Descriptions and decide to no longer use it, you must choose
this selection for that Product Description.
See Table 3 for coefficients.
1
1
1
2
1
4
1
1
1
1
1
3
4
3
2
2
Displayed coefficient of expansion corresponds to default Product Type selected (see Table 2).
Assign 1 of 4 Product Cali-
brations to a Product Type.
1
2
For LPG or USER DEFINED Product Types, 12 coefficient-temperature pairs are required (see
Table 3).
TC Compensated only appears if
the temperature probe is
installed.
1
1
After assigning a Product Type or a Cal Number to any Product Description
number, the meter must be recalibrated in Meter Calibration Setup.
DISABLE 1
DISABLE 2
DISABLE 3
-
+
-
+
-
+
-
+
SET PULSES/VOL 1
SET PULSES/VOL 2
SET PULSES/VOL 3
Note: Enter the desired number
of counts/unit volume
Note: Enabling PULSE OUTPUT
processes raw encoder counts to
output a user desired counts/unit
volume entered in SET PULSES/VOL.
NEW CALIBRATION
REQUIRED
RETURN TO
FUEL SOURCE
FIGURE 37
