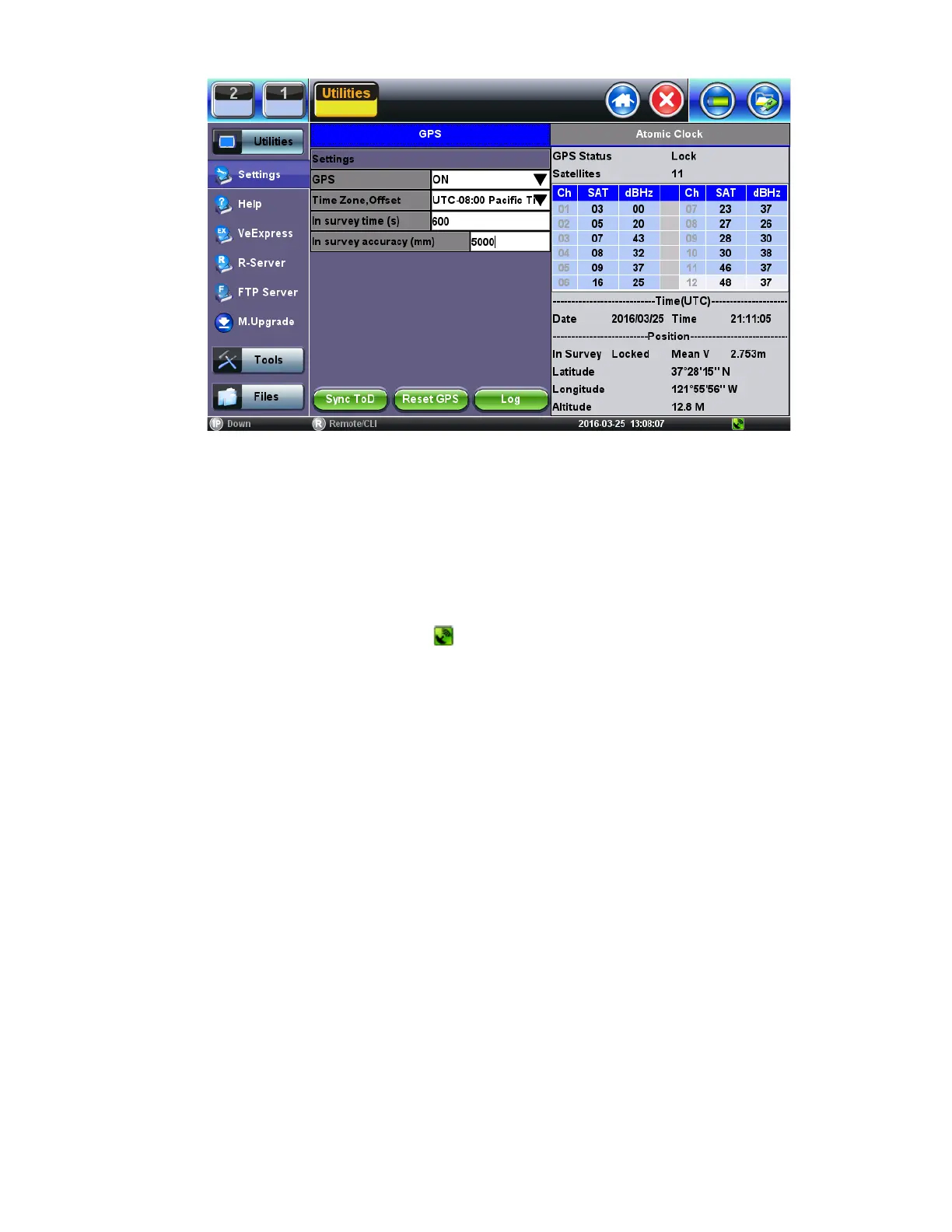

1. Turn the GNSS Receiver = ON.
2. Set the Satellite System = GPS
3. Set In-survey time (s) = 600, which is the time window used by the GNSS Receiver to assess stable location, using the
specified accuracy (below). Having an accurate tri-dimensional location is required to calculate accurate time.
4. Set In-survey accuracy (m) = 5, which is a target of <5m for the Mean V accuracy reading. Smaller values tighten the
location accuracy requirements, but the site survey process may take longer. It is possible to get better than 1.5m location
accuracy when using professionally-installed roof-top antennas.
5. Enter any antenna cable delay that needs to be compensated for (velocity of propagation is cable dependent, their values are
around 5ns/m or 1.2ns/ft). Enter 20ns if using the 5m portable antenna.
6. Select the Time Zone Offset (it is used to calculate the local time of day).
7. Wait for GPS Status on top to show Lock and for the
icon at the bottom of the screen to turn green. It indicates that it is
successfully tracking enough GPS and GLONASS satellites.
8. Wait for about 15 to 30 minutes for the Mean V value to be below 5.00m and until the In Survey status also shows Locked.
This indicates that the GPS position has reached the required accuracy (site survey finished) and that it has switched into
Timing Mode.
9. At this point, the GPS Module should be providing accurate Time and Timing (1PPS).
10. Tap the Sync ToD button to synchronize the test set’s (system) real-time clock.
Atomic Clock Settings and Operation
This section explains the different disciplining parameters for the optional chip-scale Atomic Clock and provides the settings required
to quickly verify its proper operation. For application-oriented configurations, please refer to the suggested configurations table at the
end of this document.
Free Running Stage (Frequency only)
By default, the built-in Atomic Clock oscillator starts in free-running mode, providing a calibrated Atomic 10MHz frequency reference.
(Its exact frequency could vary over time due to ageing, temperature, storage and other factors.) It also produces an arbitrary (non-
traceable) 1PPS timing signal that is not aligned to the standard UTC second. Disciplining must be used in order to make the
necessary frequency and timing corrections.
Oscillator Disciplining Process (Frequency & Phase)
The disciplining process acts as a continuous “soft calibration” that corrects any frequency deviation in the oscillator and aligns the
timing pulse (1PPS) to the standard UTC second. The chip-scale atomic oscillator can be disciplined by:
1. The built-in precision GNSS Receiver (GNSS 1PPS).
2. An external traceable 1PPS signal from a primary reference time clock (PRTC) or time standard (Cs or Rb).
