4 Mounting
VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815

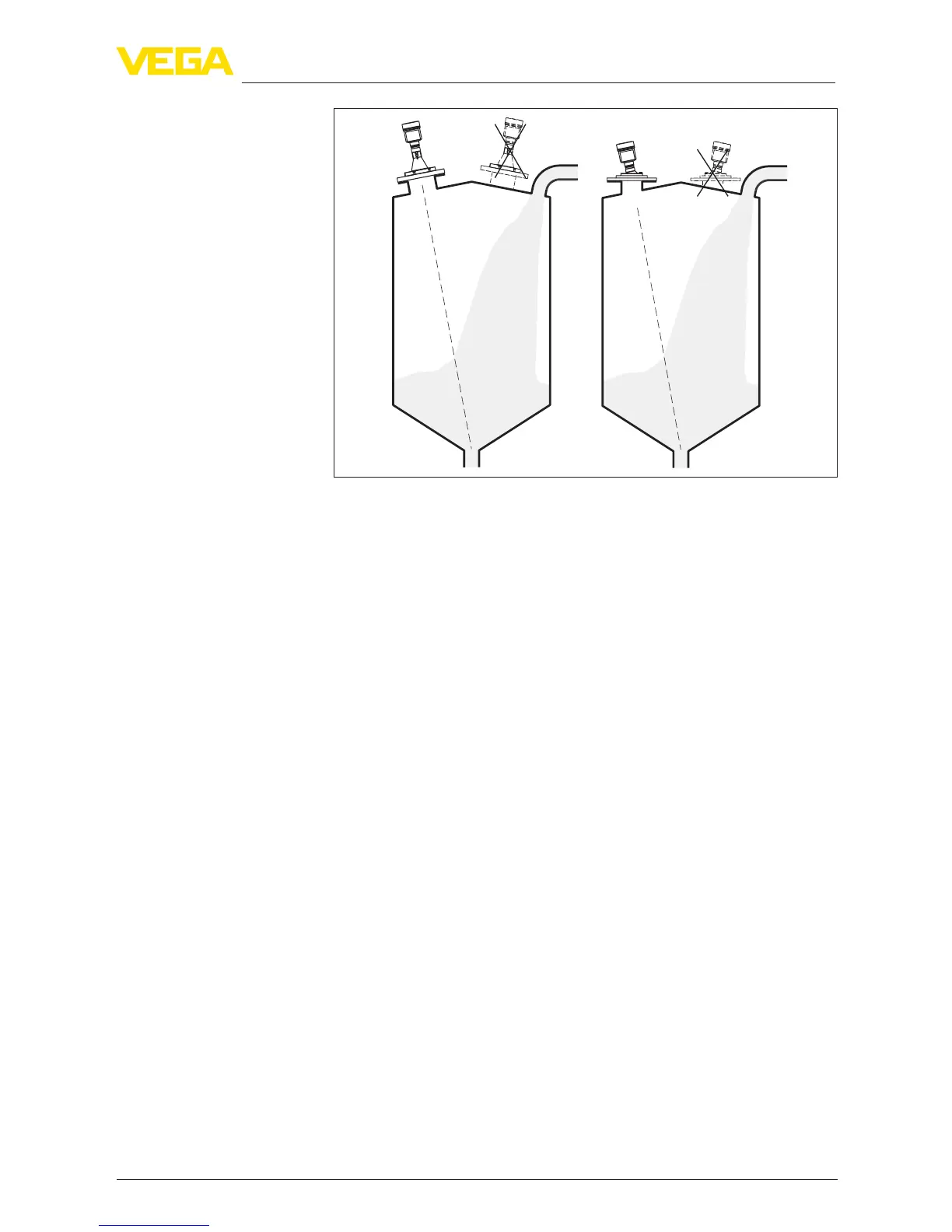

Fig.10:Mountingoftheradarsensorwithinowingmedium
Silowithlaterallling
Inbulksolidssiloswithlateralpneumaticllingtheinstrumentshould
notbemountedabovethellingstream,astheradarsignalwillbe
disrupted.Theoptimalmountingpositionistothesideofthelling
aperture.Toavoidheavysoiling,thedistancetoanylterordust
exhauster should be as large as possible.
