Vega VEGAPULS 69 - Page 33

33
5 Connecting to the bus system
VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815
Bus
5
1
2
+
( )
(-)
678
2
3
4
1

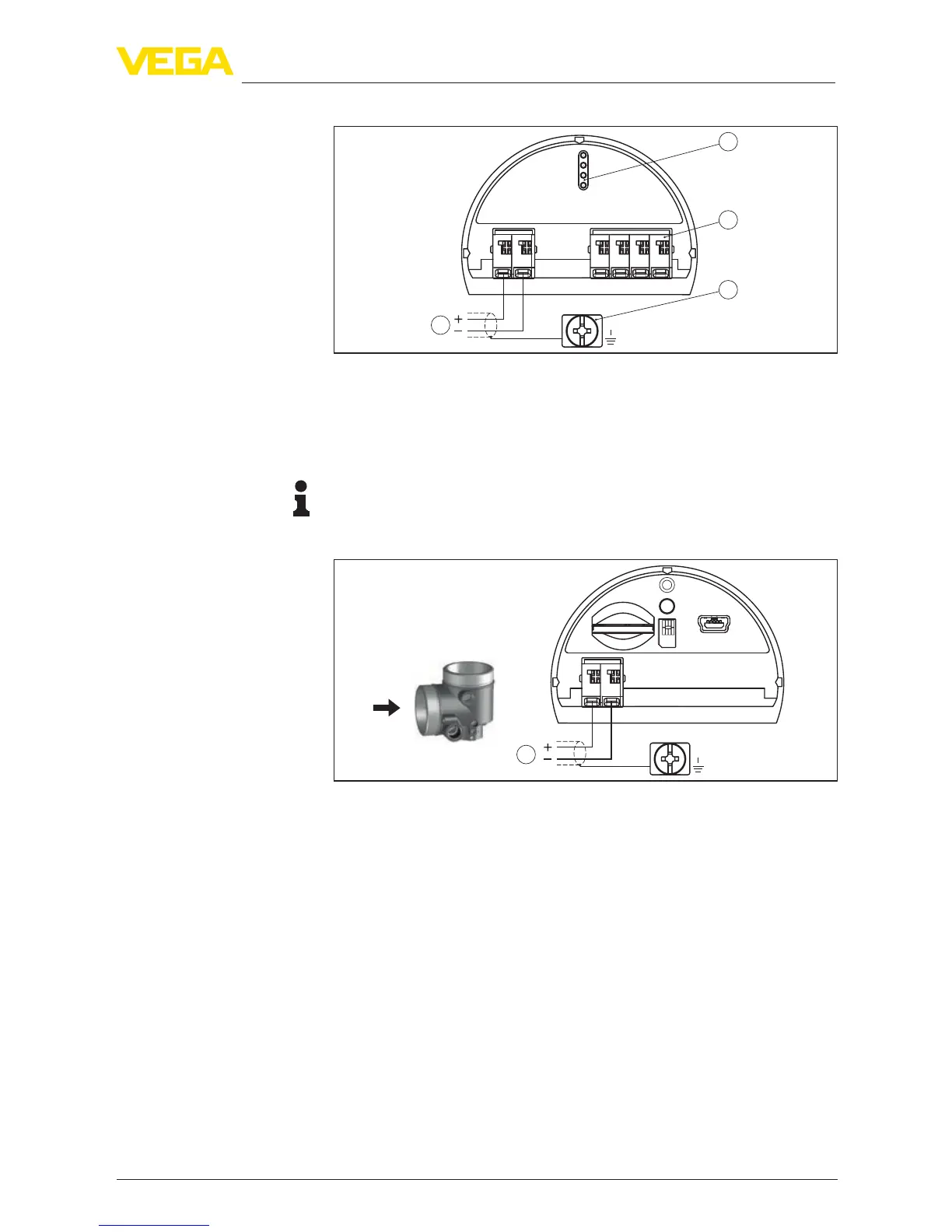

Fig.29:Terminalcompartment,doublechamberhousing
1 Voltage supply, signal output
2 For display and adjustment module or interface adapter
3 For external display and adjustment unit
4 Groundterminalforconnectionofthecablescreen
Information:
Parallel use of an external display and adjustment unit and a display
and adjustment module in the terminal compartment is not supported.
1
USB
Status
Te st
SIM-Card
1
2
+
( )
(-)
Fig.30:Terminalcompartment-RadiomodulePLICSMOBILE
1 Voltage supply
Youcannddetailedinformationonconnectioninthesupplementary
instructions "PLICSMOBILEGSM/GPRSradiomodule".
Terminal compartment
Terminal compartment
- Radio module PLICS-
MOBILE
