6 Set up with the display and adjustment module
VEGAPULS 69 • Foundation Fieldbus
47251-EN-160815
Info: Instrument name, hardware and software version, date of manu-
facture, device ID, instrument features
In the main menu item "Setup", the individual submenu items
should be selected one after the other and provided with the correct
parameters to ensure optimum adjustment of the measurement. The
procedure is described in the following.
In this menu item you select the distance unit and the temperature
unit.
For the distance units you can choose between m, in and ft and for
the temperature units °C, °F and K.
With this menu item, the sensor can be optimally adapted to the ap-
plication, the installation location or the measurement conditions. It
includes selection options for medium, application as well as vessel
height/measuring range.
Medium:
Everymediumhasadierentreectivebehaviour.Withthisselection,
the sensor can be perfectly adapted to the medium and measurement
reliability,particularlywithmediawithpoorreectiveproperties,is
considerably increased.
Application:
Depending on the type of bulk solids application, material cones and
additional echoes from the vessel wall or bottom can become further
interfering factors. Through this selection, the sensor is adapted
perfectly to the application.
Vessel height/Measuring range:
The VEGAPULS 69 is a bulk solids radar sensor for high, slender
vessels. It covers a measuring range up to 120 m. This menu item lets
you limit the active measuring range in which the instrument searches
for level echoes.

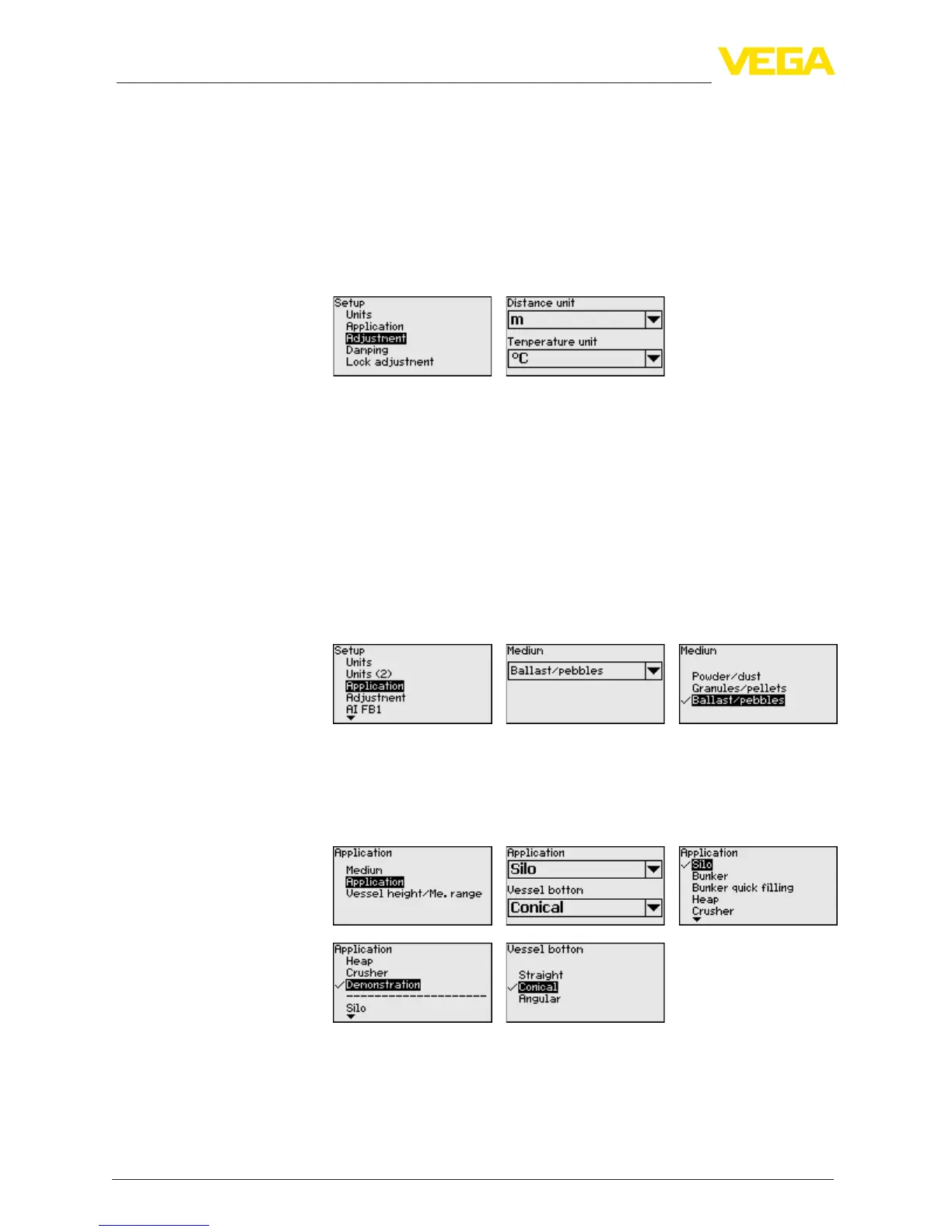

Setup - Units
Setup - Application
