Velleman Personal Scope HPS50 User Manual

12
HPS50 PersonalScope
TM

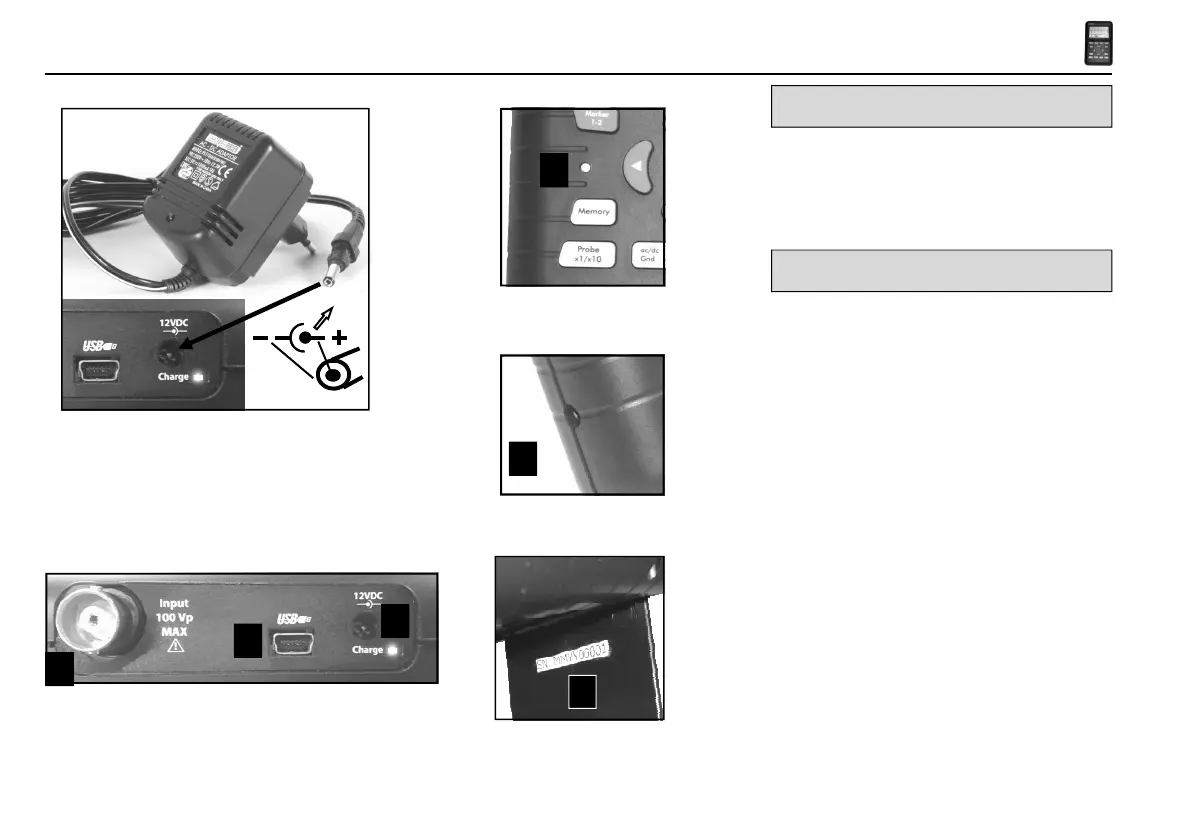

Power supply
Fig 8.0
The HPS50 Personal Scope can be powered by
means of the supplied adapter or with the
internal lithium Ion battery
(7,4V/1050mAh).
Fig 5.0
POWER SUPPLY
USE
Survey of the connections and controls
1. BNC input connector (max. input 100Vp
AC+DC).
2. Adapter connection (observe the polarity!)
3. USB output connector (galvanically separated)
Use the supplied USB cable
4. Reset push button
5. X10 probe testing signal
6. Serial number.
Fig 7.0
1
2
3
4
Fig 9.0
Fig 10
6
5
