71

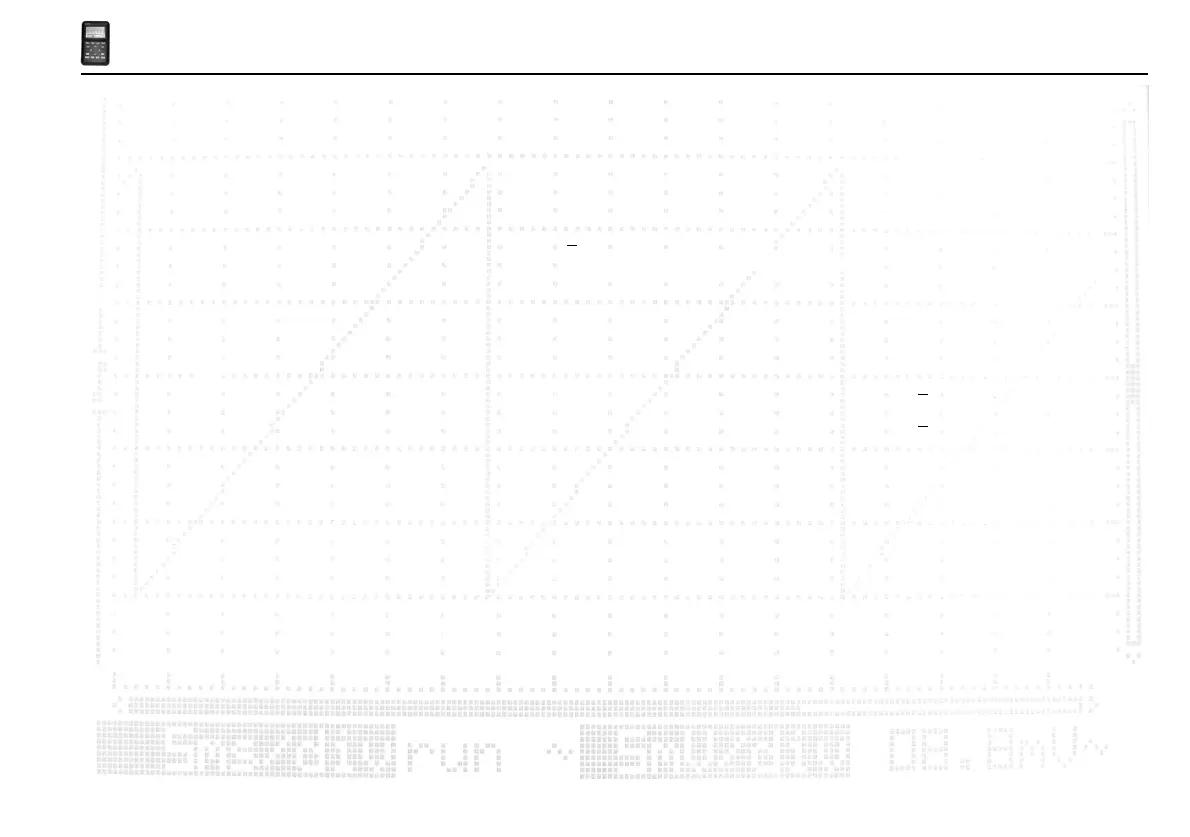

HPS50 PersonalScope
TM
Specifications
Maximum sample rate
40MS/s for repetitive signals (5MS/s for single shot events)
Input amplifier bandwidth (-3dB)
From 5MHz at 5mV/div to 12MHz at 50mV, 1V & 20V /div
Input impedance
1Mohm // 20pF (standard oscilloscope probe)
Maximum input voltage
100Vpeak (AC + DC), 200Vpeak-peak (AC only)
Input coupling
DC, AC and GND (GND for auto zero reference)
Vertical resolution
8 bit
+
1bit linearity
Trigger modes
Run, Normal, Once, Roll mode for 1s/div and slower timebase
Trigger level
Adjustable in 8 steps
LCD Graphics
112 x 192 pixels with LED backlight
Signal storage
256 samples with 2 memories, max. 179 samples visible (256 using X shift)
dBm measurement (0dBm= 0.775V in 600ohm)
From -73dB tot +40dB (up to 60dB with X10 probe)
+
0.5dB accuracy
dBV measurements (0dBV= 1V)
From -75dB tot +38dB (up to 58dB with X10 probe)
+
0.5dB accuracy
True-rms measurement
From 0.1mV to 80V (up to 400Vrms with X10 probe) 2.5% accuracy
Peak to peak AC sensitivity (sinewave ref.)
0.1mV to 160V (1mV to 1000V with x10 probe) 2% accuracy
Timebase range in 32 steps
50ns to 1hour / division
Input sensitivity range in 12 steps
5mV to 20V/division at X1- 50mV to 200V/div at X10
Probe calibration output
Approx. 2KHz / 4.5Vpp
Supply voltage
12VDC/500mA regulated adapter (included)
Batteries (included)
Lithium Ion battery 7,4V/1050mAh (order -LI-ION7V4)
Battery current (average)
190mA low intensity (backlight) - 220mA high intensity (backlight) - 600µA stand-
by
Operating temperature
0 to 50°C (32 to 122°F)
Fysical characteristics
Dim: 105x220x35mm (4.13x7.95x1.38”) Weight 450g (16oz.) ex. Batteries
