Velodyne HDL-64E S3 - Appendix A: Mechanical Drawings

HDL-64E S3
High Definition LiDAR Sensor
Page 22
Velodyne LiDAR, Inc.
©
2019
63-HDL64ES3 REV K
Appendix A: Mechanical Drawings

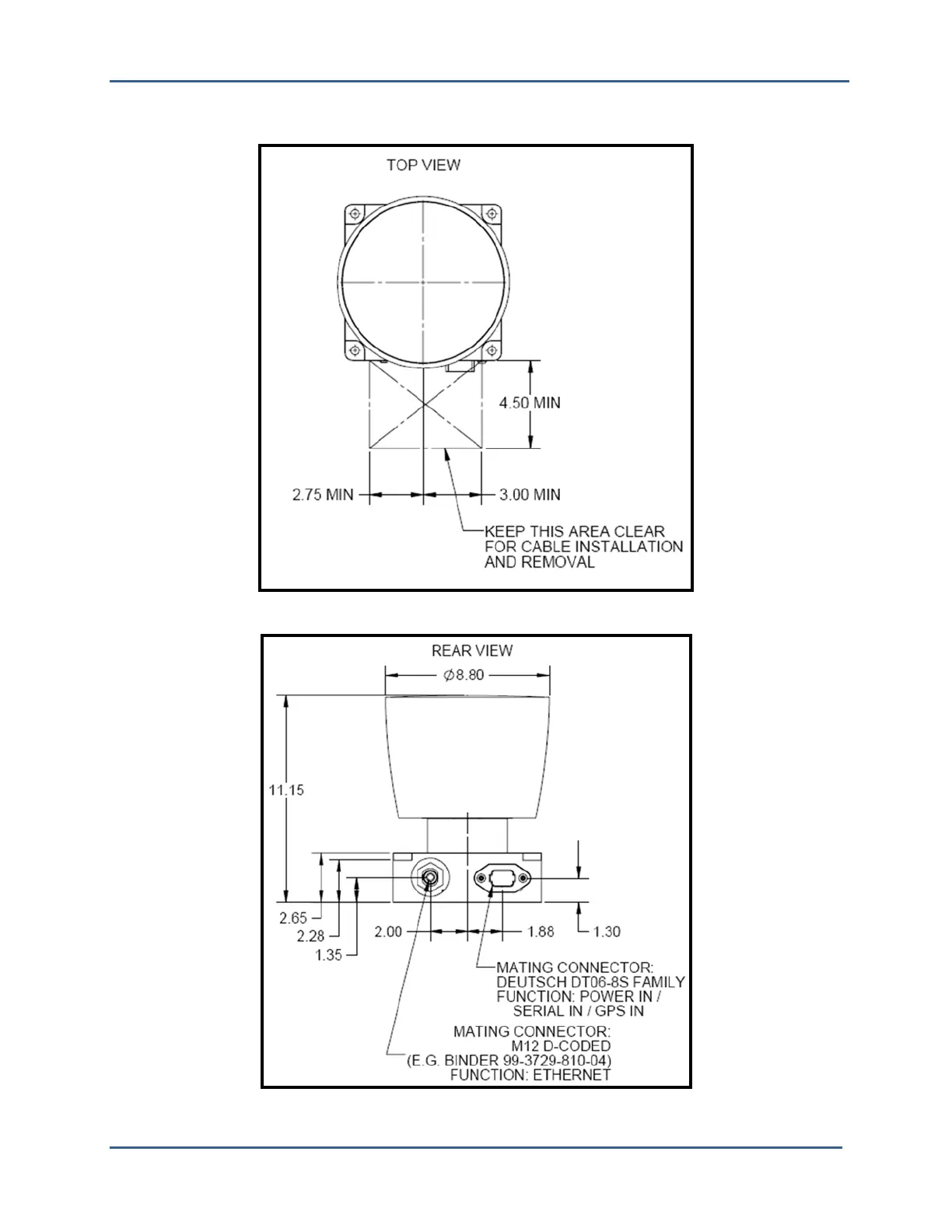

Figure 4: Top View
Figure 5: Rear Unit View
