SYSTEM FEATURES
HOME SCREEN

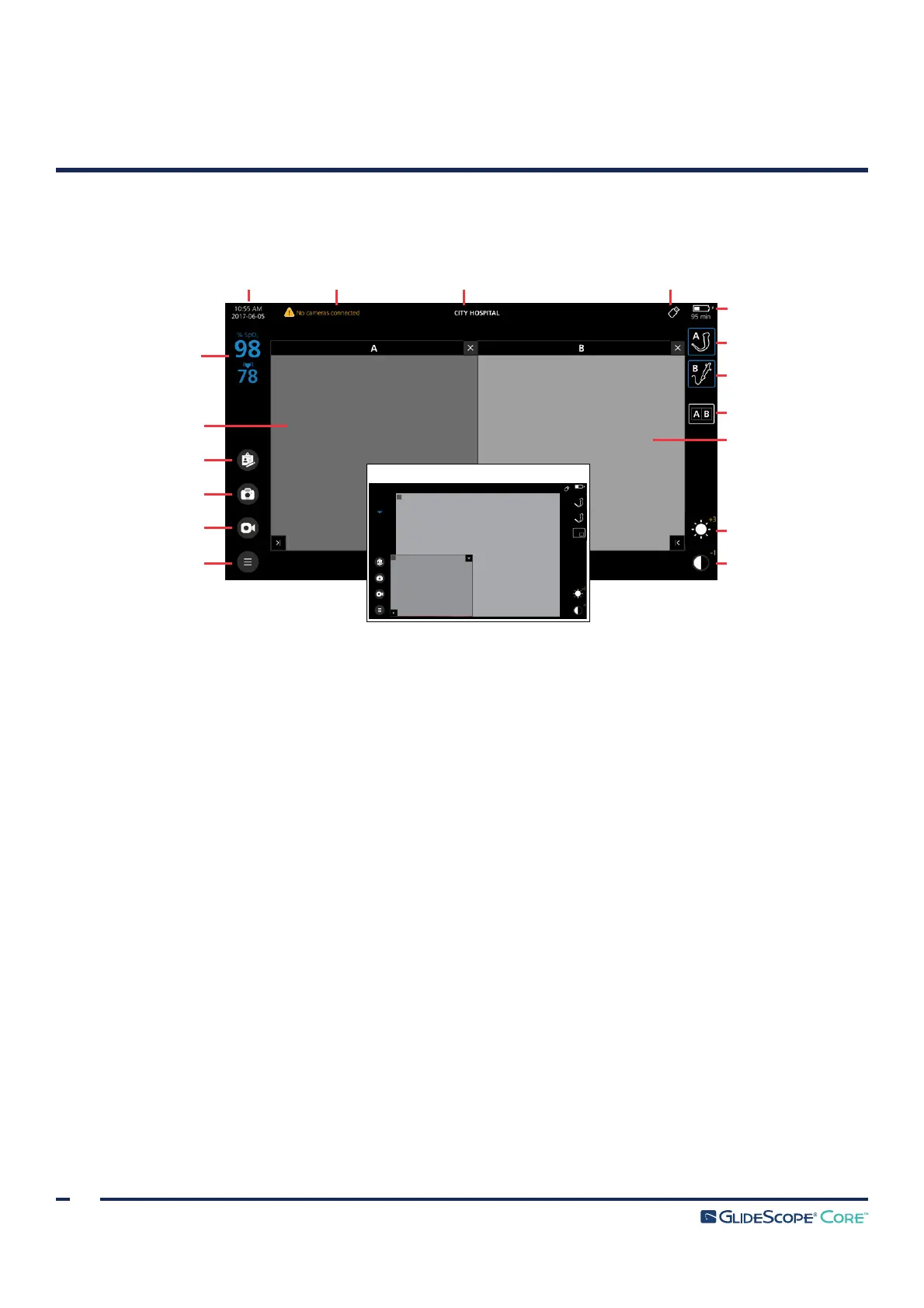

The Home screen
*
displays system information and provides access to several options and menus.
Device name USB device connected
Battery level indicator
Alert messagesDate and time
Video layout menu
†
Input B
†
Input A
†
Pulse Oximeter
readings
Patient notes
Snapshot
Record video
Main menu
Video Feed B
†
Brightness Control
Contrast Control
Video Feed A
2018-10-14 95 min
A
B
A
B
98
% SpO
2
78
CITY HOSPITAL
10:55
A
B
Core 10 Picture‑in‑Picture layout
STATUS BAR
The Status Bar runs along the top of the display. It is shown at all times and can provide the following
information depending on the current screen:
• Date and Time
• Alert messages
• Device name
• System or task status
• USB connection status
• Battery status and approximate time remaining
• Organization controls (Gallery)
• Favorites filter (Gallery)
LEFT BAR
The left bar provides access to the Main Menu, Patient Notes, and Snapshot buttons, and also the Record
Video button when it is enabled in the settings menu.
The monitor can also relay SpO
2
and pulse‑rate readings when a Nonin 3231 USB External Pulse Oximeter is
attached. The readings are displayed near the top of the bar.
Note: If a pulse oximeter is attached to the monitor and is not receiving information from a patient, two
dashes (‑‑) are shown instead of a reading.
* GlideScope Core 15 Dual View layout pictured.
† Only shown when two cameras are connected to monitor.
