Operations & Maintenance Manual: Setting Up
0900‑5017‑ETEE REV‑05
PROcEDURE 9. PERFORM A FUNcTIONAL cHEcK
Before you use the device for the first time, perform the following functional check to ensure that
the system is working properly. Please contact your Verathon
Customer Care representative if your system
does not function as described below.
1. Fully charge the monitor battery (this takes approximately 4hours).
2. Attach the video cable and scope to the monitor, according to the instructions in Attach the Video Cable
and Scope on page29.
3. Press the Power button. The monitor turns on.

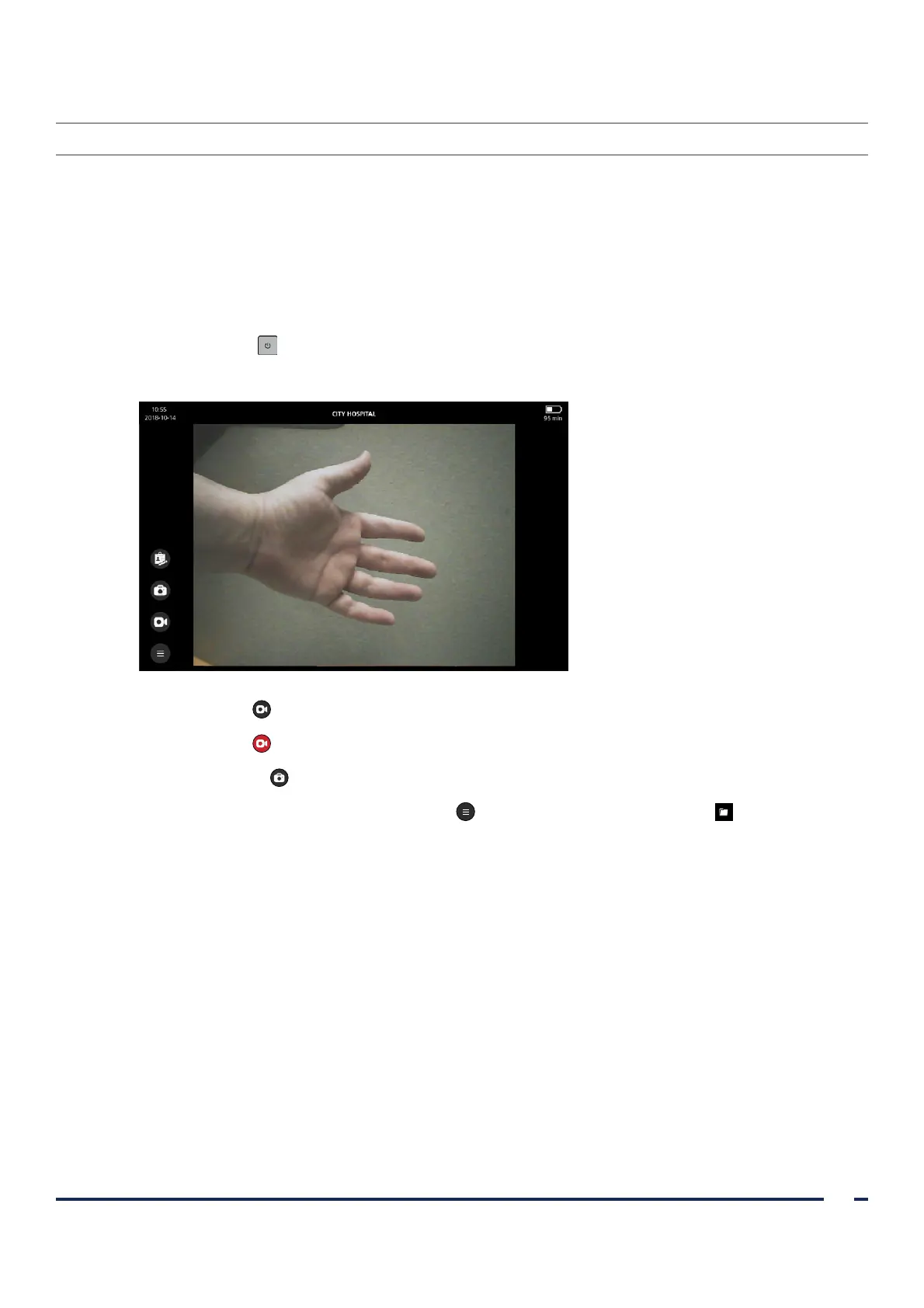

4. Look at the monitor screen, and verify that the image displayed is being received from the scope.
Note: There may be a slight blade
intrusion in the upper‑left corner of the
monitor, and a thin line may appear
along the top. These blade edges are
captured in the view because of the
wide‑angle camera lens used in the
video laryngoscope. This image acts as a
frame of reference during the intubation
process and ensures that the orientation
of the image is correct in the monitor.
5. Tap the Record button. The record button turns red to indicate the monitor has started recording.
6. Tap the Record button again. The recording stops.
7. Tap the Snapshot button. A snapshot of the video display area is taken.
8. From the Home screen, tap the Main Menu button, and then tap the Gallery button to verify
the video and snapshot successfully recorded. For more information on using the Gallery, see Use the
Gallery on page38.
