Operations & Maintenance Manual: Setting Up
0900‑5017‑ETEE REV‑05
PROcEDURE 6. ATTAcH THE VIDEO cABLE AND ScOPE
The video cable attaches the scope to the monitor, supplying power to the scope and transmitting video data
from the camera to the monitor.
This procedure provides basic instruction on connecting compatible video cables and scopes to the monitor.
For detailed information about cables and scopes, refer to one of the following manuals or contact Verathon
Customer Care:
• GlideScope Video Laryngoscopes Operations & Maintenance Manual (part number 0900‑4940)
• GlideScope BFlex Single‑Use Bronchoscopes Operations & Maintenance Manual (part number
0900‑4939)

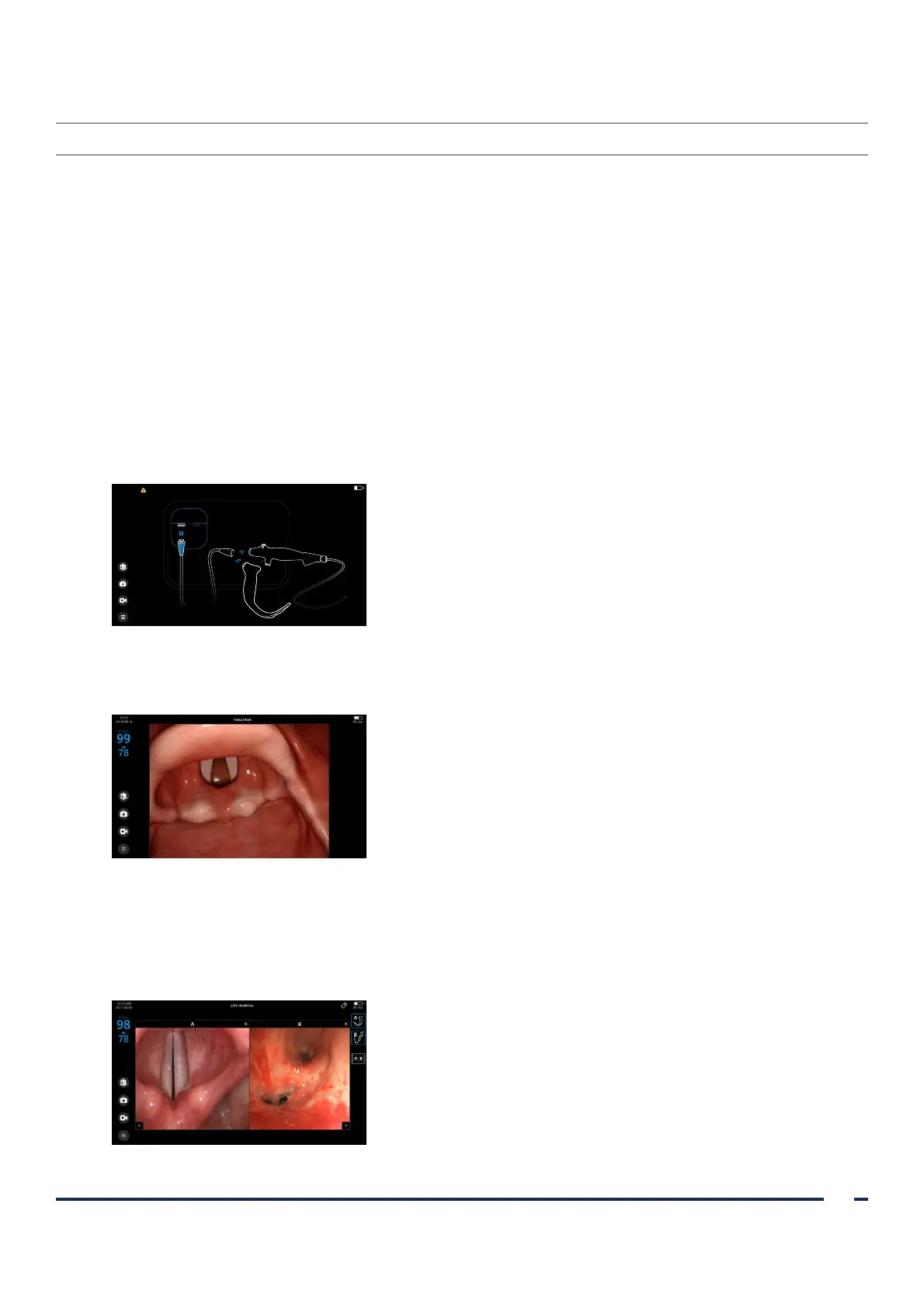

The following images show the initial video layouts when one or two scopes are connected to the monitor.
To change the layout after the scopes are connected, see Adjust Video Layout on page36.
If the monitor doesn’t detect an attached scope, the following image displays. Once a scope is connected,
the video from the camera will be displayed on the screen.
10:55 AM
2017-06-05
95 min
No cameras connected.
A B
10:55 AM
2017-06-05 95 min
No cameras connected.
A B
95 min
Regardless of the video input being used, when a single scope is connected to the monitor, the video feed
displays in the center.
When connecting two scopes to a Core 15 monitor, the video feeds are displayed side‑by‑side using the
GlideScope Core Dual View function.
If a video laryngoscope is already connected to the monitor and a bronchoscope is connected second,
regardless of the input used, the bronchoscope’s video feed displays on the right.
