Verathon GlideScope Core Service Manual

30
0900‑5017‑ETEE REV‑05

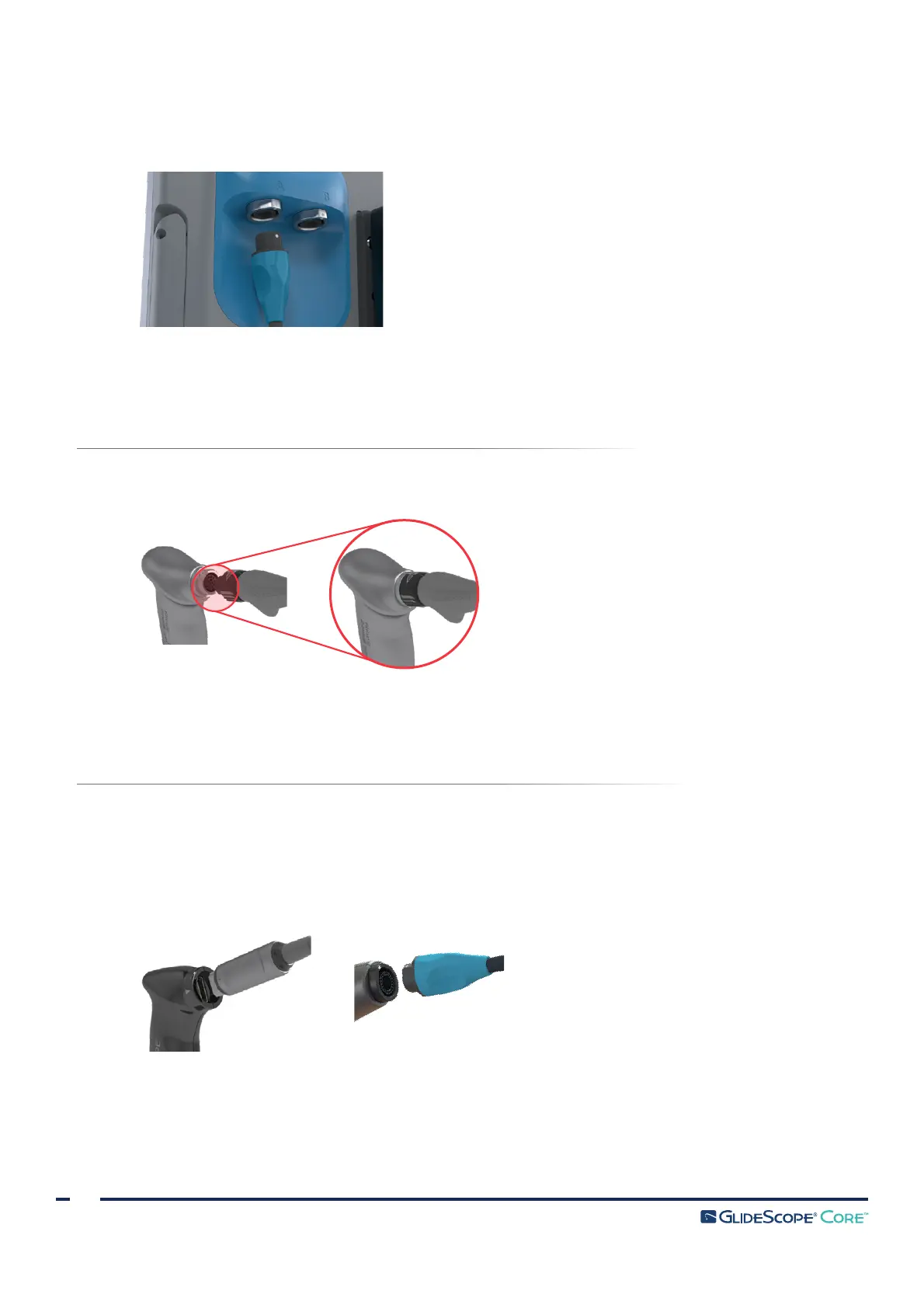

1. Align the dot on the cable connector to the dot on the monitor’s A or B video connector, and then fully
insert the cable. The connector attaches to the monitor.
2. To disconnect the video cable, hold the cable connector in one hand and support the monitor with the
other, and then pull. The cable disconnects from the monitor.
OPTION 1. GLIDESCOPE CORE VIDEO CABLE
1. Bring into line the alignment marks on the video cable and scope connectors, and then fully insert the
video cable into the scope connector port. You will hear a click when the cable is successfully connected.
2. To disconnect the scope from the video cable, hold the scope in one hand, twist the cable’s locking collar
in the direction specified by the arrow on the collar, and then pull. The scope disconnects from the cable.
OPTION 2. SMART AND QUICKCONNECT CABLES
It is recommended that you leave single‑use accessories in their packaging while connecting the cable and
that you do not remove it until you are ready to perform the procedure. This helps ensure that the blade
remains as clean as possible until you are ready to use it.
1. Bring into line the alignment marks on the video cable and scope connectors, and then fully insert the
video cable into the scope connector port.
2. To disconnect the scope from the video cable, hold the cable connector in one hand and the scope’s
body in the other, and then pull. The video component disconnects from the cable.
