VeriFone P630 - RS-232 Connection Using an External Power Brick

Installation Guide P630
26
© Verifone Inc. All rights reserved.

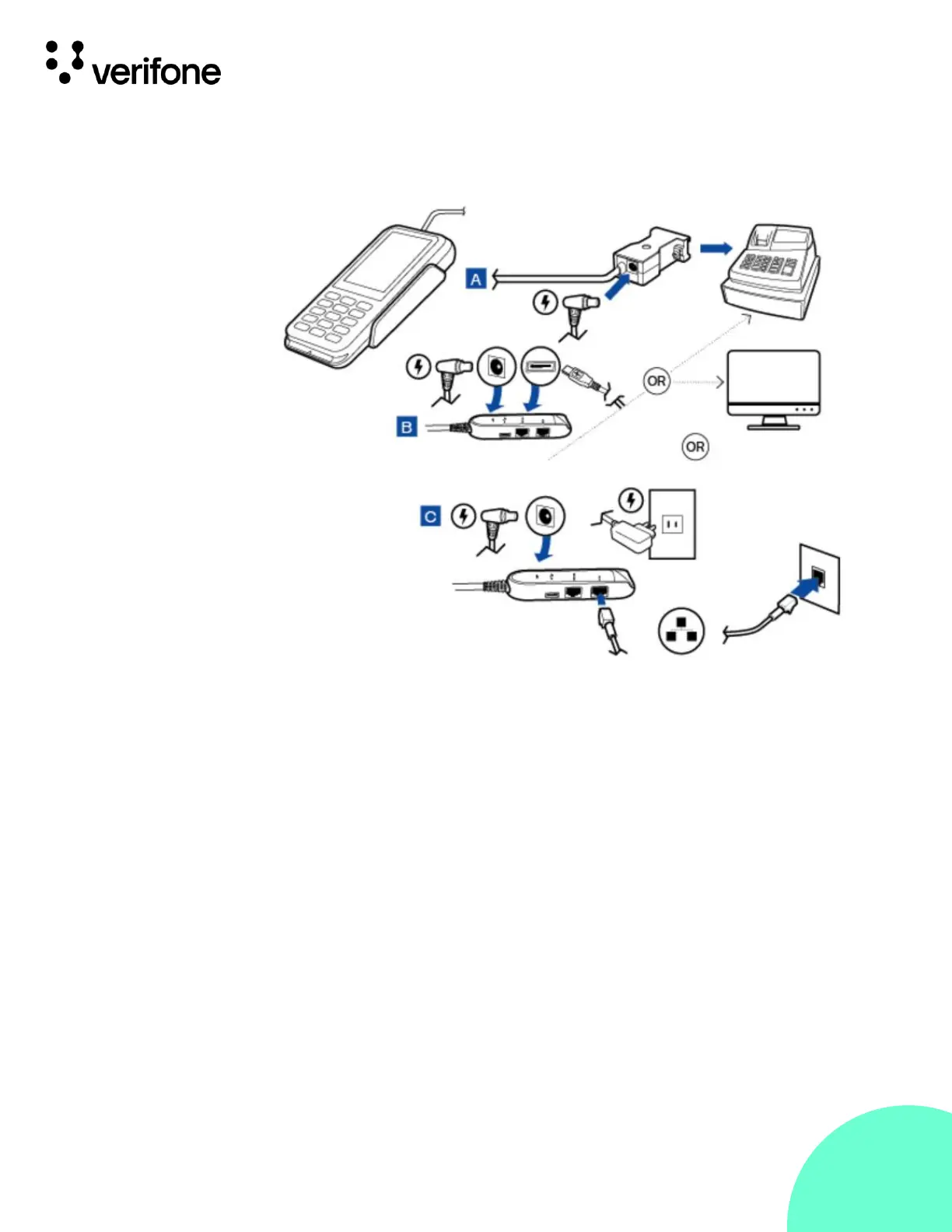

Figure 6:
Connecting P630
to an External
Device
RS-232
Connection
Using an
External
Power Brick
A special dongle cable is used, where one end of the cable plugs into the P630
while the other end terminates into the DB-9 connector housing. On the housing,
a DC jack is provided to connect to an external power brick. This is a generic
cable for all RS232-based hosts (VPN - CBL282-031-XX-A).
