VeriFone P630 - Ethernet Connection with External Power Brick

Installation Guide P630
27
© Verifone Inc. All rights reserved.

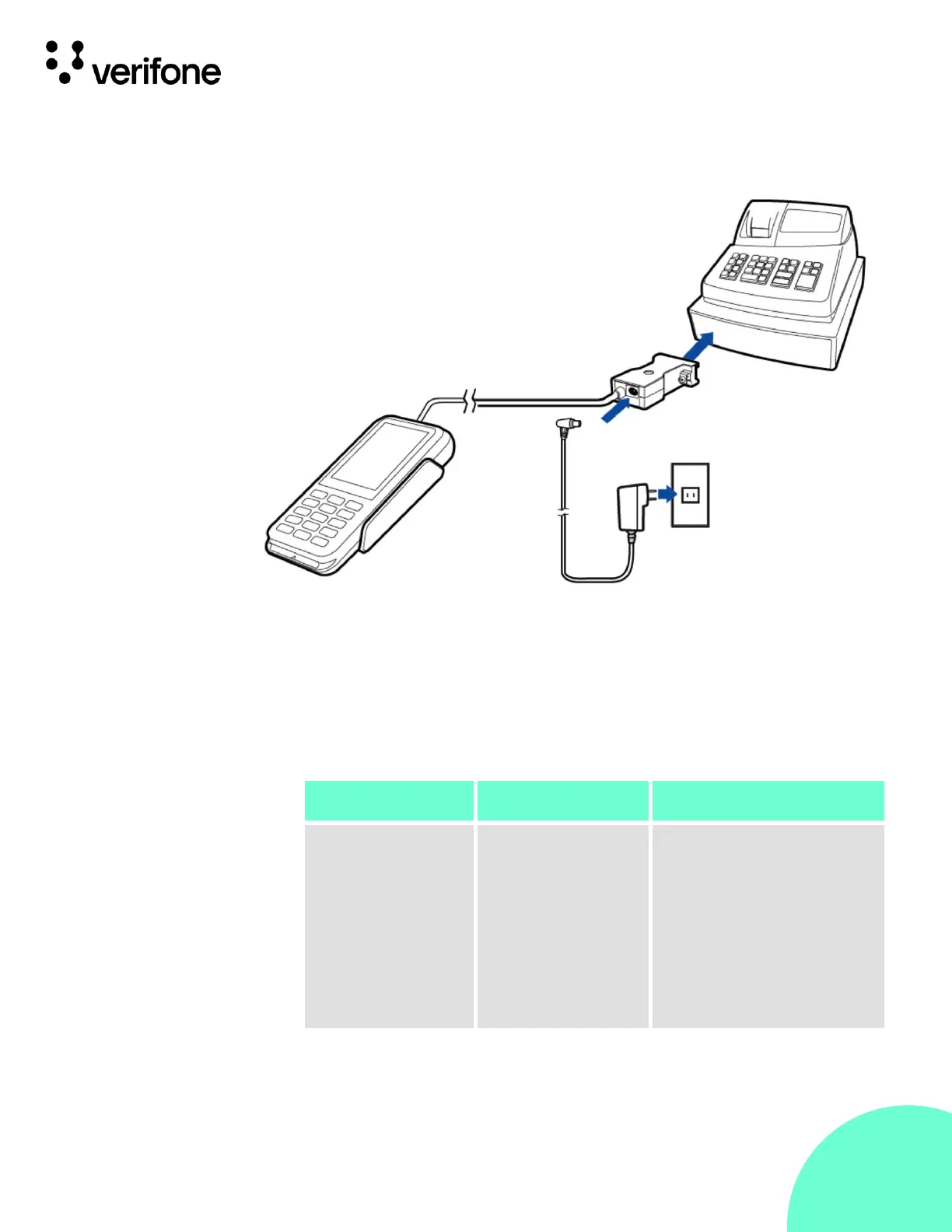

Figure 7:
Connecting to
RS232-Based
Host
Ethernet
Connection
with
External
Power
Brick
To connect the terminal to other devices via Ethernet, use the cable with a
junction box that provides a standard RJ-45 LAN socket, a mini-USB port,
and a standard DC jack for an external power connection.
The junction box comes in these congurations:
Cable
Conguration
Part Number
Countertop
without stand
Junction box with
RJ-45 socket (for
connecting the
device to LAN
infrastructure),
MOD-8 socket for
RS232 & DC-in
jack
CBL282-006-01-B
