Installation Guide P630
28
© Verifone Inc. All rights reserved.
Ethernet with
RS232 and Mini-
USB option
Junction box with
RJ-45 socket (for
connecting the
device to LAN
infrastructure),
MOD-8 socket for
RS232, Mini USB
& DC-in jack
CBL435-005-02-A
Ethernet with
RS232 and USB
option
Junction box with
RJ-45 socket (for
connecting the
device to LAN
infrastructure),
MOD-8 socket for
RS232, Mini USB,
type A USB & DC-
in jack
CBL435-044-01-A

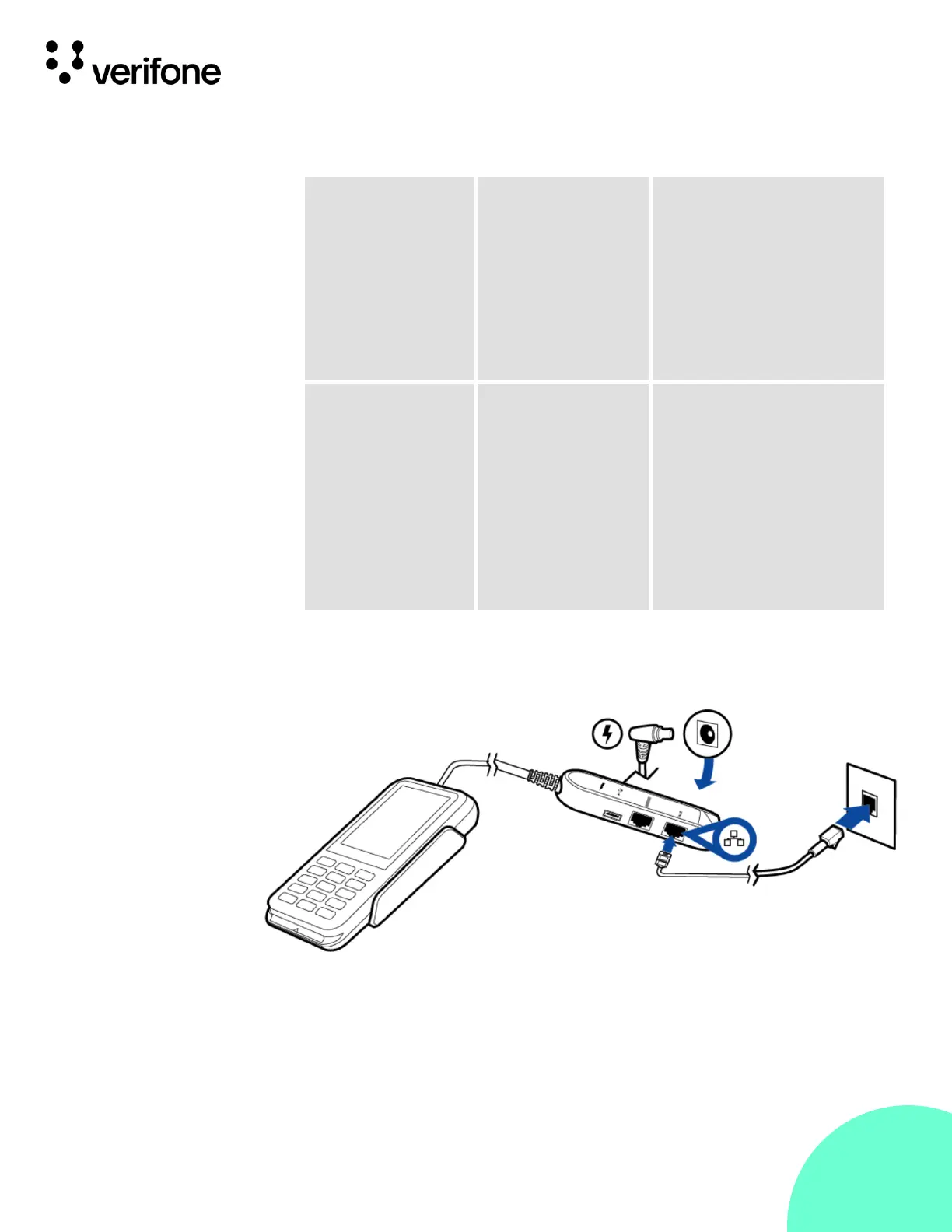

The gure below shows the connections available on the external power
brick
Figure 8:
Available
Connections
on the External
Power Brick
