Installation Guide
T650T
To Connect the
Terminal to a PC
Insert the RS-232 cable to the T650T de
vice and to the PC (Personal Computer).

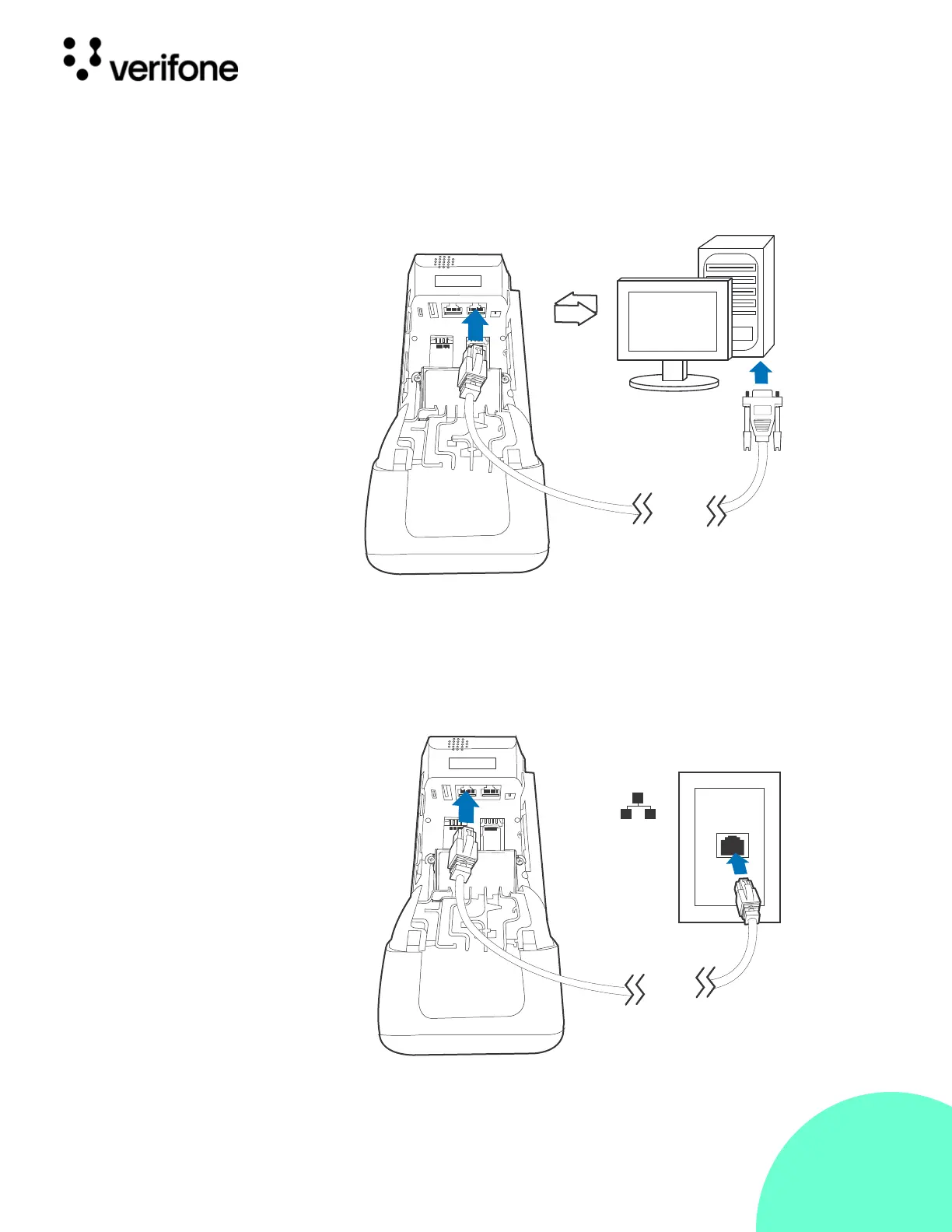

Figure: 8
Connecting
to a PC
To Connect the
Device to the
LAN
Insert the Ethernet cable to the T650T device and to the socket.
Figure: 9
Connecting
Ethernet Port
23
25
Table of Contents
T650T Installation Guide
1
Contents
3
Preface
6
Audience
6
Organization
6
Related Documentation
6
Conventions
7
1. Device Overview
8
Processor
9
Keypad
9
Payment
9
Multimedia
9
Communication
9
Physical Interface
10
Security
10
SIM/SAM
10
Card Reader
10
Printer
10
LEDs
11
Camera/ Barcode Scan
11
Features and Benefits
11
Ease of Use
11
Performance and Durability
11
Security
11
Contactless Capability
12
Communication Technology
12
Connectivity
12
2. Device Setup
13
Environmental Factors
13
Contactless Considerations
13
PIN Protection Measures
14
Inside the Shipping Carton
14
Unpacking the Shipping Carton
14
Periodic Inspection
15
Device Features
16
Front Panel
16
Connection Ports
16
Connecting Cables and Other Devices
16
SAM CARD
18
Removing the Battery Cover
18
Installing or Replacing SIM/SAM Card
18
Initial Battery Charging
19
Starting Up and Shutting Down
19
Using the Battery
20
Battery Life
21
Charging the Battery
21
Charging via the Power Pack
22
Charging with the Folio
22
Examining Connection Port
23
To Connect the Terminal Power Supply
23
To Connect the Terminal to a PC
24
To Connect the Device to the LAN
24
To Connect the Device to the External PINpad
25
To Connect the Device to the USB port
25
Manual Startup
25
Manual Shutdown
26
Loading a Paper Roll in Device
26
To Install a Paper Roll
26
Using the Smart Card Reader
27
To Conduct a Smart Card Transaction
28
Using the Magnetic Card Reader
28
Using a Smart Card Reader - Debit or Credit Card Transaction
28
CTLS Transaction
29
Camera/QR Code Reader
29
Wi-Fi/BT Support
29
Bluetooth Support
29
Wireless Transaction
29
External and Optional Devices
30
3. Specifications
31
Power Rating
31
Temperature
31
Humidity
31
External Dimensions
31
Weight
31
Audio Jack
31
Memory
31
Magnetic Card Reader
31
Smart Card Reader
32
SAM Card Reader
32
Integrated Contactless Reader
32
Display
32
Printer
32
Camera/ Barcode Scan
32
4. Maintenance and Cleaning
33
General Care
33
Cleaning & Sanitizing Guidelines
33
Cleaning Instructions
34
5. Service and Support
35
Returning a Device for Service
35
6. Accessories and Cables
37
Verifone Certified Power Adapter
37
Verifone MSR Cleaning Kit
37
7. Troubleshooting Guidelines
38
Device Does not Start/Does not Display Correct Readable Information
39
Blank Display
39
Keypad Does Not Respond
39
Transactions Fail to Process
39
Checking Magnetic Card Reader
39
Checking Smart Card Reader
40
Checking CTLS Reader
40
Contact Verifone
41
