Vertiv Liebert CR012 - Fan Set; Comp Set; EEV Set

Liebert CR012 Precision Air Conditioning User Manual
Chapter 3 Micro-Controller 45

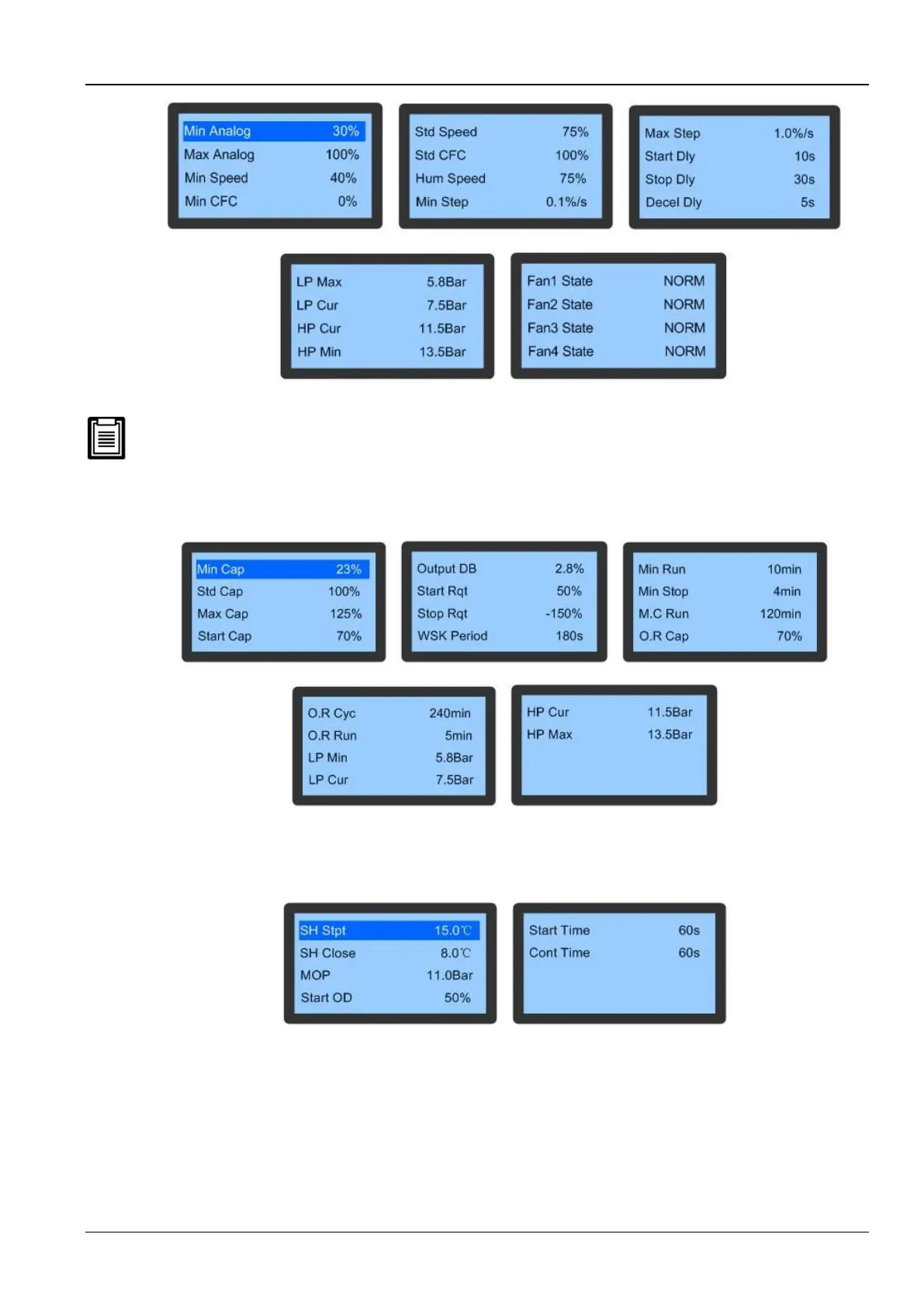

Figure 3-27 Fan Settings
Fan 1 State – Fan 4 State are read-only values. On selecting 35 kW, only the Fan 1 State and Fan 2 State will be
displayed.
Comp Set
The Comp Set screen is depicted in Figure 3-28.
Figure 3-28 Comp Set items
EEV Set
The EEV Set screen is depicted in Figure 3-29.
Figure 3-29 EEV Settings
Manual Mode
The Manual Mode helps set the parameters of certain components while a few settings cannot be altered as they are
only read-only attributes.
